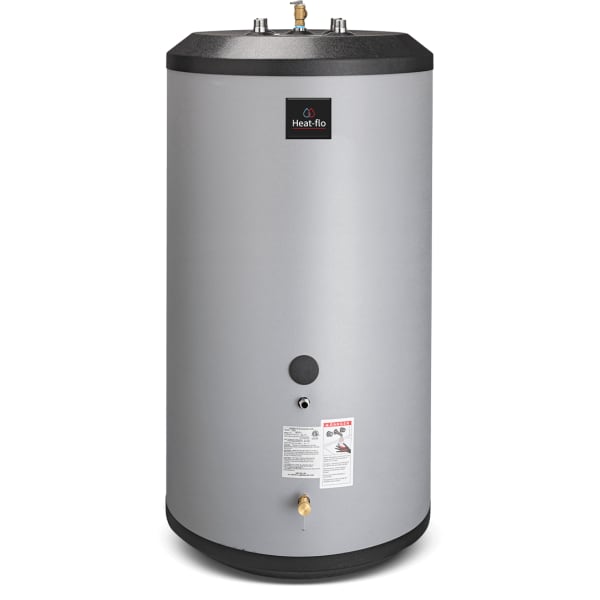

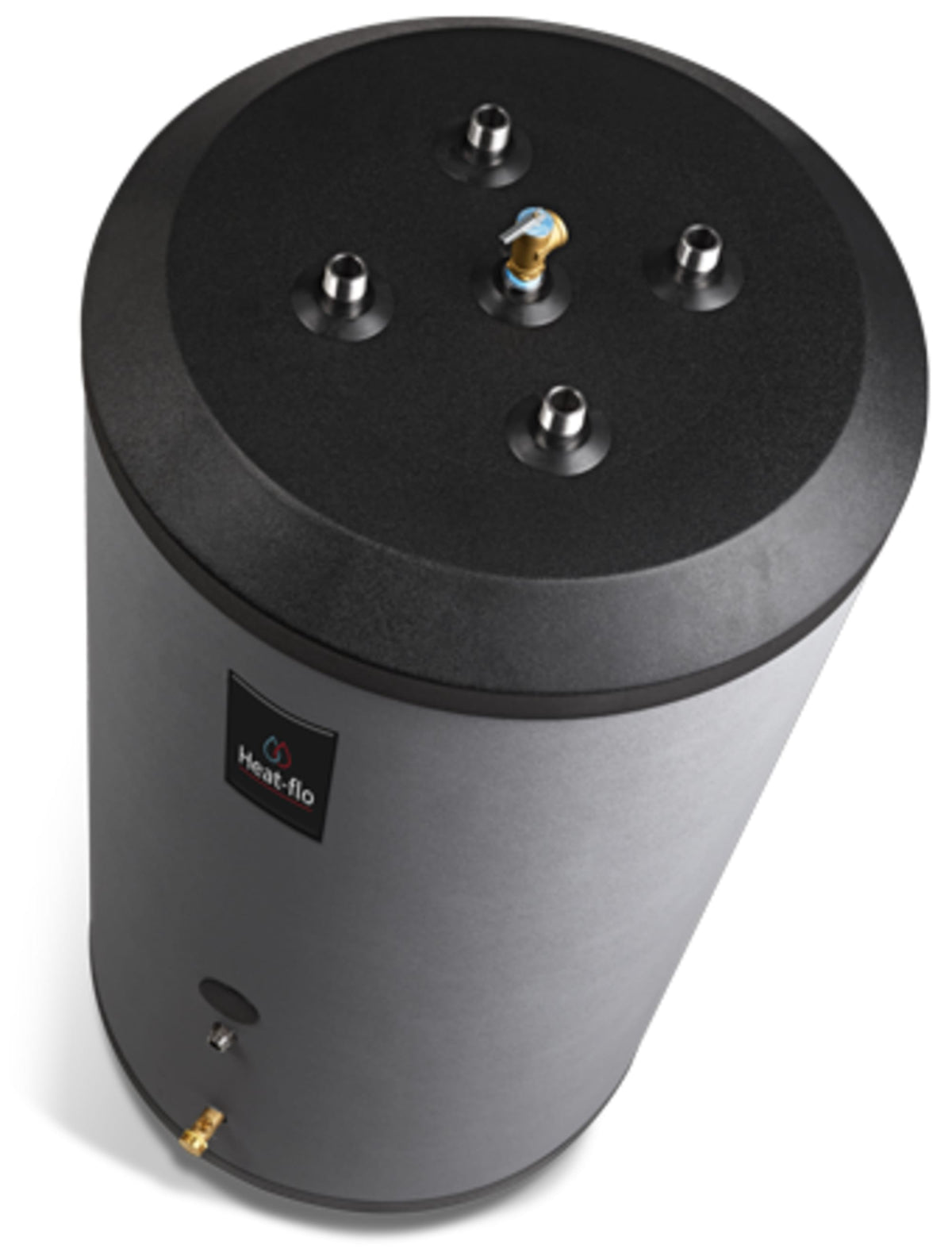

HF-30 30 Gal Indirect Tank with Top Connections
- Part #
- HF-30
$1,975.76
Available · ships in 1–2 business days
Free shipping to the contiguous US. No minimum.
Delivery estimate
- Order
- Ships
- Arrives
Estimate for ground shipping within the contiguous US.
Gas, electrical and venting work should be done by a licensed professional.
- 30-day returnsWithin 30 days, in the original packaging
- Help from real peopleCall or email us before or after you order
- Secure checkoutCard details never touch our servers
Product details
HF-30 — 30 Gal Indirect Tank with Top Connections.
Indirect-fired water heaters and storage tanks heated by a boiler loop, plus plate heat exchangers for separating systems.
Specifications
| Part Number | HF-30 |
|---|---|
| Model | HF-30 |
| Type | Indirect water heater (boiler-heated) |
| Storage volume | 30 gal |
| Coil heating surface | 7.3 sq ft |
| Height x diameter | 35.8 in. x 23.5 in. |
| Domestic water connections | 3/4" NPT in/out |
| Boiler water connections | 1" NPT in/out |
| Max. tank working pressure | 150 psi |
| Max. coil working pressure | 90 psi |
| First hour rating* | 176 gal/hr at 140°F; 233 gal/hr at 115°F |
| Continuous rating* | 149 gal/hr at 140°F; 206 gal/hr at 115°F |
| Boiler output needed* | 111,560 BTU/hr |
| Boiler flow through coil* | 14 GPM (5.3 ft pressure drop) |
| Listings | Conforms to UL 174 and NSF/ANSI 372; certified to CAN/CSA C22.2 No. 110-94 |
Ratings & details
- Stainless steel tank and coil
- Brass drain and relief valves factory installed
