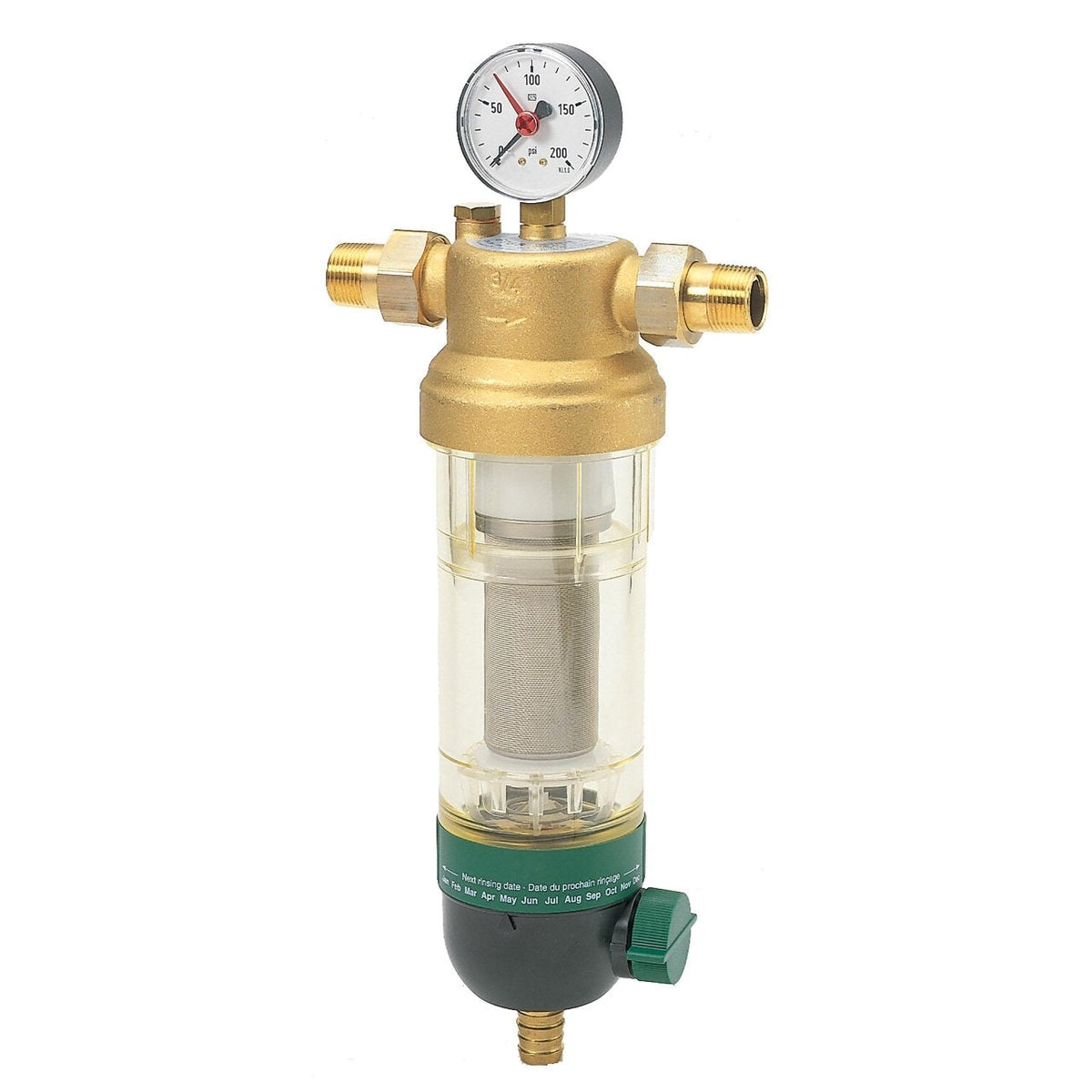

F76S1031 Water Filter, 1-1/4 in, 100 Micron, Sweat and Threaded MNPT Unions
- Part #
- F76S1031
- UPC
- 085267819060
- Type
- Water Filters
$511.86
Available · ships in 1–2 business days
Free shipping to the contiguous US. No minimum.
Delivery estimate
- Order
- Ships
- Arrives
Estimate for ground shipping within the contiguous US.
- Size
- 1 1/4 in
- Material
- Brass, Dezincification Resistant
- Connection
- External Thread
- Finish
- Metallic, Clear
Full specifications 2 manufacturer documents
- 30-day returnsWithin 30 days, in the original packaging
- Help from real peopleCall or email us before or after you order
- Secure checkoutCard details never touch our servers
Product details
F76S1031 — Water Filter, 1-1/4 in, 100 Micron, Sweat and Threaded MNPT Unions.
Under-sink and whole-house water filters, replacement cartridges, water softeners and pressure tanks for private wells.
Specifications
| Part Number | F76S1031 |
|---|---|
| Application | Point of Entry Water Filter |
| Pipe Size | 1 1/4 in |
| Controlled Media | Drinking Water |
| Connection Size | 1 1/4 in |
| Connection Type | External Thread |
| Filter Mesh Size | 100 microns, Available Kits f20 |

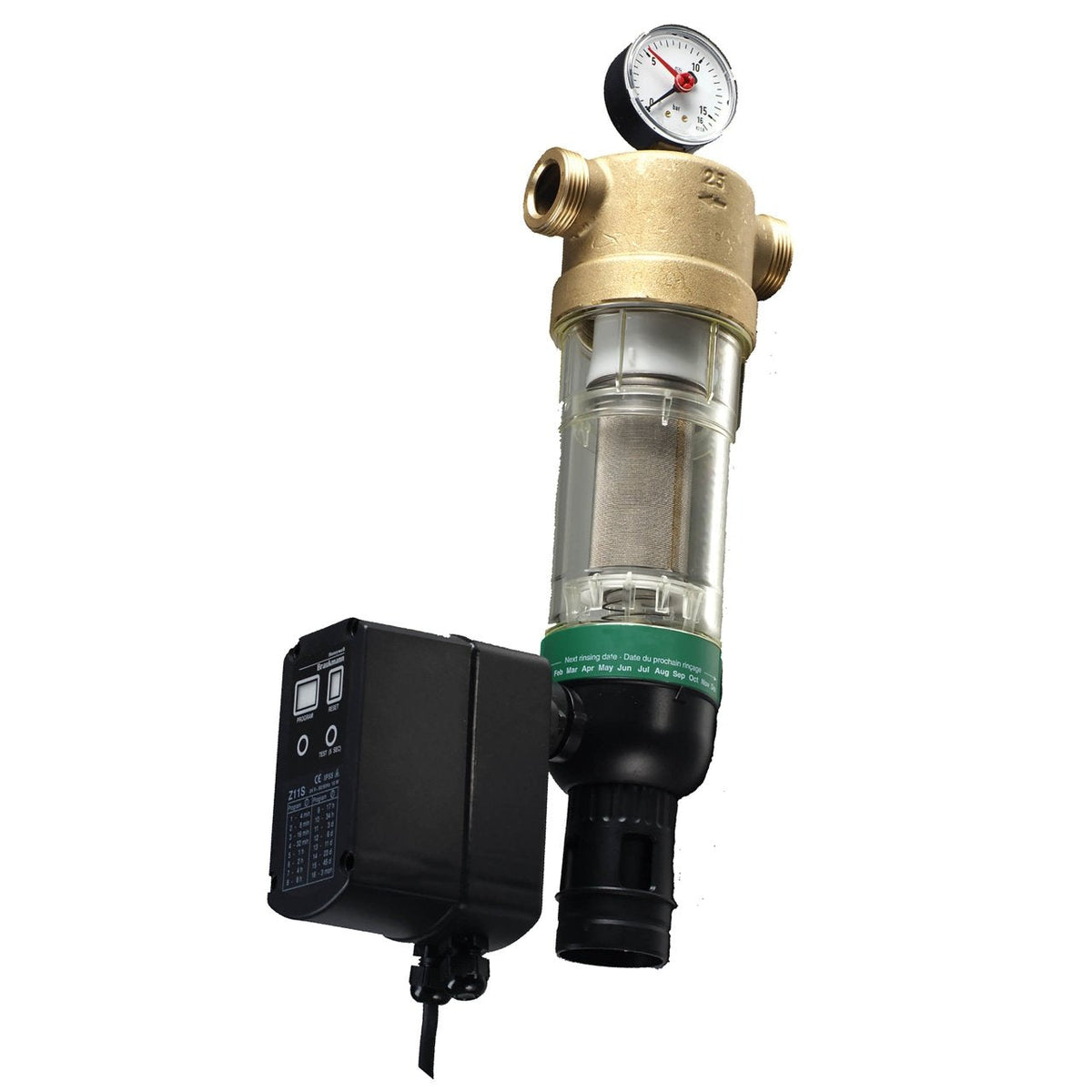

| For Use With | MV876B1018 Bayonet mounted automatic backwash control |
| Includes | Gauge, Service Wrench |
| Color | Metallic, Clear |
| Filter Type | Reverse Rinsing |
| Inlet Pressure (Min) | 1.5 bar |
| Compatible With | Residential or light Commercial Systems |
| Reverse Rinsing with Filtered Water | Yes |
| Display | Pressure Gauge |
| Strainer Included | Yes |
| Mounting Position | horizontal |
| Environment Conditions | Clean, Dry, Dust-free |
| Ambient Operating Temperature (Max) | 104 °F, 40 °C |
| Ambient Relative Humidity (Max) | 0.85 |
| Ambient Relative Humidity (Min) | 0.25 |
| Body Material | Brass, Dezincification Resistant |
| Sump Material | Engineered Plastic, Bronze sump available |
| Filter Mesh Material | Stainless Steel |
| Seal Material | NBR |
| Product Height | 17.88 in, 454.03 mm |
| Product Weight | 3.3 kg, 7.3 lb |
| Product Width | 8.75 in, 222.25 mm |
| UPC | 085267819060 |
| Country of Origin | DE |
