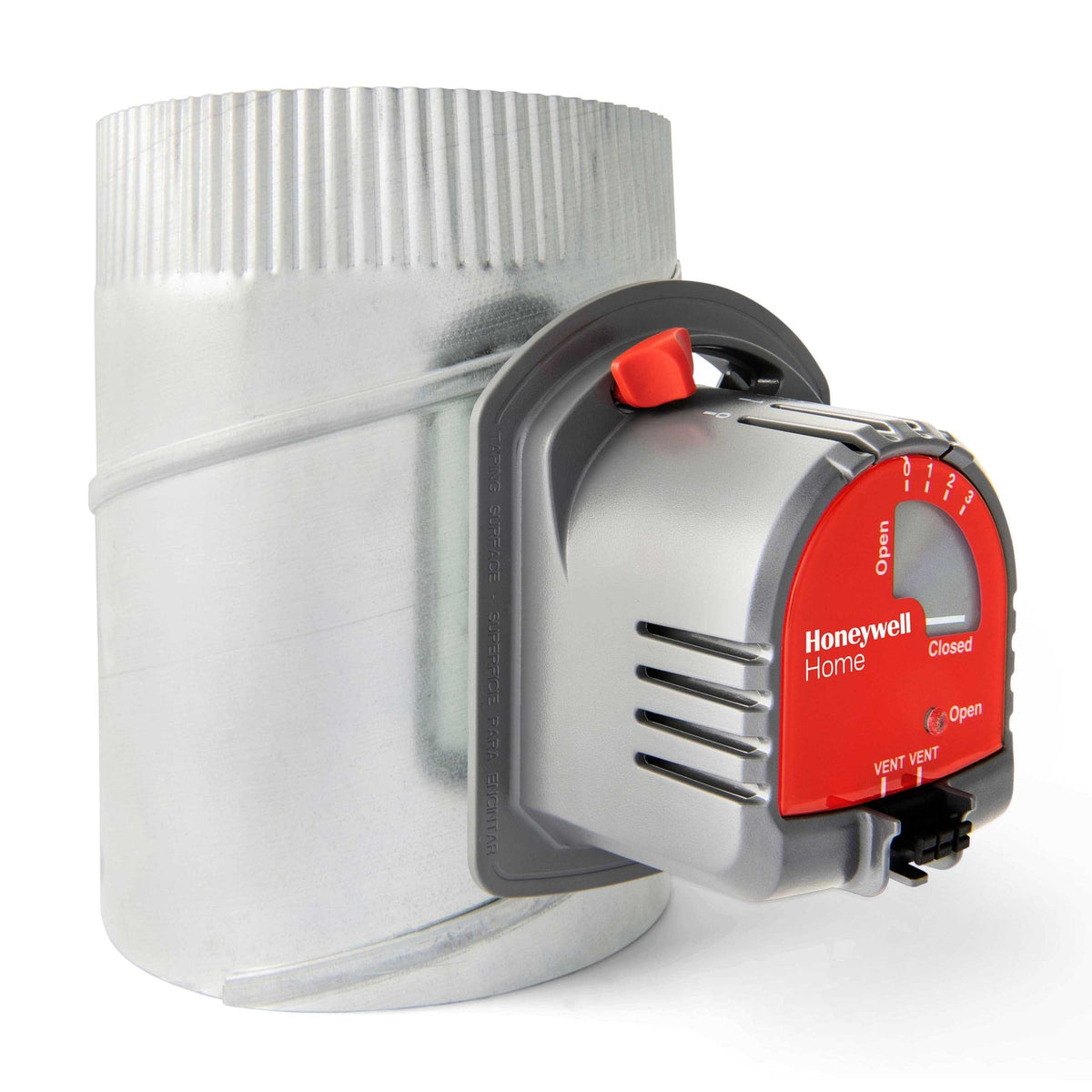

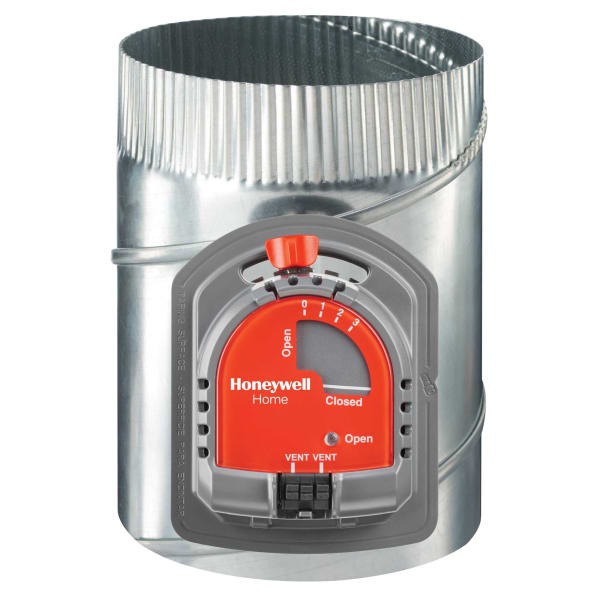

EARD8TZ/U 8 in Round Fresh Air Damper
EARD8TZ/U 8 in Round Fresh Air Damper
EARD8TZ/U 8 in Round Fresh Air Damper

EARD8TZ/U 8 in Round Fresh Air Damper

Part #
EARD8TZ/U
UPC
085267728270
$174.61

Available · ships in 1–2 business days

Free shipping to the contiguous US. No minimum.

Size
8 in diameter
Finish
Metallic

Full specifications 6 manufacturer documents

Gas, electrical and venting work should be done by a licensed professional.

  • 30-day returnsWithin 30 days, in the original packaging
  • Help from real peopleCall or email us before or after you order
  • Secure checkoutCard details never touch our servers
Need help matching a part?Call +1 (219) 319-0174 · Mon–Fri, 8 am – 5 pm ET

Product details

EARD8TZ/U — 8 in Round Fresh Air Damper.

Motorized and bypass dampers with zone panels that divide a forced-air system into independently controlled zones.

Specifications

Part Number EARD8TZ/U
Type Motorized fresh air damper
Size 8 in diameter
Shape Round
Voltage 24 V
Actuator mounting Side or Top
Motor Power open, spring closed
Used with Ventilation Systems
UPC 085267728270
Damper Duct Shape Type Round
Damper Type Zone
Application Ventilation Damper
Damper Material Galvanized Steel
Manufacturer Warranty 5 Years
Color Metallic
Activation Electric
Actuator Housing Material Molded Plastic
Actuator Power Consumption 8 VA
Actuator Torque 71 in-oz
Blade Material Galvanized Steel
Leakage Less than 1% at 0.5 in WC
Position Indicator Included Yes
Position Indicator Type Damper Position Range Stops, LED indication light for open and close
Range Stop Yes
Range Stop Options 4
Actuator Frequency 60 Hz
Airflow (Max) 160 CFM
Airflow (Min) 50 CFM
