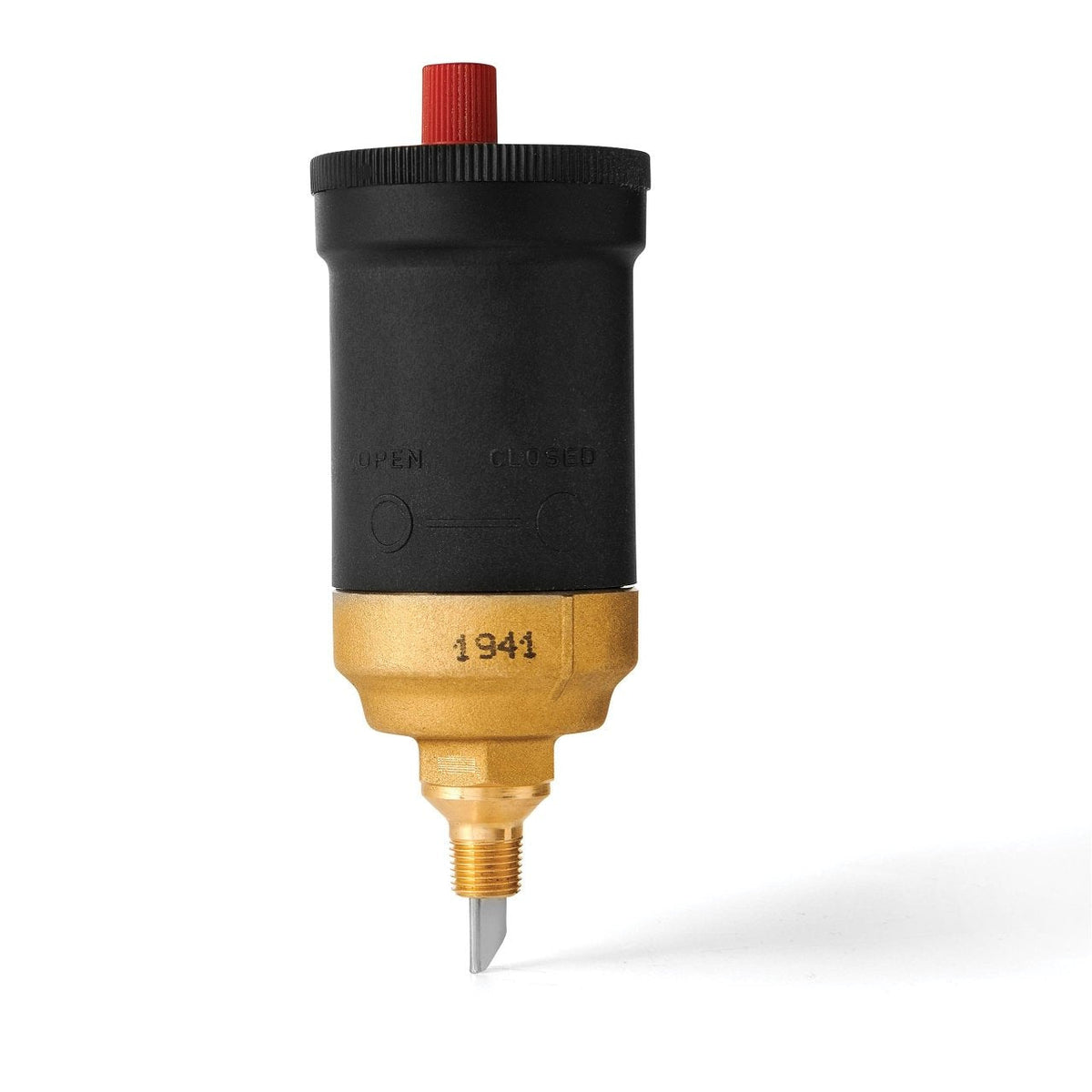

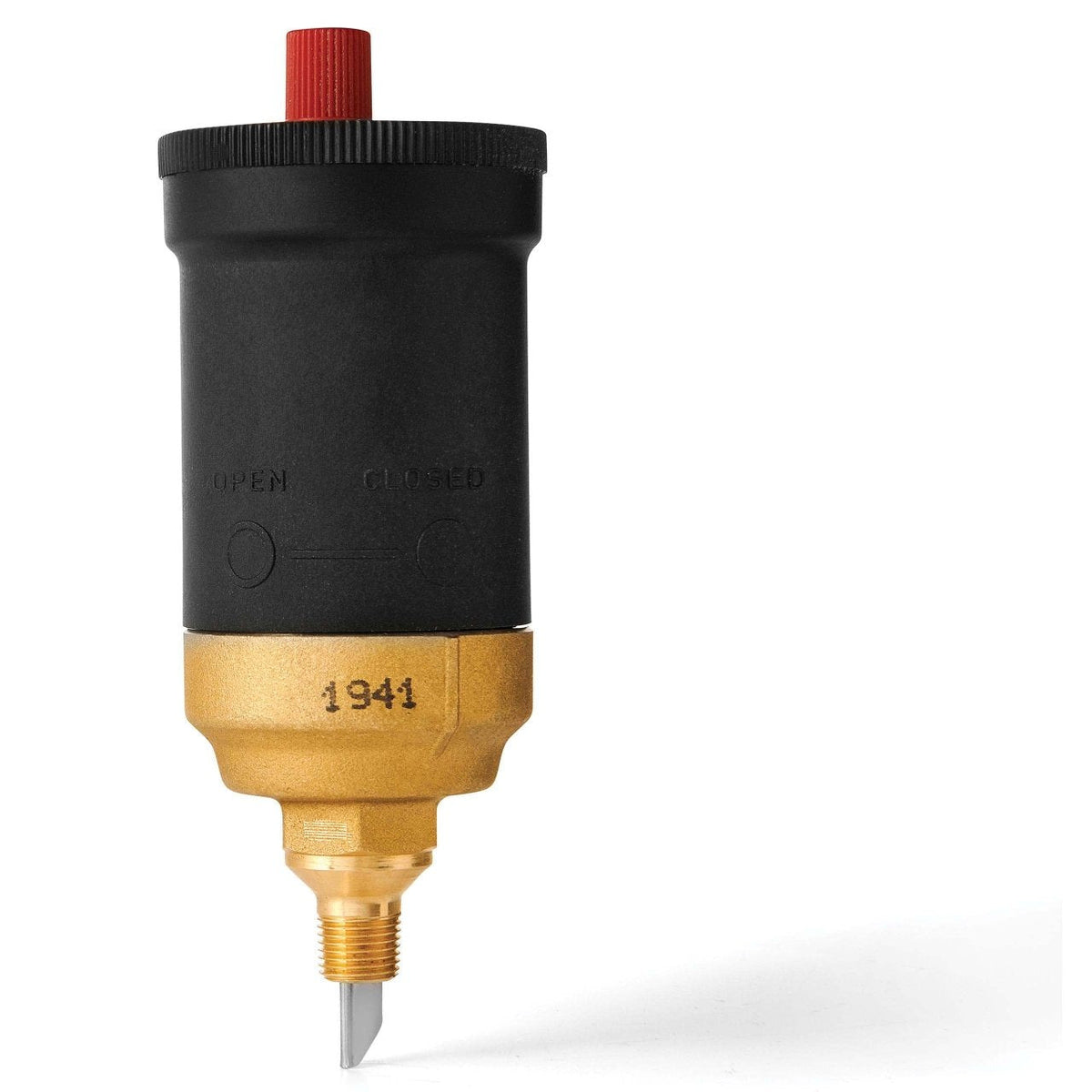

EA122A1002 Air Vent, 1/8 in NPT Male, 90 psi, for Hydronic Heating
- Part #
- EA122A1002
- UPC
- 085267138840
- Type
- Air Vents
$39.71
Available · ships in 1–2 business days
Free shipping to the contiguous US. No minimum.
Delivery estimate
- Order
- Ships
- Arrives
Estimate for ground shipping within the contiguous US.
- Size
- 1/8 in, 3.18 mm
- Material
- Thermoplastics
- Connection
- Male NPT
- Finish
- Black, Metallic, Red
Full specifications 3 manufacturer documents
Gas, electrical and venting work should be done by a licensed professional.
- 30-day returnsWithin 30 days, in the original packaging
- Help from real peopleCall or email us before or after you order
- Secure checkoutCard details never touch our servers
Product details
EA122A1002 — Air Vent, 1/8 in NPT Male, 90 psi, for Hydronic Heating.
Air and dirt separators, hydraulic separators, magnetic filters, vents, expansion tanks, fill systems and system treatment that protect a hydronic loop.
Specifications
| Part Number | EA122A1002 |
|---|---|
| Application | Air Ventilation, Potable Water Systems |
| Controlled Media | Water-Glycol Mixture according to VDI 2035 |
| Do Not Use With | Steam Systems |
| Manufacturer Warranty | 5 years |
| Color | Black, Metallic, Red |
| Compatible With | Not suitable for mineral oil or liquids with mineral-oilbased additives |
| For Use With | P122B1002 Cover Assembly, Q122A1001 Safe Waste Connector, 204992 Vent Cap |
| Media Temperature (Max) | 212 °F, 100 °C |
| Bottom Connection | Yes |
| Connection Type | Male NPT |
| Pipe Size | 1/8 in, 3.18 mm |
| DN Size | DN6 |
| Operating Pressure (Max) | 90 psi, 620 kPa |
| Product Diameter | 1 7/8 in, 48 mm |
| Product Height | 5.25 in, 133 mm |
| Product Length | 1.88 in, 48 mm |
| Seal Material | NBR |
| Float Material | Polyethylene (PE) |
| Body Material | Thermoplastics |
| UPC | 085267138840 |
| Country of Origin | DE |
