DTI-40 39.9 Gallon 444 SS Indirect Water Heater with Aquastat
- Part #
- DTI-40
$1,856.89
Available · ships in 1–2 business days
Free shipping to the contiguous US. No minimum.
Delivery estimate
- Order
- Ships
- Arrives
Estimate for ground shipping within the contiguous US.
Gas, electrical and venting work should be done by a licensed professional.
- 30-day returnsWithin 30 days, in the original packaging
- Help from real peopleCall or email us before or after you order
- Secure checkoutCard details never touch our servers
Product details

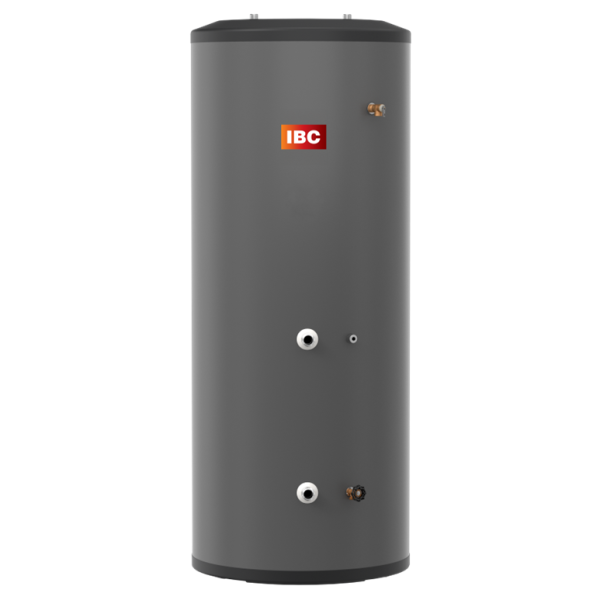

DTI-40 — 39.9 Gallon 444 SS Indirect Water Heater with Aquastat.
Indirect-fired water heaters and storage tanks heated by a boiler loop, plus plate heat exchangers for separating systems.
Specifications
| Part Number | DTI-40 |
|---|---|
| Model | DTI 40 (DTI-40) |
| Type | Indirect-fired water heater (boiler-heated) |
| Domestic water connections | 3/4" male |
| Boiler connections | 1" male |
| Diameter x height | 21.8 in. x 46.9 in. |
| Weight | 58 lb empty; 66 lb shipping ( data) |
| Max. operating pressure | 150 psi |
| Max. DHW temperature | 180°F (82°C) |
| Heating coil surface area | 8.0 sq ft |
| Boiler output required* | 98,000 BTU/hr |
| Heating coil flow rate* | 8 GPM |
| Coil pressure drop* | 2.5 ft of head |
| Certifications | CSA/ANSI Z21.10.3, CSA 4.3; NSF/ANSI 372 (low lead) |
| Manufacturer's warranty | 1-year limited parts; lifetime limited tank and coil for residential use; 7-year limited tank and coil for commercial use |
