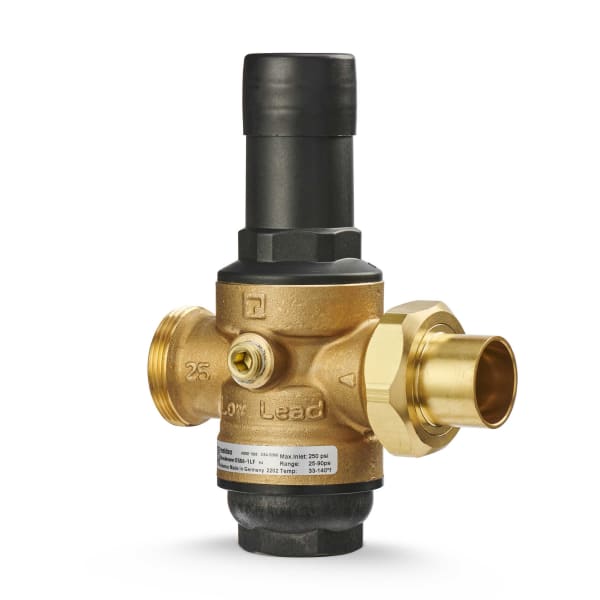

DS06-102-SUS-LF/U 1 in DialSet Female NPT Single Union Sweat PRV
DS06-102-SUS-LF/U 1 in DialSet Female NPT Single Union Sweat PRV

DS06-102-SUS-LF/U 1 in DialSet Female NPT Single Union Sweat PRV

Part #
DS06-102-SUS-LF/U
UPC
085267965682
$142.44

Available · ships in 1–2 business days

Free shipping to the contiguous US. No minimum.

Size
1 in
Material
Lead-free ECO BRASS®
Connection
sweat
Finish
Black, Brass, Green

Full specifications 6 manufacturer documents

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

  • 30-day returnsWithin 30 days, in the original packaging
  • Help from real peopleCall or email us before or after you order
  • Secure checkoutCard details never touch our servers
Need help matching a part?Call +1 (219) 319-0174 · Mon–Fri, 8 am – 5 pm ET

Product details

DS06-102-SUS-LF/U — 1 in DialSet Female NPT Single Union Sweat PRV.

Pressure reducing valves cut high street pressure to a safe household level and protect fixtures and appliances.

Specifications

Part Number DS06-102-SUS-LF/U
Type Pressure reducing valve
Size 1 in
Connections sweat
Union Single union
DialSet Yes
Lead free Yes
UPC 085267965682
Shipping Weight 1.8 lb
Ambient Operating Temperature (Min) 33°F, 1 °C
Ambient Operating Temperature (Max) 140°F, 60 °C
Color Black, Brass, Green
Connection Size 1 in
Connection Type Single Union Sweat
Differential Pressure (Min) 14.5 psi, 99.97 kPa
Domestic Hot Water Valve
Inlet Pressure (Max) 250 psi, 1723.69 kPa
Media Temperature (Min) 33°F, 1 °C
Media Temperature (Max) 140°F, 60 °C
Number of Connections 2
Outlet Pressure (Min) 25 psi, 172.37 kPa
Outlet Pressure (Max) 90 psi, 620.53 kPa
Preset Outlet Pressure 60 psi, 414 kPa
Pressure Reducing Ratio 10:1 Maximum
Product Height 6.94 in, 176.5 mm
Product Length 5.23 in, 133 mm
Replacement Parts D06FA-1B, ES06F-1B, SB06T-1
Valve Body Material Lead-free ECO BRASS®
Valve Body Pattern Straight Through
Manufacturer Warranty 1 Year
Application Potable Water Pressure Regulation
Valve Type DialSet Pressure Regulating Valve
DN Size DN25
Controlled Media Potable Water
Product Features Dial Calibration ± 4 psi, Balanced cartridge design allows for thermal expansion properties. Use expansion tanks and safety valves where applicable.
Valve Diaphragm Material Fabric-reinforced diaphragm
Number of Gauge Taps 1
