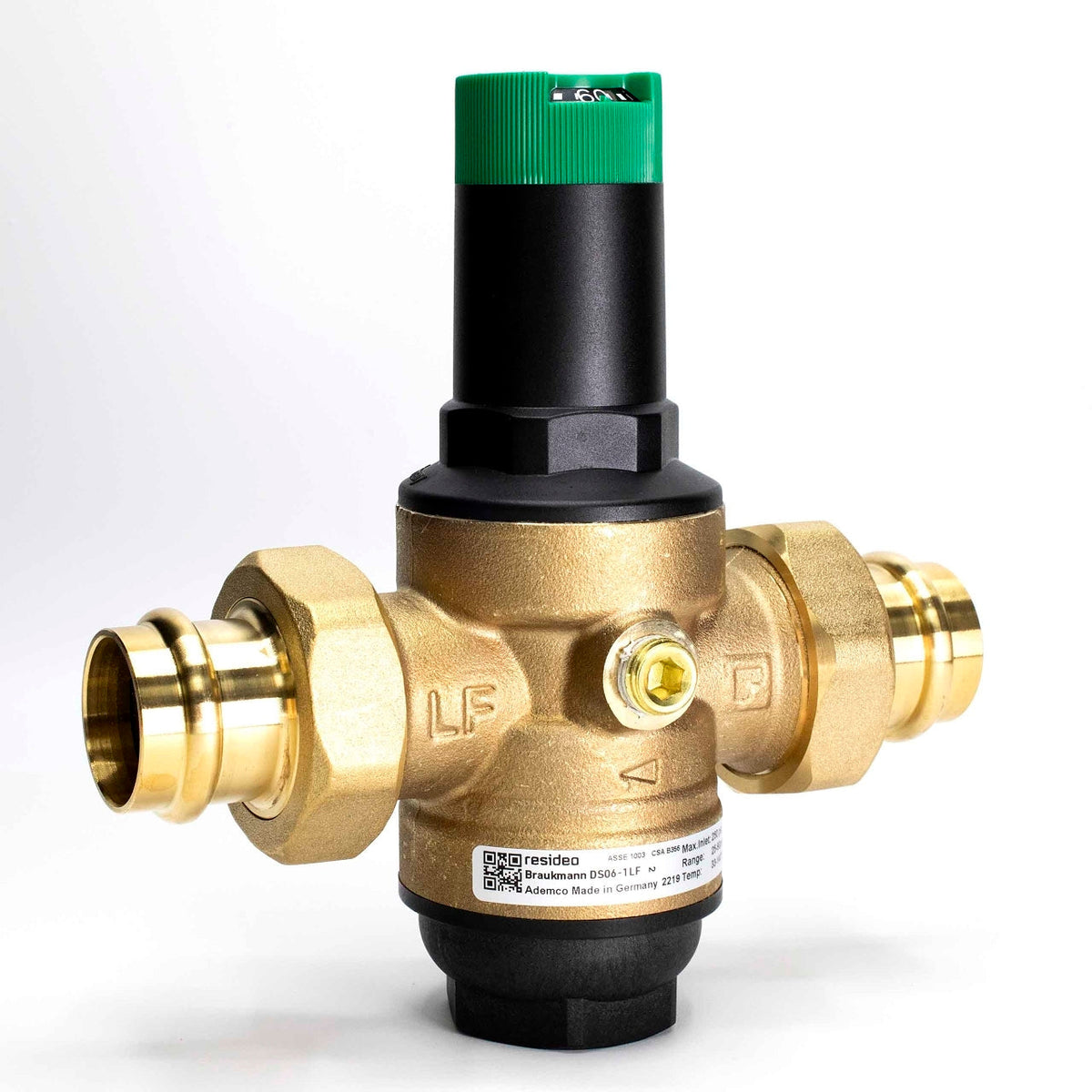

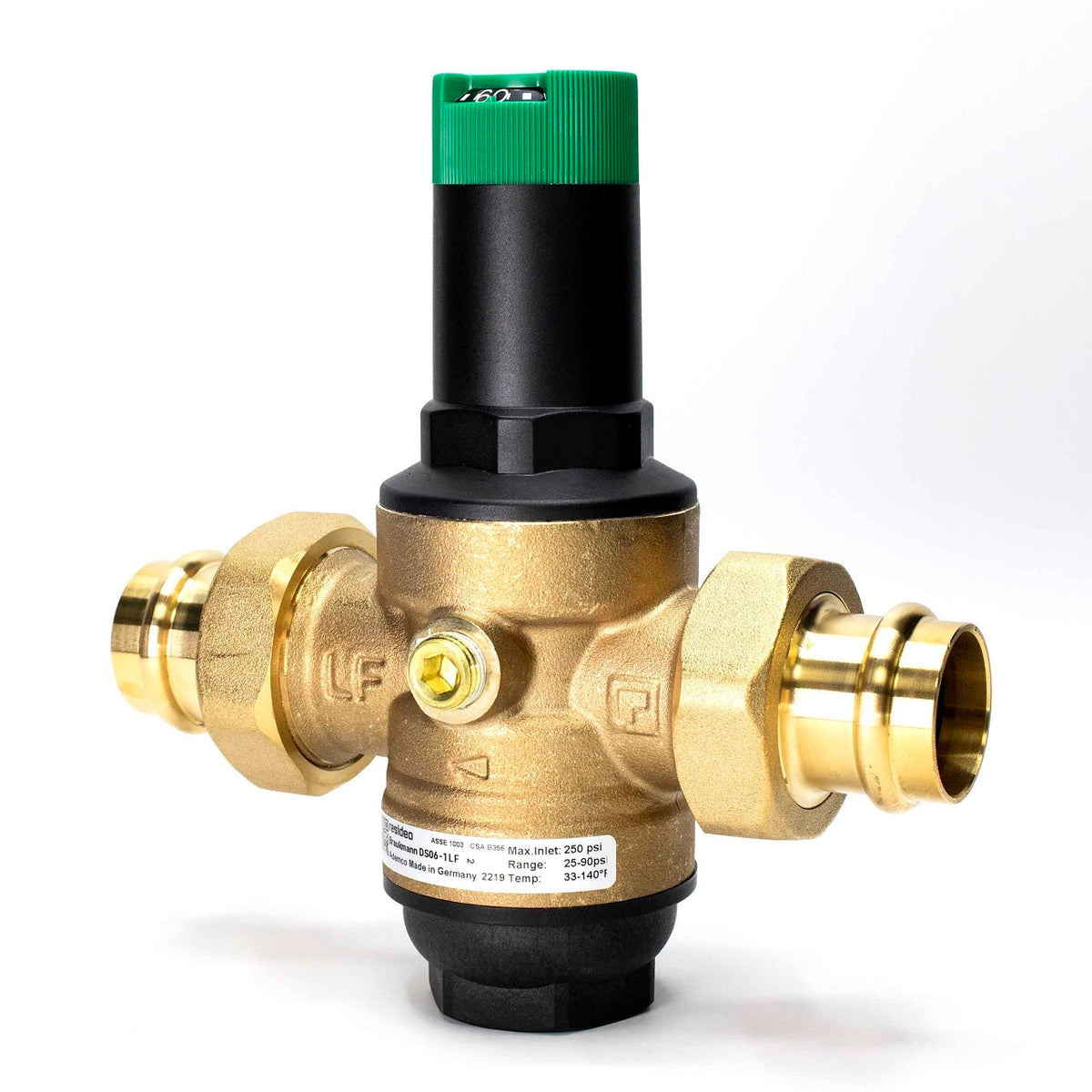

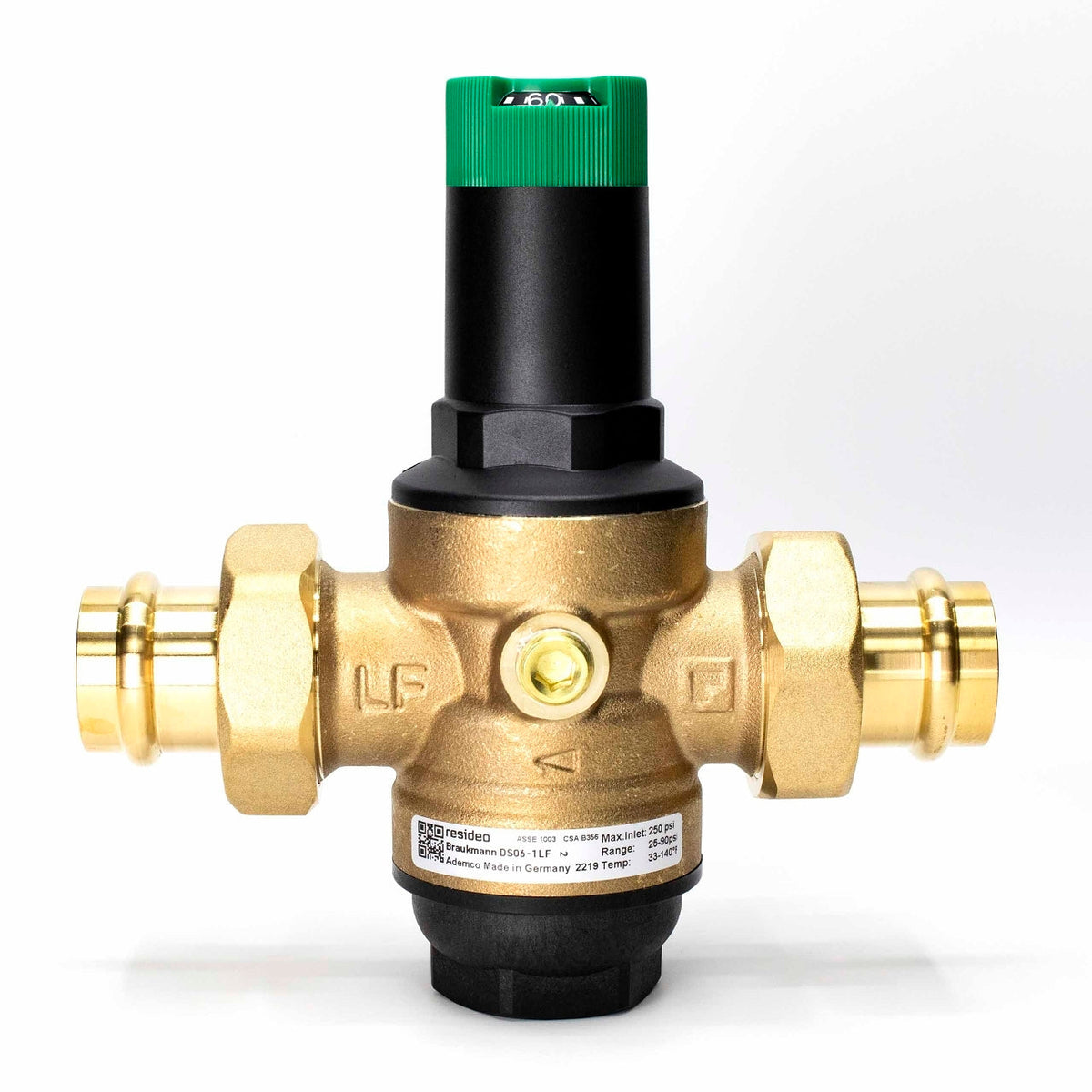

DS06-102-DUP-LF/U 1" DialSet Press Double Union Pressure Reducing Valve
DS06-102-DUP-LF/U 1" DialSet Press Double Union Pressure Reducing Valve
DS06-102-DUP-LF/U 1" DialSet Press Double Union Pressure Reducing Valve

DS06-102-DUP-LF/U 1" DialSet Press Double Union Pressure Reducing Valve

Part #
DS06-102-DUP-LF/U
UPC
194159014619
$181.57

Available · ships in 1–2 business days

Free shipping to the contiguous US. No minimum.

Size
1 in
Material
Lead-free ECO BRASS®
Connection
ProPress
Finish
Black, Brass, Green

Full specifications 6 manufacturer documents

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

  • 30-day returnsWithin 30 days, in the original packaging
  • Help from real peopleCall or email us before or after you order
  • Secure checkoutCard details never touch our servers
Need help matching a part?Call +1 (219) 319-0174 · Mon–Fri, 8 am – 5 pm ET

Product details

DS06-102-DUP-LF/U — 1" DialSet Press Double Union Pressure Reducing Valve.

Pressure reducing valves cut high street pressure to a safe household level and protect fixtures and appliances.

Specifications

Part Number DS06-102-DUP-LF/U
Type Pressure reducing valve
Size 1 in
Connections ProPress
Union Double union
DialSet Yes
Lead free Yes
Ambient Operating Temperature (Min) 33°F, 1 °C
Ambient Operating Temperature (Max) 140°F, 60 °C
Color Black, Brass, Green
Connection Size 1 in
Connection Type Female NPT Threaded Inlet and Outlet Externally threaded for Unions
Differential Pressure (Min) 14.5 psi, 99.97 kPa
Domestic Hot Water Valve
Inlet Pressure (Max) 250 psi, 1723.69 kPa
Media Temperature (Min) 33°F, 1 °C
Media Temperature (Max) 140°F, 60 °C
Number of Connections 2
Outlet Pressure (Min) 25 psi, 172.37 kPa
Outlet Pressure (Max) 90 psi, 620.53 kPa
Preset Outlet Pressure 60 psi, 414 kPa
Pressure Reducing Ratio 10:1 Maximum
Product Height 6.94 in, 176.5 mm
Product Length 6.76 in, 172 mm
Replacement Parts D06FA-1B, ES06F-1B, SB06T-1
Valve Body Material Lead-free ECO BRASS®
Valve Body Pattern Straight Through
Manufacturer Warranty 1 Year
Application Potable Water Pressure Regulation
Valve Type DialSet Pressure Regulating Valve
DN Size DN25
Controlled Media Potable Water
Product Features Dial Calibration ± 4 psi, Balanced cartridge design allows for thermal expansion properties. Use expansion tanks and safety valves where applicable.
Valve Diaphragm Material Fabric-reinforced diaphragm
Number of Gauge Taps 1
