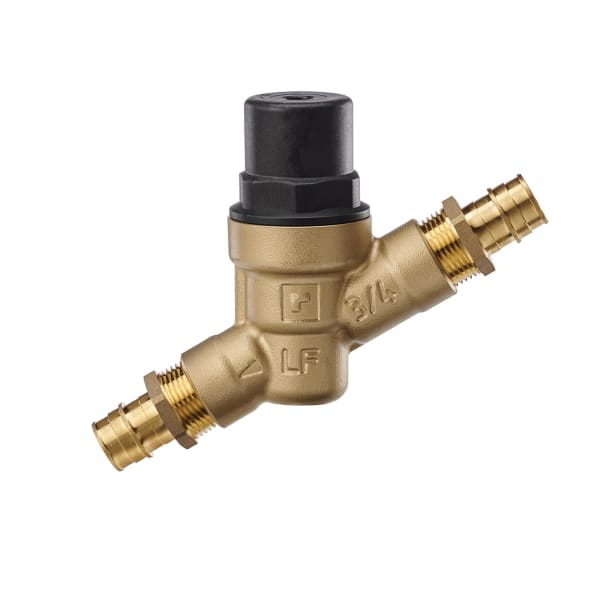

DS05-102-PEX-LF/U 1 in DN25 Pex ConnectionPressure Regulating Valve
- Part #
- DS05-102-PEX-LF/U
- UPC
- 194159007482
$77.54
Available · ships in 1–2 business days
Free shipping to the contiguous US. No minimum.
Delivery estimate
- Order
- Ships
- Arrives
Estimate for ground shipping within the contiguous US.
- Size
- 1 in
- Material
- Lead-free ECO BRASS®
- Connection
- PEX
- Finish
- Bronze, Black
Full specifications 4 manufacturer documents
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
- 30-day returnsWithin 30 days, in the original packaging
- Help from real peopleCall or email us before or after you order
- Secure checkoutCard details never touch our servers
Product details
DS05-102-PEX-LF/U — 1 in DN25 Pex ConnectionPressure Regulating Valve.
Pressure reducing valves cut high street pressure to a safe household level and protect fixtures and appliances.
Specifications
| Part Number | DS05-102-PEX-LF/U |
|---|---|
| Type | Pressure reducing valve |
| Size | 1 in |
| Connections | PEX |
| Lead free | Yes |
| UPC | 194159007482 |
| Ambient Operating Temperature (Min) | 33°F, 1 °C |
| Ambient Operating Temperature (Max) | 140°F, 60 °C |
| Color | Bronze, Black |
| Connection Size | 1 in |
| Connection Type | PEX Connection |
| Differential Pressure (Min) | 14.5 psi, 100 kPa |
| Inlet Pressure (Max) | 250 psi, 1724 kPa |
| Media Temperature (Min) | 33°F, 1 °C |
| Media Temperature (Max) | 140°F, 60 °C |
| Number of Connections | 2 |
| Pressure Reducing Ratio | 10:1 Maximum |
| Product Height | 4.2 in, 107 mm |
| Product Length | 7 in, 177 mm |
| Product Weight | 1.98 lb, 898 g |
| Product Width | 2 in, 50 mm |
| Valve Body Material | Lead-free ECO BRASS® |
| Valve Body Pattern | Straight Through |
| Application | Indoor Potable Water, Outdoor Potable Water, Indoor Irrigation, Outdoor Irrigation |
| Valve Type | Pressure Regulating Valve |
| DN Size | DN25 |
| Controlled Media | Water |
| Product Features | Screw Adjustment (1 turn) ± 7 psi (48.3 kPa) |
| Valve Diaphragm Material | Fabric-reinforced diaphragm |
| Outside Use | Yes |
| Number of Gauge Taps | None |
