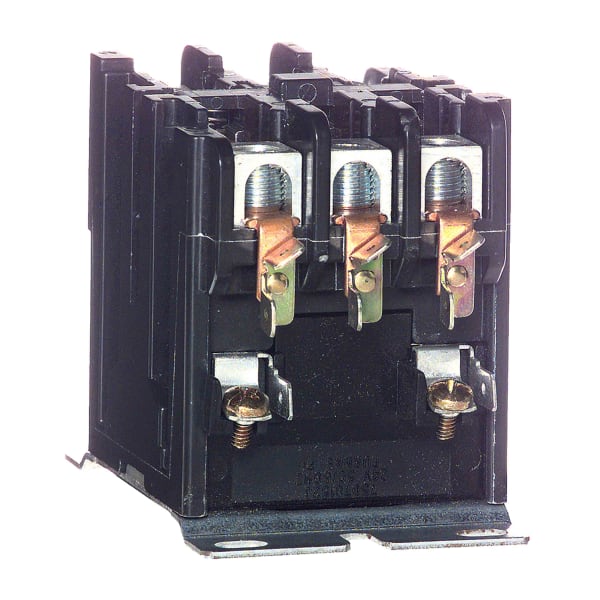

DP3040B5002/U 3 Pole 120 Vac PowerPro Definite Purpose Contactor

DP3040B5002/U 3 Pole 120 Vac PowerPro Definite Purpose Contactor

Part #
DP3040B5002/U
UPC
085267120937
$43.76

Available · ships in 1–2 business days

Free shipping to the contiguous US. No minimum.

Connection
Lug Connectors

Full specifications 4 manufacturer documents

Gas, electrical and venting work should be done by a licensed professional.

  • 30-day returnsWithin 30 days, in the original packaging
  • Help from real peopleCall or email us before or after you order
  • Secure checkoutCard details never touch our servers
Need help matching a part?Call +1 (219) 319-0174 · Mon–Fri, 8 am – 5 pm ET

Product details

DP3040B5002/U — 3 Pole 120 Vac PowerPro Definite Purpose Contactor.

Aquastats, switching relays, transformers, contactors, sensors and switches that tie thermostats, boilers and pumps together.

Specifications

Part Number DP3040B5002/U
Poles 3
Coil voltage 120 Vac
Rating 40 A
Series PowerPro
UPC 085267120937
Application PowerPro Definite Purpose Contactor
Approvals and Standards UL Component Recognized: File No. 14480, Guide No. NLDX2, CSA Certified: File No. LR6535, CE Compliant, RoHS Compliant, ARI 780/790
Coil Rating Voltage 120 V ac
Coil Connection Size 1/4 in, #6
Coil Connection Type Quick Connect, Screws
Number of Poles 3 Poles
Operating Frequency 50 Hz, 60 Hz
Connection Type Lug Connectors
Electrical Connection Type Lug connectors
Switch Action DPST
Ambient Operating Temperature (Min) 13 °F, -25 °C
Ambient Operating Temperature (Max) 158 °F, 70 °C
Product Height 3.1 in, 79 mm
Product Width 3.62 in, 92 mm

Manufacturer documents
