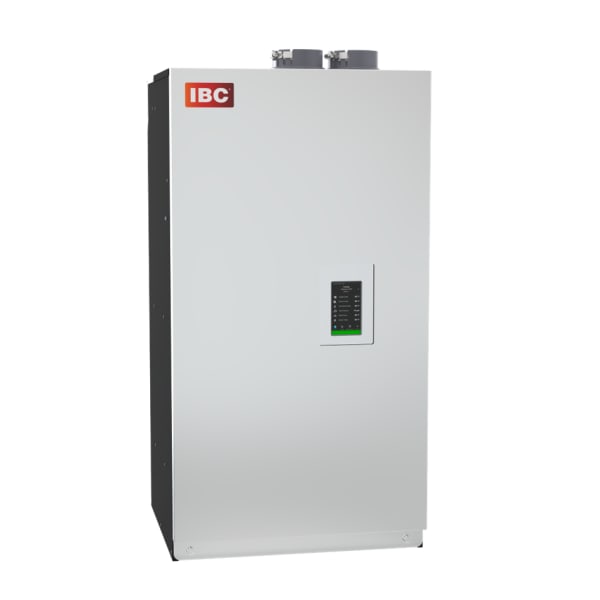

CX199 CX Combi Boiler 10-1 Turn Down 199,000 Btu
- Part #
- CX199
$4,479.99
Available · ships in 1–2 business days
Free shipping to the contiguous US. No minimum.
Delivery estimate
- Order
- Ships
- Arrives
Estimate for ground shipping within the contiguous US.
Gas, electrical and venting work should be done by a licensed professional.
- 30-day returnsWithin 30 days, in the original packaging
- Help from real peopleCall or email us before or after you order
- Secure checkoutCard details never touch our servers
Product details
CX199 — CX Combi Boiler 10-1 Turn Down 199,000 Btu.
Condensing, combi and cast iron boilers for hydronic heating, many with domestic hot water built in. Size from a heat-loss calculation, not the old boiler's rating.
Specifications
| Part Number | CX199 |
|---|---|
| Model | CX199 |
| Type | Condensing combi boiler (heating and DHW) |
| Heating input (natural gas or propane) | 20,000 to 199,000 BTU/h |
| Heating output | 19,100 to 183,700 BTU/h |
| DHW input | 20,000 to 199,000 BTU/h |
| AFUE | 95% |
| Turndown | 10:1 |
| Heating connections | 1" NPT male supply and return |
| DHW connections | 3/4" NPT male hot and cold |
| Gas inlet | 1/2" NPT female; 4 to 14 in. w.c. supply pressure |
| Condensate outlet | 3/4" hose |
| Venting | 3" PVC, CPVC or PPs flue and intake; 3" up to 150 ft equivalent length; 2" PPs not permitted; 3" flexible PPs up to 30 ft |
| Boiler water pressure | 8 to 50 psig (30 psig relief valve supplied) |
| DHW water pressure | 40 to 150 psig |
| Max. water temperature | 190°F (electronic high limit) |
| Electrical | 120 VAC, 60 Hz |
| Weight | 113 lb empty |
| Approved altitude | 0 to 12,000 ft |
Ratings & details
- 10:1 turndown
- 95% AFUE
- Stainless steel heat exchanger
- V-10 controller
