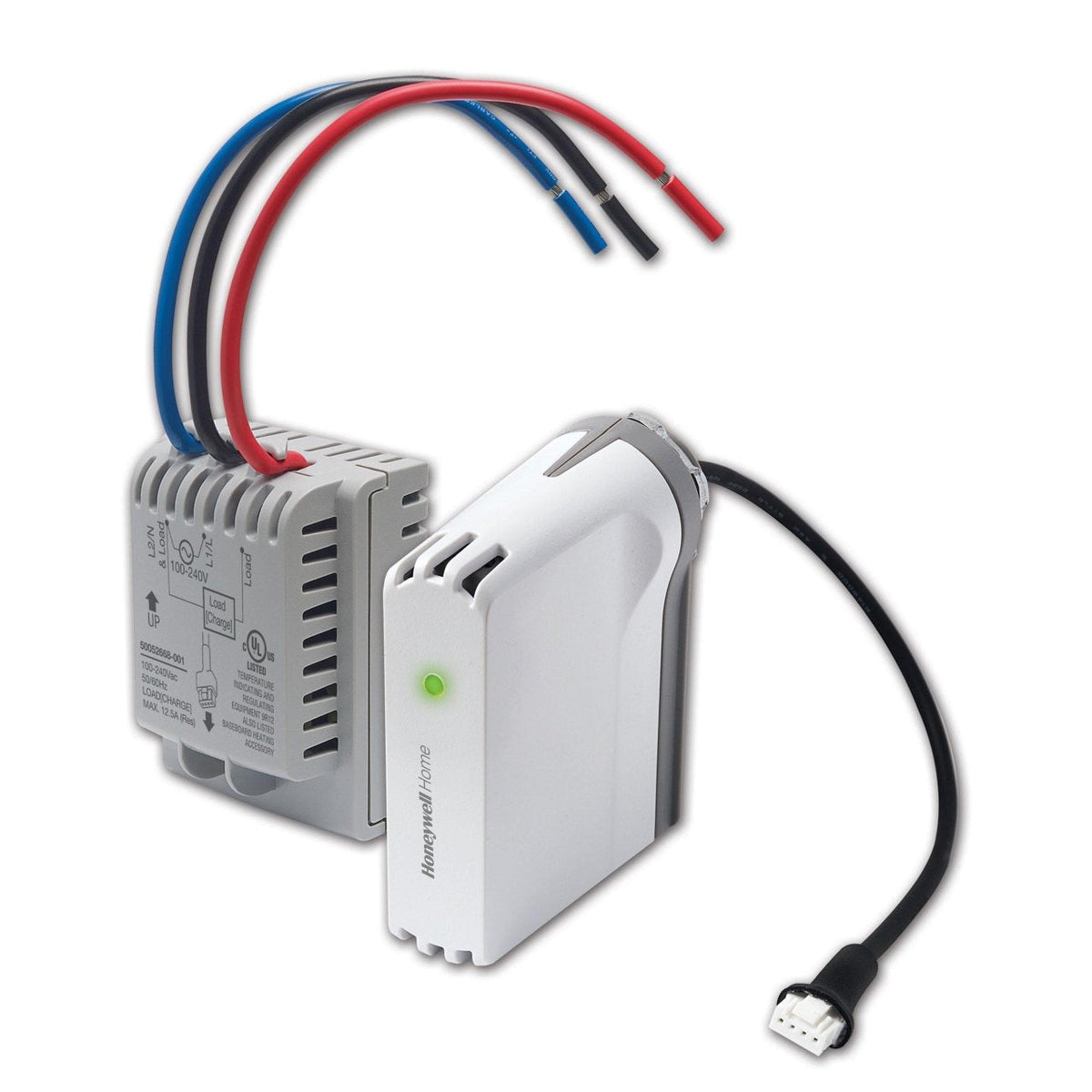

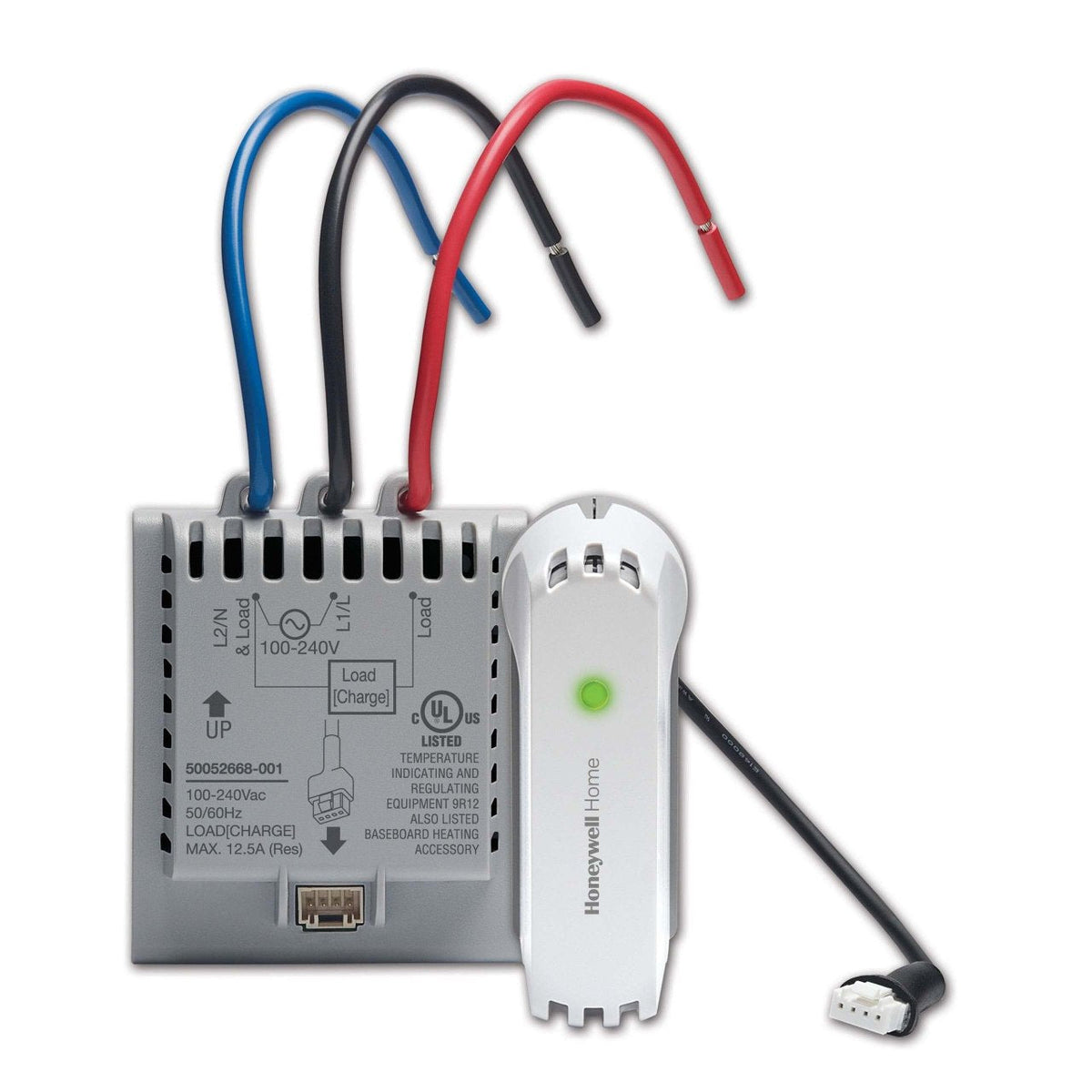

ATM100-SPK/U Aube Wireless Line Voltage Equipment Interface Module, RedLINK, 100–240V
ATM100-SPK/U Aube Wireless Line Voltage Equipment Interface Module, RedLINK, 100–240V

ATM100-SPK/U Aube Wireless Line Voltage Equipment Interface Module, RedLINK, 100–240V

Part #
ATM100-SPK/U
UPC
775264100055
$220.74

Available · ships in 1–2 business days

Free shipping to the contiguous US. No minimum.

Finish
White

Full specifications 5 manufacturer documents

  • 30-day returnsWithin 30 days, in the original packaging
  • Help from real peopleCall or email us before or after you order
  • Secure checkoutCard details never touch our servers
Need help matching a part?Call +1 (219) 319-0174 · Mon–Fri, 8 am – 5 pm ET

Product details

ATM100-SPK/U — Aube Wireless Line Voltage Equipment Interface Module, RedLINK, 100–240V.

Wall plates, sensors, wireless gateways, RedLINK accessories and thermostat wire.

Specifications

Part Number ATM100-SPK/U
Application Electric Heating; Baseboard heater; Convector or Fan-forced Heater
Thermostat Type Line Voltage, RedLINK, Communicating, Digital
Approvals and Standards CE
Smart Home Integration No
Display Type LCD Screen
Display Size 7.27 sq in
Touchscreen No
Modes of Operation Heat
Program Type Manual / Not Programmed
Battery Type Alkaline
Power Source Hardwired
Frequency 50 Hz, 60 Hz
Battery Size AA
Manufacturer Warranty 3 Years
Includes Aube Electrical Heat Equipment Interface, White and light almond antenna covers
For Use With YTL9160AR1000 EConnectTM thermostat kit
WiFi No
Z-Wave No
Z-Wave Specifications Not Applicable
RedLINK Yes
Color White
Ambient Operating Temperature (Max) 140 °F, 60 °C
Ambient Operating Temperature (Min) 4 °F, -20 °C
Ambient Relative Humidity (Max) Thermostat: 90% RH non-condensing, EIM: 95% RH non-condensing
Ambient Relative Humidity (Min) Thermostat: 5% RH non-condensing, EIM: 5% RH non-condensing
Compatible Sensor Outdoor Temperature Sensor
Mounting Type Vertical Mount
Number of Switch Steps 2x Single pole, double throw (SPDT) relay
Power Supply Frequency Time control ST9020: 230 Vac / 10 VA, Thermostats DT92: battery-powered, 2 x 1.5 V AA Alkaline cells
Shipping and Storage Temperature (Max) 50 °C
Shipping and Storage Temperature (Min) 20 °C
Switch Action SPST
UPC 775264100055
Country of Origin MX

Ratings & details

  • Energy saving and TPI control
  • Wireless enabled upgrade
  • Two way wireless communication
  • Optimum Start
  • Delayed Start
  • Optimum Stop
  • OFF setting adjustable from 5 °C to 16 °C
