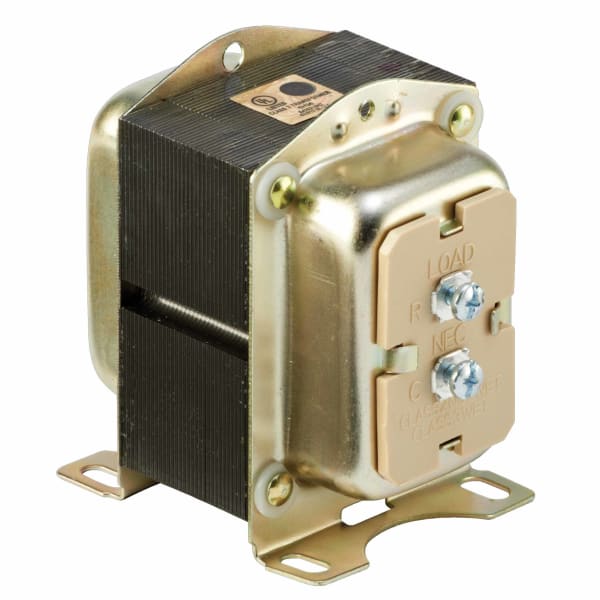

AT87A1106/U Foot and Plate Mount Transformer

AT87A1106/U Foot and Plate Mount Transformer

Part #
AT87A1106/U
UPC
085267000093
$69.24

Available · ships in 1–2 business days

Free shipping to the contiguous US. No minimum.

Full specifications 5 manufacturer documents

Gas, electrical and venting work should be done by a licensed professional.

  • 30-day returnsWithin 30 days, in the original packaging
  • Help from real peopleCall or email us before or after you order
  • Secure checkoutCard details never touch our servers
Need help matching a part?Call +1 (219) 319-0174 · Mon–Fri, 8 am – 5 pm ET

Product details

AT87A1106/U — Foot and Plate Mount Transformer.

Aquastats, switching relays, transformers, contactors, sensors and switches that tie thermostats, boilers and pumps together.

Specifications

Part Number AT87A1106/U
Type Control transformer
Rating 87 VA
Secondary 24 Vac
Mounting Foot / Plate
Shipping Weight 2.6 lb
NEMA Rating Yes
Primary Input Voltage 120/208/240 V ac
Secondary Connection Type (2) screw terminals
Secondary Open Circuit Voltage 26.5 V.O.C.
VA Rating 50 VA
Frequency 50 Hz; 60 Hz
Approvals and Standards UL Component Recognized, CSA Certified, NEC Class 2
Ambient Operating Temperature (Max) 105 °F, 41 °C
Ambient Operating Temperature (Min) 20 °F, -29 °C
