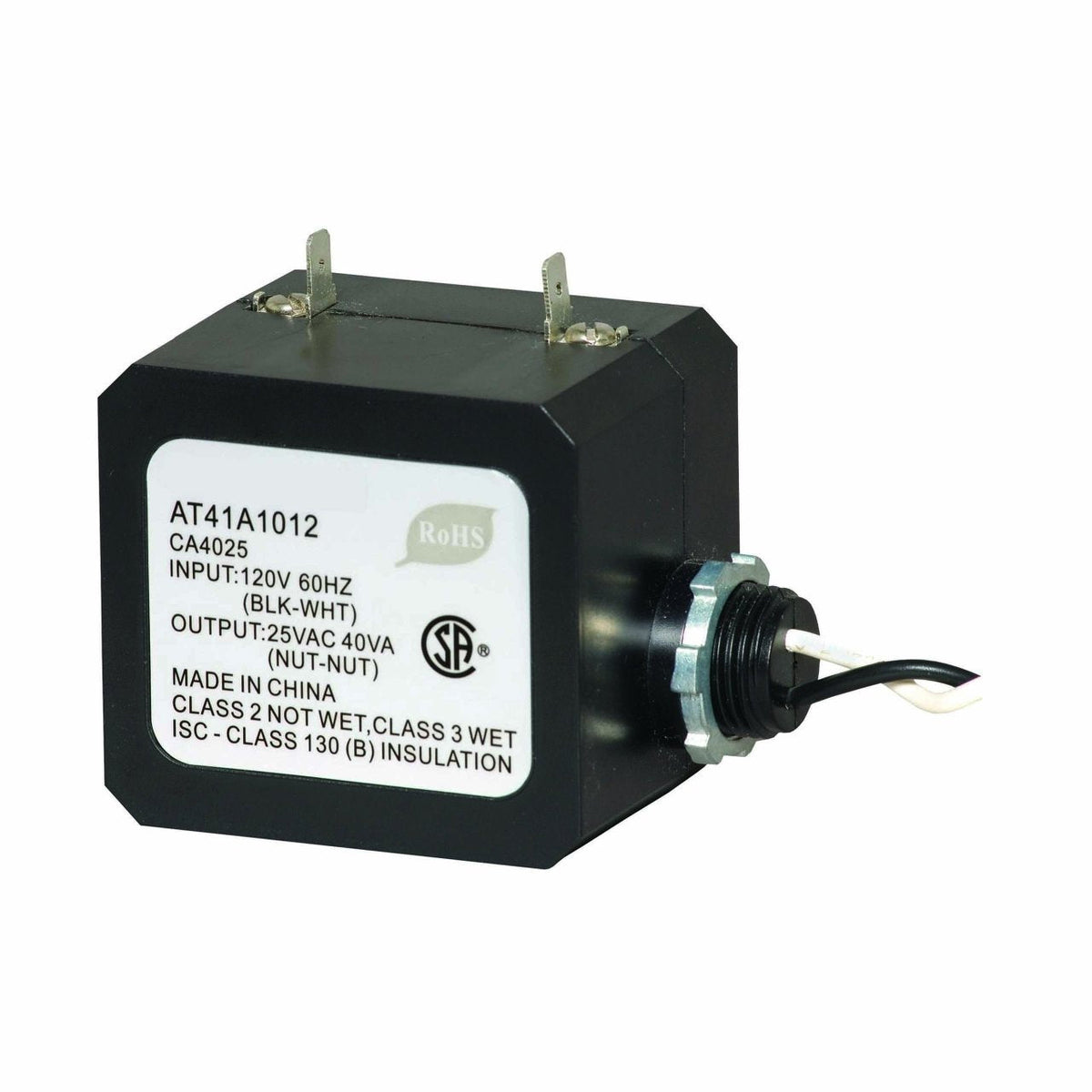

AT41A1012/U Transformer, 40 VA, 120/24 V, Class 2, 1/2 in Conduit Nipple Mount
- Part #
- AT41A1012/U
- UPC
- 085267767545
- Type
- Transformers
$52.66
Available · ships in 1–2 business days
Free shipping to the contiguous US. No minimum.
Delivery estimate
- Order
- Ships
- Arrives
Estimate for ground shipping within the contiguous US.
Gas, electrical and venting work should be done by a licensed professional.
- 30-day returnsWithin 30 days, in the original packaging
- Help from real peopleCall or email us before or after you order
- Secure checkoutCard details never touch our servers
Product details
AT41A1012/U — Transformer, 40 VA, 120/24 V, Class 2, 1/2 in Conduit Nipple Mount.
Aquastats, switching relays, transformers, contactors, sensors and switches that tie thermostats, boilers and pumps together.
Specifications
| Part Number | AT41A1012/U |
|---|---|
| Primary Connection Size | 7 in, 178 mm |
| Primary Connection Type | Leadwires |
| Primary Input Voltage | 120 V ac |
| Secondary Connection Type | Screw/quick-connect secondary |
| Secondary Open Circuit Voltage | 24 V.O.C. |
| VA Rating | 40 VA |
| Frequency | 50 Hz; 60 Hz |
| Ambient Operating Temperature (Max) | 105 °F, 41 °C |
| Ambient Operating Temperature (Min) | 20 °F, -29 °C |
| Product Height | 2 in, 50.5 mm |
| Product Width | 2.25 in, 57 mm |
| UPC | 085267767545 |
| Country of Origin | CN |
