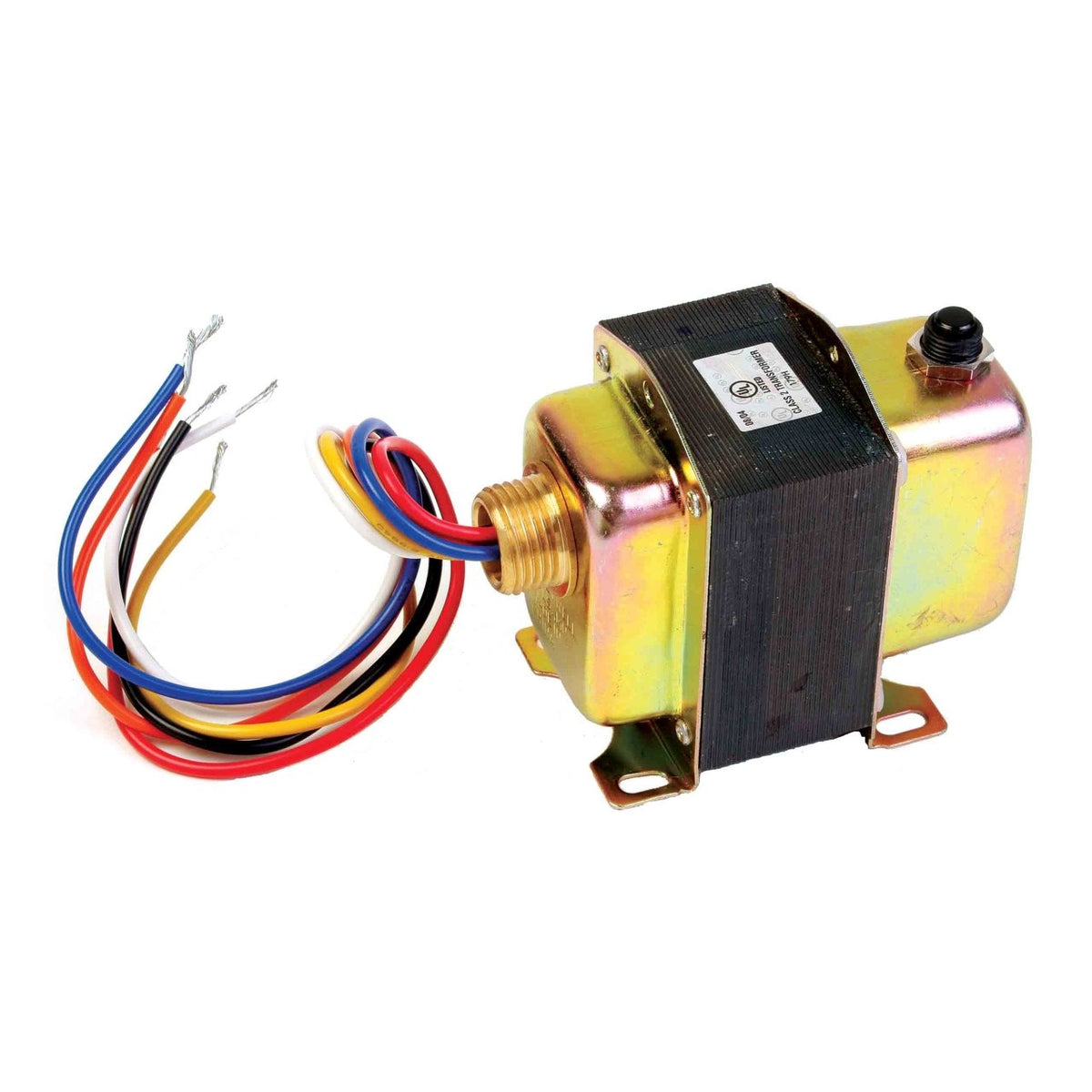

AT175F1031/U Transformer with Circuit Breaker, 208/277/480 V, Conduit and Foot Mount

AT175F1031/U Transformer with Circuit Breaker, 208/277/480 V, Conduit and Foot Mount

Part #
AT175F1031/U
UPC
085267151146
$100.19

Available · ships in 1–2 business days

Free shipping to the contiguous US. No minimum.

Full specifications 3 manufacturer documents

Gas, electrical and venting work should be done by a licensed professional.

  • 30-day returnsWithin 30 days, in the original packaging
  • Help from real peopleCall or email us before or after you order
  • Secure checkoutCard details never touch our servers
Need help matching a part?Call +1 (219) 319-0174 · Mon–Fri, 8 am – 5 pm ET

Product details

AT175F1031/U — Transformer with Circuit Breaker, 208/277/480 V, Conduit and Foot Mount.

Aquastats, switching relays, transformers, contactors, sensors and switches that tie thermostats, boilers and pumps together.

Specifications

Part Number AT175F1031/U
NEMA Rating No
Primary Connection Size 9 in, 229 mm
Primary Connection Type Leadwires: Black - COM, Red - 208 V, Brown - 277 V, Black with red stripe - 480 V
Primary Input Voltage 208/277/480 V ac
Secondary Connection Size 9 in, 229 mm
Secondary Connection Type Leadwires
Secondary Open Circuit Voltage 27 V.O.C.
VA Rating 75 VA
Frequency 60 Hz
Approvals and Standards UL Listed: File no. E14881, Guide no. XOKV, CSA Certified: File No. LR95329-18
Includes Button for manually resetting the circuit breaker and metal end bells
Ambient Operating Temperature (Max) 77 °F, 25 °F
Ambient Operating Temperature (Min) 20 °F, -29 °C
Product Height 3.19 in, 81 mm
Product Width 2.19 in, 56 mm
UPC 085267151146
Country of Origin CN
