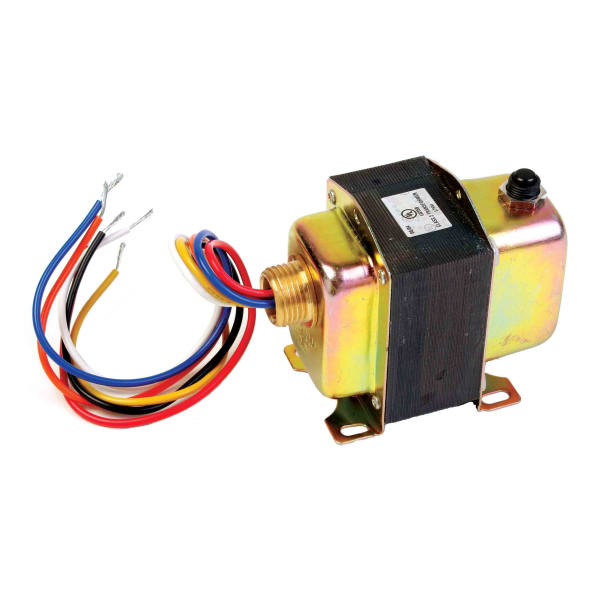

AT175F1023/U General Purpose Transformer with Manual Reset
- Part #
- AT175F1023/U
- UPC
- 085267151139
- Type
- Transformers
$98.74
Available · ships in 1–2 business days
Free shipping to the contiguous US. No minimum.
Delivery estimate
- Order
- Ships
- Arrives
Estimate for ground shipping within the contiguous US.
- Finish
- Metallic
Full specifications 3 manufacturer documents
Gas, electrical and venting work should be done by a licensed professional.
- 30-day returnsWithin 30 days, in the original packaging
- Help from real peopleCall or email us before or after you order
- Secure checkoutCard details never touch our servers
Product details
AT175F1023/U — General Purpose Transformer with Manual Reset.
Aquastats, switching relays, transformers, contactors, sensors and switches that tie thermostats, boilers and pumps together.
Specifications
| Part Number | AT175F1023/U |
|---|---|
| Type | Control transformer |
| Rating | 175 VA |
| Secondary | 24 Vac |
| Reset | Manual |
| Shipping Weight | 2.8 lb |
| NEMA Rating | No |
| Primary Connection Size | 9 in, 229 mm |
| Primary Input Voltage | 120/208/240 V ac |
| Secondary Connection Size | 9 in, 229 mm |
| Secondary Connection Type | Leadwires |
| Secondary Open Circuit Voltage | 27 V.O.C. |
| VA Rating | 75 VA |
| Frequency | 60 Hz |
| Approvals and Standards | UL Listed: File no. E14881, Guide no. XOKV, CSA Certified: File No. LR95329-18 |
| Includes | 1/2-14 NPSM conduit connector, Lock Nut, Mounting Feet |
| Color | Metallic |
| Ambient Operating Temperature (Max) | 105 °F, 41 °C |
| Ambient Operating Temperature (Min) | 20 °F, -29 °C |
| Product Height | 3.19 in |
| Product Length | 2.19 in |
| Product Width | 3.94 in |
