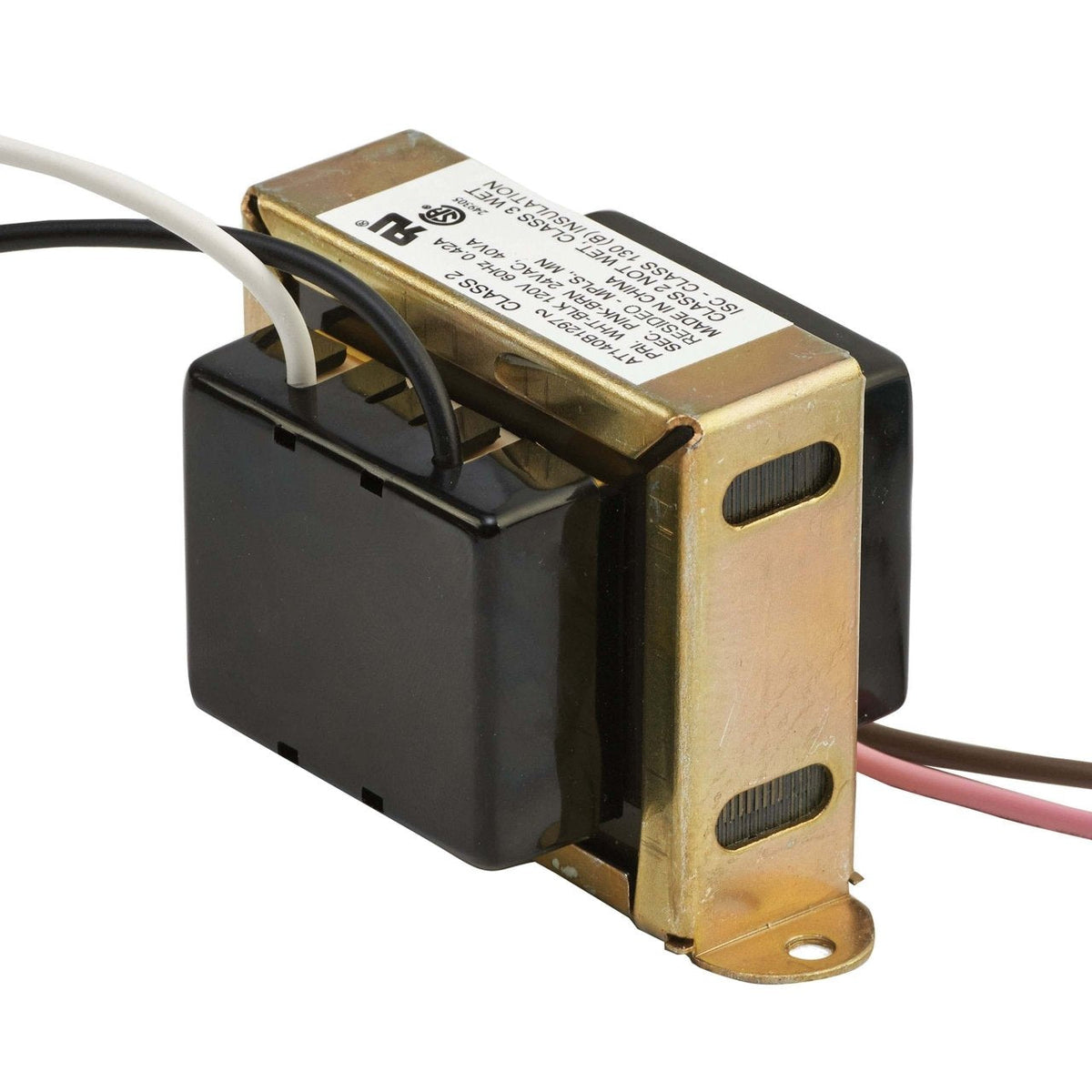

AT150B1146/U Control Transformer, 50 VA, 120/208/240 V, 9 in Leadwires

AT150B1146/U Control Transformer, 50 VA, 120/208/240 V, 9 in Leadwires

Part #
AT150B1146/U
UPC
085267035439
$37.34

Available · ships in 1–2 business days

Free shipping to the contiguous US. No minimum.

Full specifications 3 manufacturer documents

Gas, electrical and venting work should be done by a licensed professional.

  • 30-day returnsWithin 30 days, in the original packaging
  • Help from real peopleCall or email us before or after you order
  • Secure checkoutCard details never touch our servers
Need help matching a part?Call +1 (219) 319-0174 · Mon–Fri, 8 am – 5 pm ET

Product details

AT150B1146/U — Control Transformer, 50 VA, 120/208/240 V, 9 in Leadwires.

Aquastats, switching relays, transformers, contactors, sensors and switches that tie thermostats, boilers and pumps together.

Specifications

Part Number AT150B1146/U
NEMA Rating No
Primary Connection Size 9 in, 229 mm
Primary Connection Type Leadwires: Black - COM; White - 120 V; Red - 208 V; Orange - 240 V
Primary Input Voltage 120/208/240 V ac
Secondary Connection Size 9 in, 229 mm
Secondary Connection Type Leadwires
Secondary Open Circuit Voltage 27.5 V.O.C.
VA Rating 50 VA
Frequency 60 Hz
Approvals and Standards UL Component Recognized: B, D, E models. File# E14881, CSA Certified: A & B models, NEC Class 2
Ambient Operating Temperature (Max) 105 °F, 41 °C
Ambient Operating Temperature (Min) 20 °F, -29 °C
Product Height 1.69 in, 43 mm
Product Width 3.5 in, 89 mm
UPC 085267035439
Country of Origin CN
