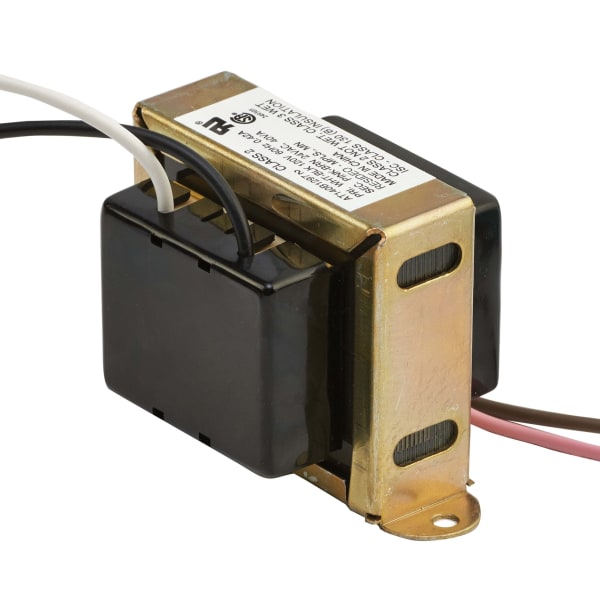

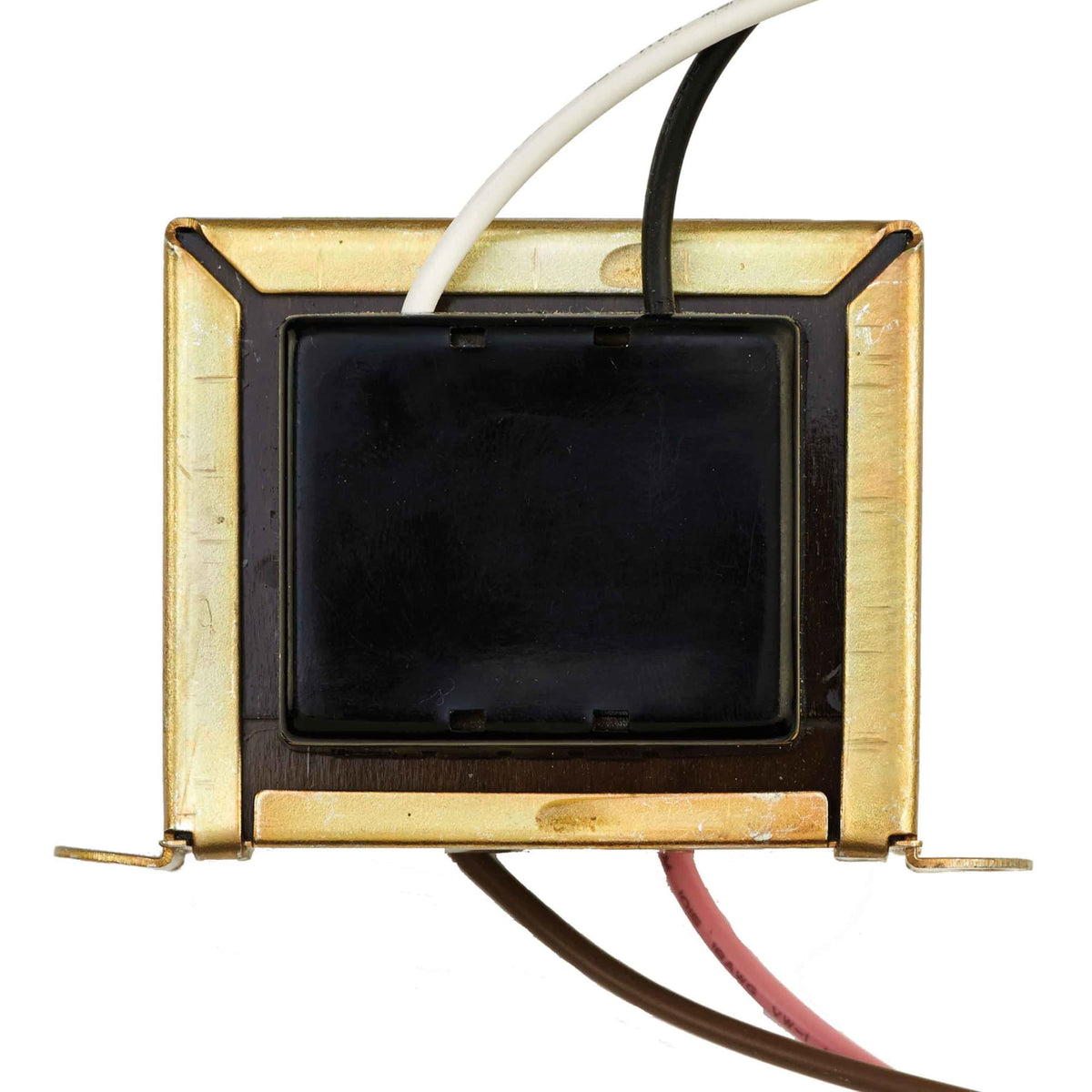

AT120B1028/U Foot Mounted 120 Vac Transformer
- Part #
- AT120B1028/U
- UPC
- 085267034920
- Type
- Transformers
$23.93
Available · ships in 1–2 business days
Free shipping to the contiguous US. No minimum.
Delivery estimate
- Order
- Ships
- Arrives
Estimate for ground shipping within the contiguous US.
- Finish
- Black, Metallic
Full specifications 3 manufacturer documents
Gas, electrical and venting work should be done by a licensed professional.
- 30-day returnsWithin 30 days, in the original packaging
- Help from real peopleCall or email us before or after you order
- Secure checkoutCard details never touch our servers
Product details
AT120B1028/U — Foot Mounted 120 Vac Transformer.
Aquastats, switching relays, transformers, contactors, sensors and switches that tie thermostats, boilers and pumps together.
Specifications
| Part Number | AT120B1028/U |
|---|---|
| Type | Control transformer |
| Primary | 120 Vac |
| Secondary | 24 Vac |
| Mounting | Foot-mounted |
| Rating | 24 Vac at 20 VA |
| Leadwires | 9 in. leadwires |
| Operating range | 20 F to +105 F |
| UPC | 085267034920 |
| Application | Heating and or cooling control systems |
| NEMA Rating | No |
| Primary Connection Size | 9 in, 229 mm |
| Primary Input Voltage | 120 V ac |
| Secondary Connection Size | 9 in, 229 mm |
| Secondary Connection Type | Leadwires |
| Secondary Open Circuit Voltage | 27 V.O.C. |
| VA Rating | 20 VA |
| Frequency | 60 Hz |
| Approvals and Standards | CSA Certified: A & B models, NEC Class 2 |
| Includes | Metal end bells |
| Manufacturer Warranty | 1 Year |
| Color | Black, Metallic |
| Ambient Operating Temperature (Max) | 105 °F, 41 °C |
| Ambient Operating Temperature (Min) | 20 °F, -29 °C |
