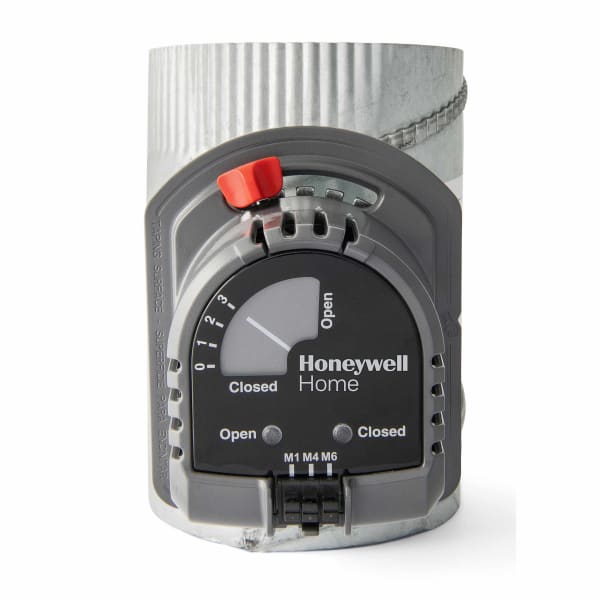

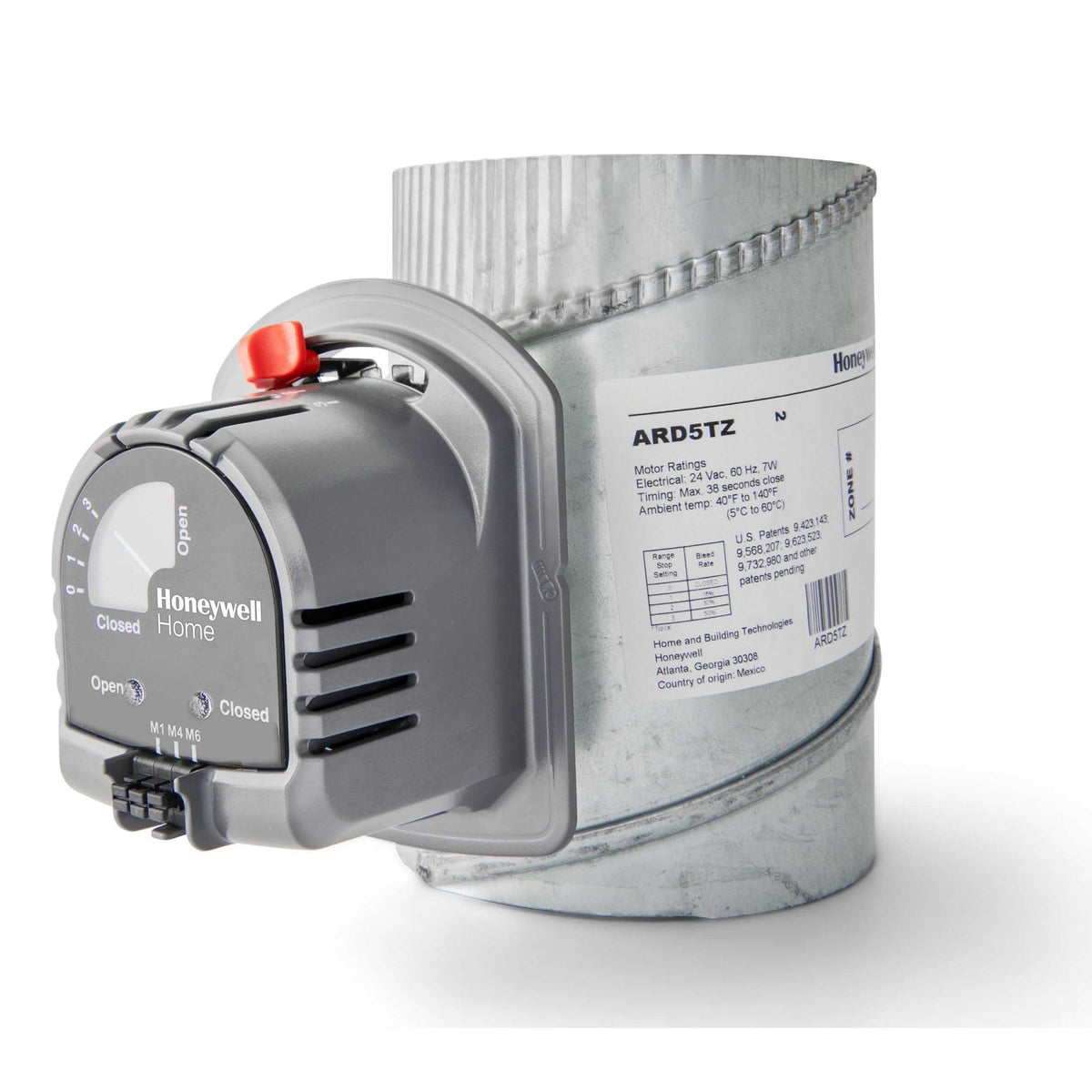

ARD10TZ/U 10 in Round Automatic Damper
ARD10TZ/U 10 in Round Automatic Damper
ARD10TZ/U 10 in Round Automatic Damper

ARD10TZ/U 10 in Round Automatic Damper

Part #
ARD10TZ/U
UPC
085267461191
$177.53

Available · ships in 1–2 business days

Free shipping to the contiguous US. No minimum.

Size
10 in diameter
Finish
Metallic

Full specifications 5 manufacturer documents

Gas, electrical and venting work should be done by a licensed professional.

  • 30-day returnsWithin 30 days, in the original packaging
  • Help from real peopleCall or email us before or after you order
  • Secure checkoutCard details never touch our servers
Need help matching a part?Call +1 (219) 319-0174 · Mon–Fri, 8 am – 5 pm ET

Product details

ARD10TZ/U — 10 in Round Automatic Damper.

Motorized and bypass dampers with zone panels that divide a forced-air system into independently controlled zones.

Specifications

Part Number ARD10TZ/U
Type Automatic round zone damper
Size 10 in diameter
Shape Round
Voltage 24 V
Damper type Single-blade, round
Actuator mounting Side or Top
Motor Power closed, spring open
Terminals M1-Power; M6 Common; M4 (optional)-LED indication
UPC 085267461191
Damper Duct Shape Type Round
Application Zone Damper
Damper Material Galvanized Steel
Manufacturer Warranty 5 Year
Color Metallic
Activation Electric
Actuator Housing Material Molded Plastic
Actuator Power Consumption 8 VA
Actuator Torque 71 in-oz
Blade Material Galvanized Steel
Leakage Less than 1% at 0.5 in WC
Position Indicator Included Yes
Position Indicator Type Damper Position Range Stops, LED indication light for open and close
Range Stop Yes
Range Stop Options 4
Actuator Opening Time 30 seconds power open/10 seconds spring return
Pressure Drop (Max) Maximum at full open: 0.0329 in. wc at 800 ft/min
Product Diameter 10 in, 254 mm
Static Pressure (Max) 1 in wc
