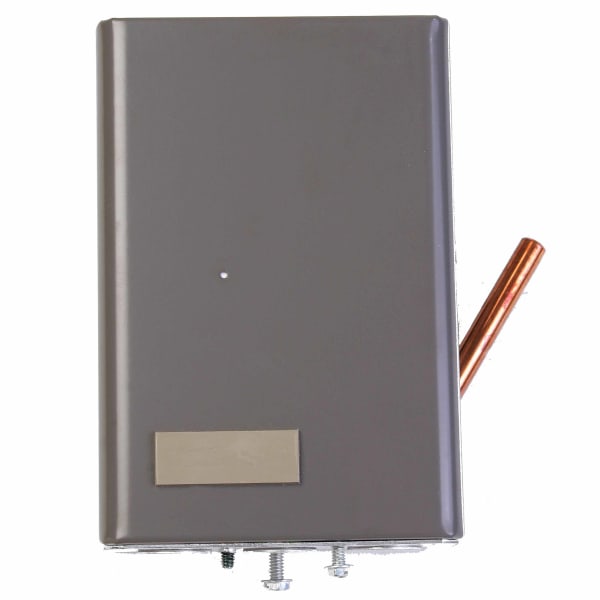

Aquastat Relay, 180 to 240 F Range with 15 Degree F Fixed Differential, Low Volt/Millivolt L8148E1265/U
Aquastat Relay, 180 to 240 F Range with 15 Degree F Fixed Differential, Low Volt/Millivolt L8148E1265/U

Aquastat Relay, 180 to 240 F Range with 15 Degree F Fixed Differential, Low Volt/Millivolt L8148E1265/U

Part #
L8148E1265/U
UPC
085267055215
$400.49

Available · ships in 1–2 business days

Free shipping to the contiguous US. No minimum.

Finish
Gray

Full specifications 8 manufacturer documents

Gas, electrical and venting work should be done by a licensed professional.

  • 30-day returnsWithin 30 days, in the original packaging
  • Help from real peopleCall or email us before or after you order
  • Secure checkoutCard details never touch our servers
Need help matching a part?Call +1 (219) 319-0174 · Mon–Fri, 8 am – 5 pm ET

Product details

L8148E1265/U — Aquastat Relay, 180 to 240 F Range with 15 Degree F Fixed Differential, Low Volt/Millivolt.

Aquastats, switching relays, transformers, contactors, sensors and switches that tie thermostats, boilers and pumps together.

Specifications

Part Number L8148E1265/U
Temperature range 180–240 °F
Differential Fixed
Shipping Weight 3.0 lb
Application Line Voltage Circulator Control and Low Voltage Power Supply and Limit Control, May be used with Series 60 Low Limit Control
Approvals and Standards UL Listed (models with well): File No. MP466, Guide No. MBPR, CSA Certified: File No. LR95329-1
Color Gray
Compatible With Hot Water, Hydronic Heating Systems
Includes Molex® plug for use with vent damper, Heat Conductive Compound
Mounting Type Vertical Mount
Differential Temperature 15 °F Fixed
High Limit Set point Temperature (Min) 180 °F, 82 °C
High Limit Set point Temperature (Max) 240 °F, 116 °C
Electrical Connection Type Quick-Connect / Screw
Electrical Ratings at Full Load Burner 0.8 A maximum at 24 V AC, Burner and Circulator 7.4 A at 120 V AC, Burner and Circulator 3.7 A at 240 V AC
Electrical Ratings at Locked Rotor Burner and Circulator 44.4 A at 120 V AC, Burner 22.7 A at 240 V AC, Circulator 22.2 A at 240 V AC
Electrical Ratings Millivolt At Locked Rotor-- 0.25 A at 1/4 to 12 V DC
Operating Frequency 60 Hz
Operating Pressure (Max) 255 psi Immersion Well, 1757 kPa Immersion Well
Operating Voltage 120 V AC
Type of Fuel Natural Gas
Switch Type SPST: High Limit and Circulator
Insulation Depth 1.5 in to 3 in, 38 mm to 76 mm
Capillary Length 4 1/2 in
Product Height 6.13 in, 156 mm
Product Length 4.31 in, 110 mm
Product Width 3.13 in, 79 mm
Hazmat Information Dangerous Goods in Excepted Quantities
