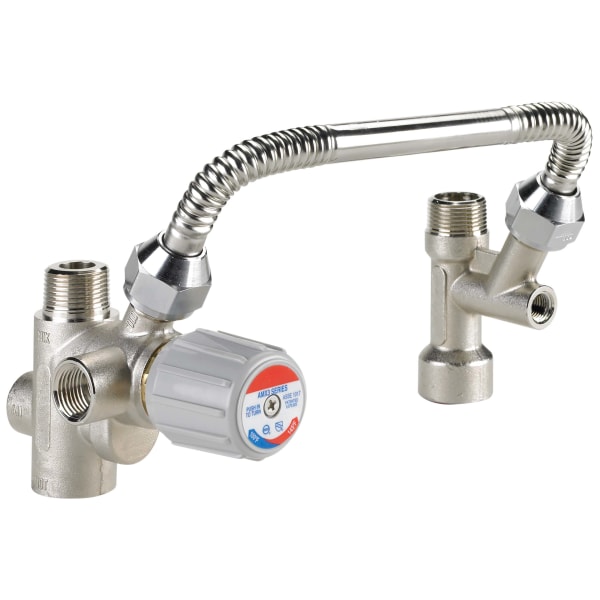

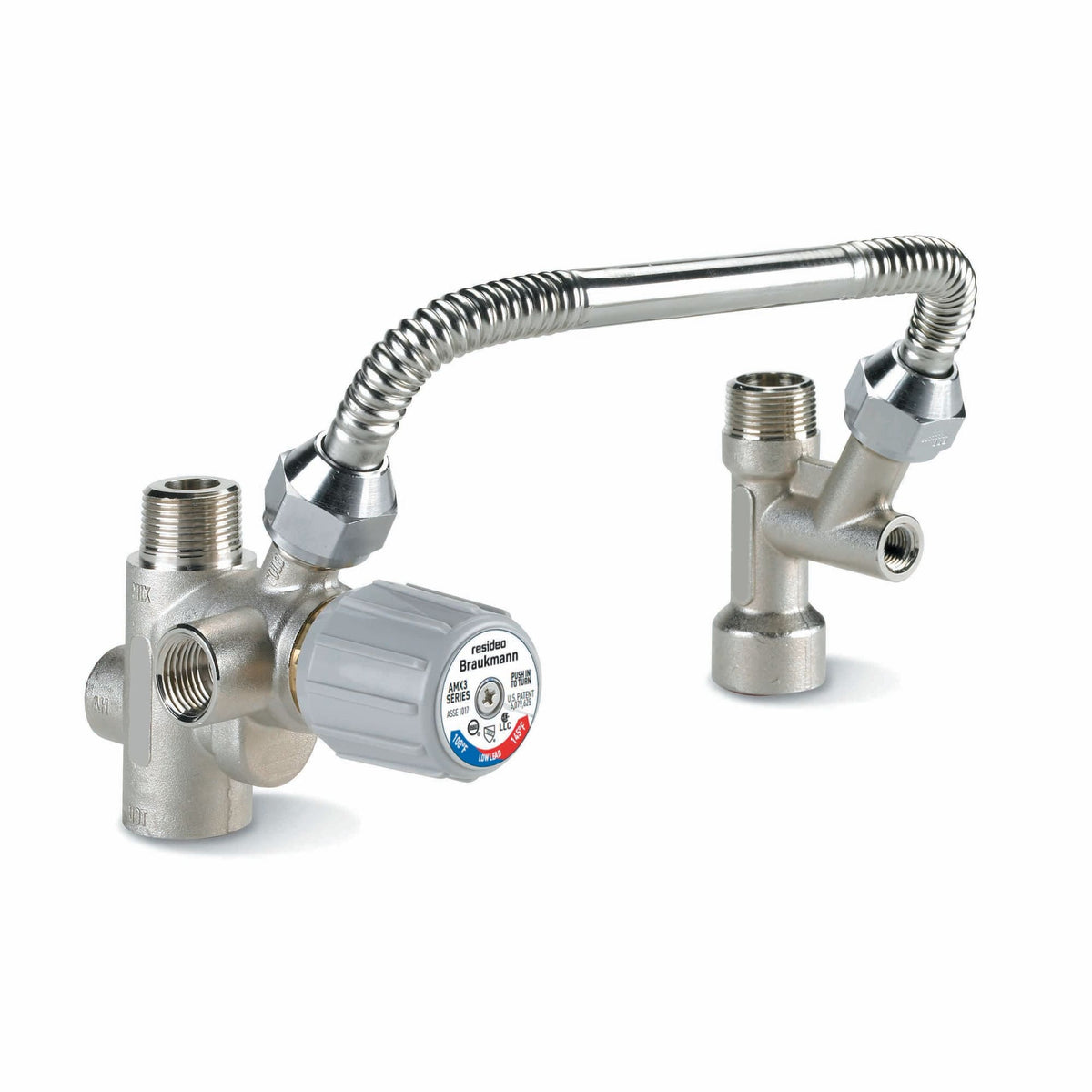

AMX302TLF/U Water Heater Kit - DirectConnect Valve, Tee, and 11 in Flex Connector LF
- Part #
- AMX302TLF/U
- UPC
- 085267388597
$228.91
Available · ships in 1–2 business days
Free shipping to the contiguous US. No minimum.
Delivery estimate
- Order
- Ships
- Arrives
Estimate for ground shipping within the contiguous US.
- Size
- 3/4 in
- Material
- Teflon-coated, Nickel-plated Brass, Brass
- Connection
- NPT
- Finish
- Metallic
Full specifications 4 manufacturer documents
Gas, electrical and venting work should be done by a licensed professional.
- 30-day returnsWithin 30 days, in the original packaging
- Help from real peopleCall or email us before or after you order
- Secure checkoutCard details never touch our servers
Product details
AMX302TLF/U — Water Heater Kit - DirectConnect Valve, Tee, and 11 in Flex Connector LF.
Everything around the heater: flexible connectors, gas supplies, drain pans, stands and seismic straps, vent kits, thermal expansion tanks and tankless service valve kits.
Specifications
| Part Number | AMX302TLF/U |
|---|---|
| Type | Thermostatic mixing valve |
| Lead free | Yes |
| UPC | 085267388597 |
| Shipping Weight | 3.55 lb |
| Controlled Media | Potable Water, Non Potable Water |
| Re-Circulation | Yes |
| Approvals and Standards | ASSE 1017 Certified, CSA Listed |
| Color | Metallic |
| Includes | 3/4 in Mixing Valve, 3/4 in Cold Water Tee, 11 in SS Flex Connector, Check Valves on Hot and Cold Inlets, Does NOT include adapters |
| Product Height | 3.47 in |
| Product Length | 5.31 in, 135 mm |
| Product Width | 5.31 in |
| Manufacturer Warranty | 1 Year |
| Adjustment Means | Handwheel |
| Check Valve | Yes |
| Cold Inlet Temperature (Min) | 33 °F, 0.5 °C |
| Cold Inlet Temperature (Max) | 80 °F, 27 °C |
| Cold Tee | Yes |
| Differential Pressure (Max) | 7 psi, 48.3 kPa |
| Flex Connector Included | Yes |
| Flex Connector Length | 11 in|279.4 mm |
| Flow Coefficient | 2.3 Cv |
| Flow Rate (Min) | 0.25 gpm, 0.95 lpm |
| Hot Inlet Temperature (Min) | 100 °F, 38 °C |
| Hot Inlet Temperature (Max) | 180 °F, 100 °C |
| Media Temperature (Max) | 200 °F, 93 °C |
| Number of Check Valves | 2 |
| Operating Mixing Temperature (Min) | 100 °F, 38 °C |
| Operating Mixing Temperature (Max) | 145 °F, 63 °C |
| Operating Pressure (Max) | 150 psi, 1034 kPa |
| Seal Material | EPDM Rubber |
| Valve Body Material | Teflon-coated, Nickel-plated Brass, Brass |
| Accessories | AM-1-025RP/U |
| Connection Size | 3/4 in |
| Connection Type | NPT |
| Nominal Diameter | DN20 |
| Number of Connections | 4 |
