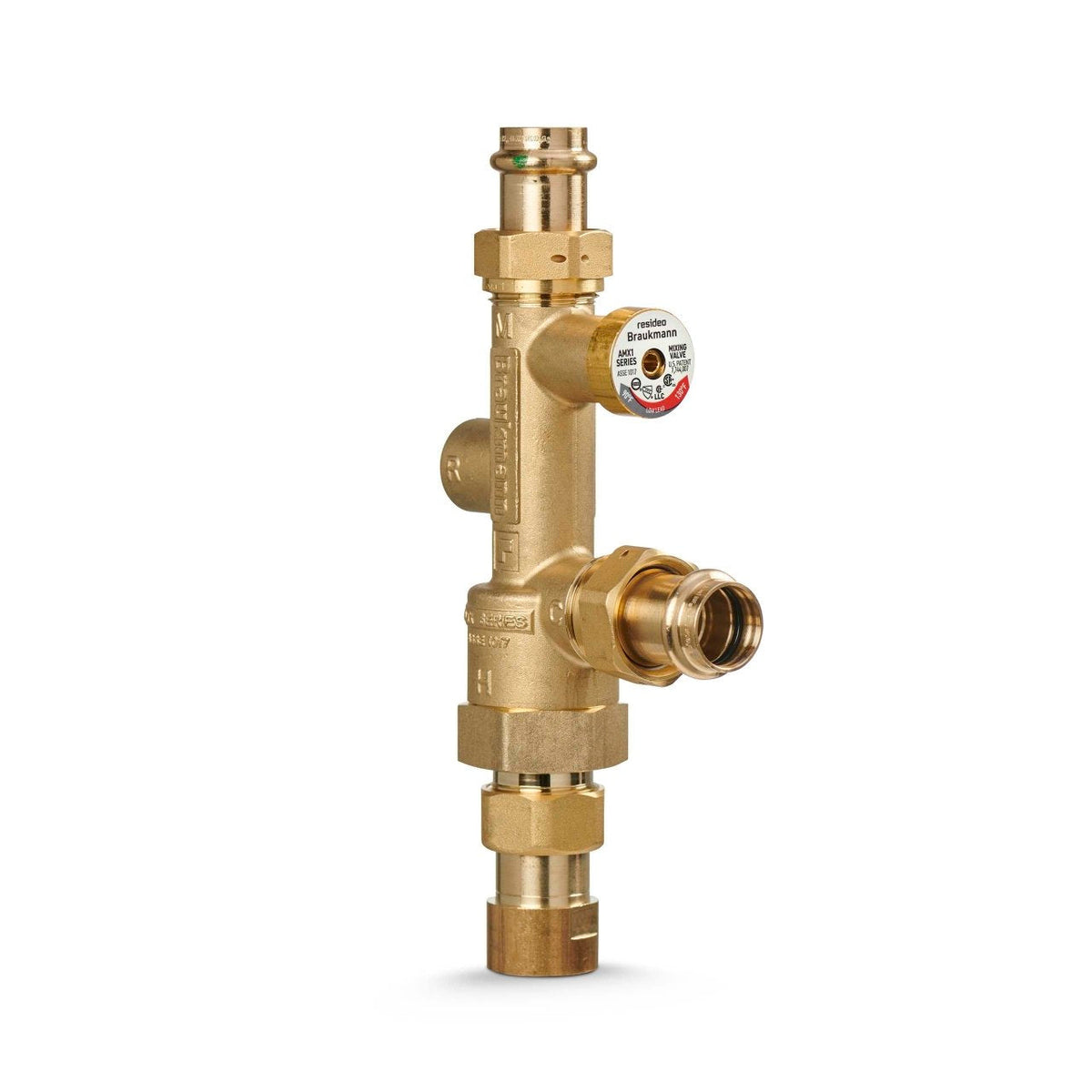

AMX102-UP-1LF/U AMX Lead Free Mixing Valve, 1 in Press
- Part #
- AMX102-UP-1LF/U
- UPC
- 194159014497
$331.74
Available · ships in 1–2 business days
Free shipping to the contiguous US. No minimum.
Delivery estimate
- Order
- Ships
- Arrives
Estimate for ground shipping within the contiguous US.
- Size
- 1 in
- Connection
- Union ProPress
Full specifications 4 manufacturer documents
Gas, electrical and venting work should be done by a licensed professional.
- 30-day returnsWithin 30 days, in the original packaging
- Help from real peopleCall or email us before or after you order
- Secure checkoutCard details never touch our servers
Product details
AMX102-UP-1LF/U — AMX Lead Free Mixing Valve, 1 in Press.
Everything around the heater: flexible connectors, gas supplies, drain pans, stands and seismic straps, vent kits, thermal expansion tanks and tankless service valve kits.
Specifications
| Part Number | AMX102-UP-1LF/U |
|---|---|
| Controlled Media | Potable Water, Non Potable Water |
| Re-Circulation | Yes |
| Approvals and Standards | ASSE 1017 Certified, CSA Certified, IAPMO Listed, NSF/ANSI Listed, The wettable surface of lead-free models contain less than 0.25% of lead by weighted average |
| Includes | 1 in FNPT Inlet, (2) 1 in Union Pro Press fittings |
| Manufacturer Warranty | 1 Year |
| Cold Inlet Temperature (Min) | 39 °F, 4 °C |
| Cold Inlet Temperature (Max) | 80 °F, 27 °C |
| Flow Coefficient | 4 Cv |
| Flow Rate (Min) | 0.50 gpm, 1.9 lpm |
| Hot Inlet Temperature (Min) | 120 °F, 49 °C |
| Hot Inlet Temperature (Max) | 180 °F, 82 °C |
| Mixed Outlet Temperature (Min) | 70 °F, 21 °C |
| Mixed Outlet Temperature (Max) | 145 °F, 63 C |
| Lead Free | Yes |
| Operating Pressure (Max) | 150 psi, 1034 kPa |
| Connection Size | 1 in |
| Connection Type | Union ProPress |
| Nominal Diameter | DN25 |
| UPC | 194159014497 |
| Country of Origin | MX |
