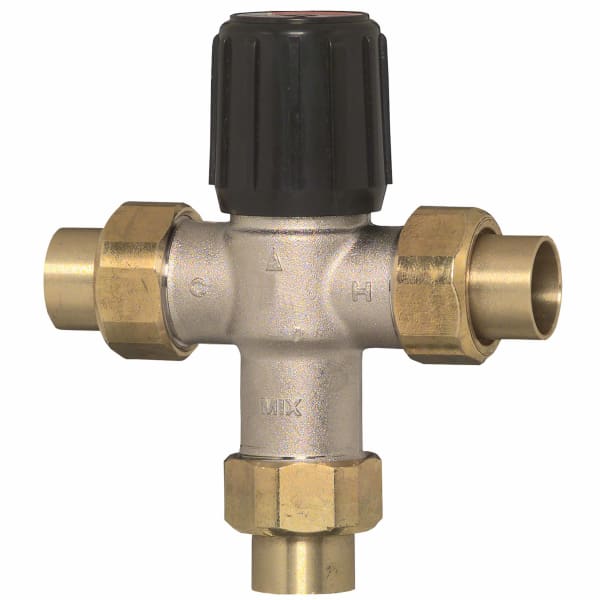

AM101R-UP-1/U 3/4 in Union ProPress Mixing Valve R - Heat Only
- Part #
- AM101R-UP-1/U
- UPC
- 085267529662
Available · ships in 1–2 business days
Free shipping to the contiguous US. No minimum.
- Order
- Ships
- Arrives
Estimate for ground shipping within the contiguous US.
- Size
- 3/4 in
- Material
- Teflon-coated, Nickel-plated Brass
- Connection
- ProPress
- Finish
- Metallic
Full specifications 5 manufacturer documents
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Gas, electrical and venting work should be done by a licensed professional.
- 30-day returnsWithin 30 days, in the original packaging
- Help from real peopleCall or email us before or after you order
- Secure checkoutCard details never touch our servers
Product details
AM101R-UP-1/U — 3/4 in Union ProPress Mixing Valve R - Heat Only.
Thermostatic mixing valves blend hot and cold to a set outlet temperature, protecting against scalding while letting you store water hotter. Lead-free models are for potable water; heating-only models are for hydronic loops.
Specifications
| Part Number | AM101R-UP-1/U |
|---|---|
| Type | Heat-only mixing valve (not for potable water) |
| Size | 3/4 in |
| Connections | ProPress |
| UPC | 085267529662 |
| Shipping Weight | 2.5 lb |
| Controlled Media | Non Potable Water |
| Re-Circulation | No |
| Color | Metallic |
| Includes | Check Valves on Hot and Cold Inlets |
| Product Height | 6.2 in, 157 mm |
| Product Length | 6.3 in, 160 mm |
| Manufacturer Warranty | 1 Year |
| Adjustment Means | Handwheel |
| Cold Inlet Temperature (Min) | 39 °F, 27 °C |
| Cold Inlet Temperature (Max) | 80 °F, 27 °C |
| Flex Connector Included | No |
| Flow Coefficient | 3.9 Cv |
| Flow Rate (Min) | 0.50 gpm, 1.9 lpm |
| Flow Rate (Max) | 12 gpm, 45.4 lpm |
| Hot Inlet Temperature (Min) | 120 °F, 49 °C |
| Hot Inlet Temperature (Max) | 180 °F, 82 °C |
| Lead Free | No |
| Media Temperature (Max) | 212 °F, 100 °C |
| Number of Check Valves | 2 |
| Operating Mixing Temperature (Min) | 70 °F, 21 °C |
| Operating Mixing Temperature (Max) | 180 °F, 82 °C |
| Operating Pressure (Max) | 150 psi, 1034 kPa |
| Seal Material | EPDM Rubber |
| Valve Body Material | Teflon-coated, Nickel-plated Brass |
| Connection Size | 3/4 in |
| Connection Type | Union ProPress |
| Nominal Diameter | DN20 |
| Number of Connections | 3 |
| Valve Body Pattern | Straight Through |
