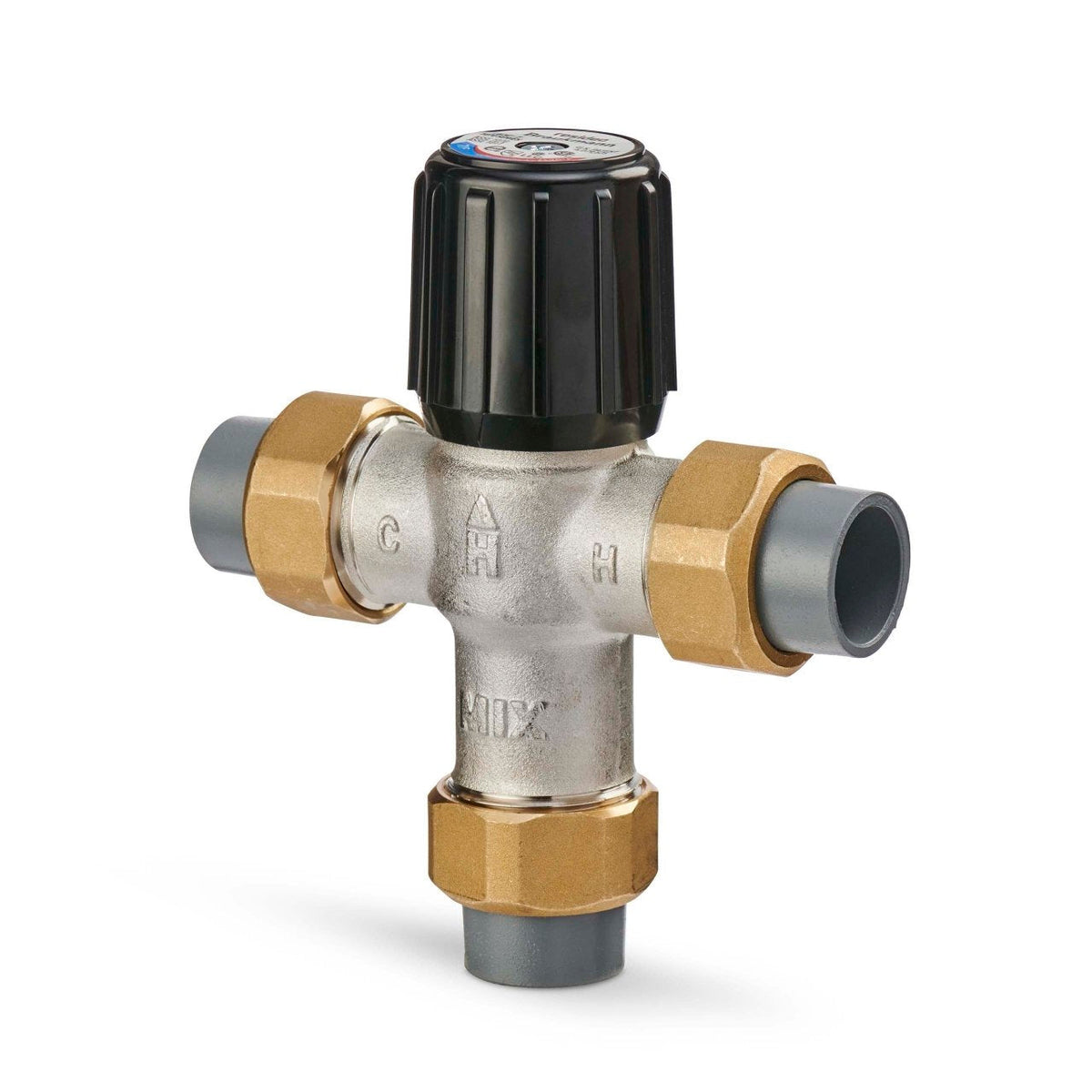

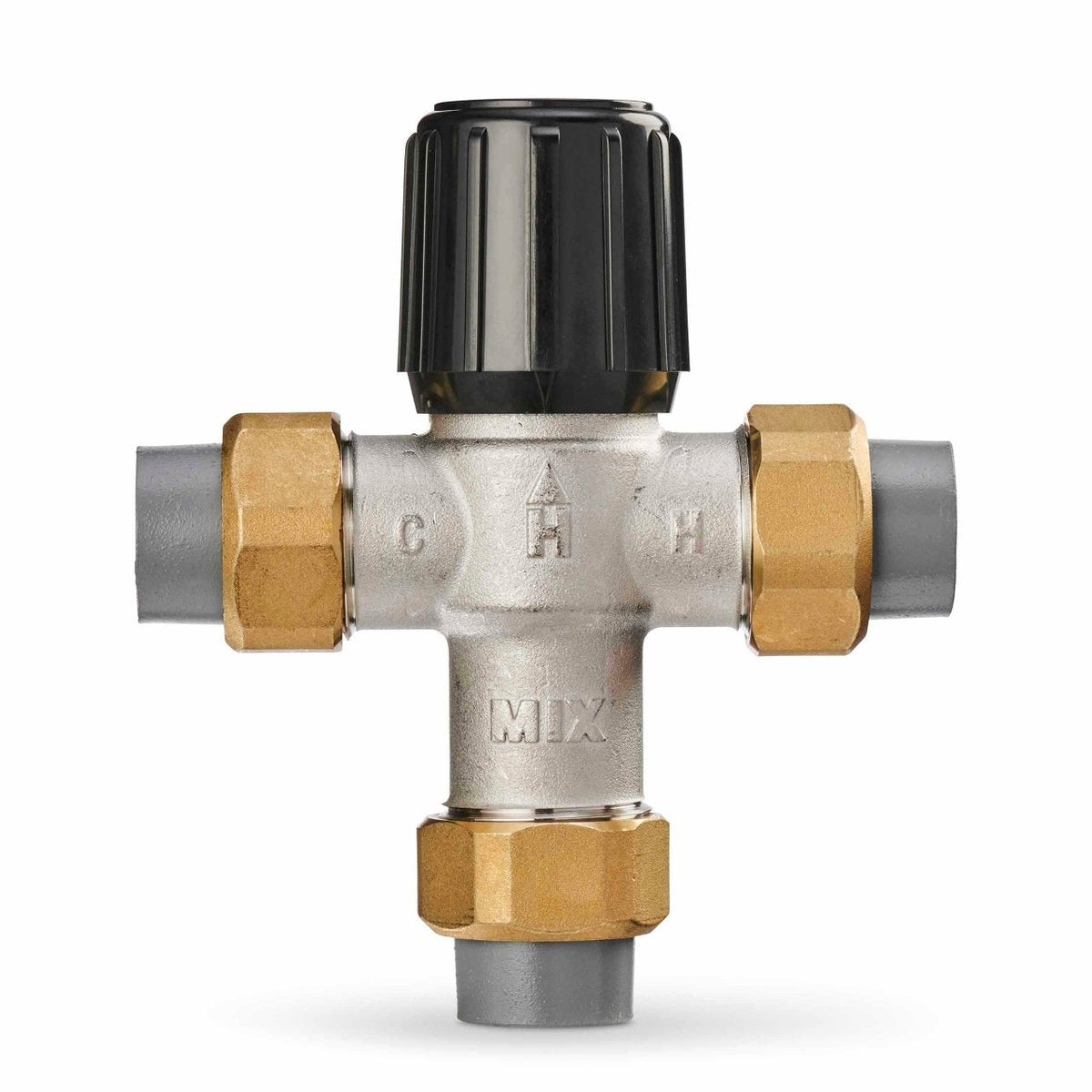

AM101C1070UCPVC1LF AM-1 Lead Free Mixing Valve, 3/4 in CPVC Union, 80–120°F, ASSE 1070
AM101C1070UCPVC1LF AM-1 Lead Free Mixing Valve, 3/4 in CPVC Union, 80–120°F, ASSE 1070

AM101C1070UCPVC1LF AM-1 Lead Free Mixing Valve, 3/4 in CPVC Union, 80–120°F, ASSE 1070

Part #
AM101C1070UCPVC1LF
UPC
085267337731
$171.69

Available · ships in 1–2 business days

Free shipping to the contiguous US. No minimum.

Size
3/4 in
Material
Teflon-coated, Nickel-plated Brass
Connection
Union CPVC
Finish
Metallic

Full specifications 5 manufacturer documents

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Gas, electrical and venting work should be done by a licensed professional.

  • 30-day returnsWithin 30 days, in the original packaging
  • Help from real peopleCall or email us before or after you order
  • Secure checkoutCard details never touch our servers
Need help matching a part?Call +1 (219) 319-0174 · Mon–Fri, 8 am – 5 pm ET

Product details

AM101C1070UCPVC1LF — AM-1 Lead Free Mixing Valve, 3/4 in CPVC Union, 80–120°F, ASSE 1070.

Thermostatic mixing valves blend hot and cold to a set outlet temperature, protecting against scalding while letting you store water hotter. Lead-free models are for potable water; heating-only models are for hydronic loops.

Specifications

Part Number AM101C1070UCPVC1LF
Controlled Media Potable Water, Non Potable Water
Re-Circulation No
Approvals and Standards ASSE 1017 Certified, ASSE 1070 Certified, IAPMO Listed
Color Metallic
Includes Check Valves on Hot and Cold Inlets
Product Height 5.8 in, 147.32 mm
Product Length 4.7 in, 119.4 mm
Manufacturer Warranty 1 Year
Adjustment Means Handwheel
Cold Inlet Temperature (Min) 39 °F, 27 °C
Cold Inlet Temperature (Max) 80 °F, 27 °C
Flex Connector Included No
Flow Coefficient 1.8 Cv
Flow Rate (Min) 0.50 gpm, 1.9 lpm
Hot Inlet Temperature (Min) 120 °F, 49 °C
Hot Inlet Temperature (Max) 180 °F, 82 °C
Lead Free Yes
Media Temperature (Max) 180 °F, 82 °C
Number of Check Valves 2
Operating Mixing Temperature (Min) 70 °F, 21 °C
Operating Mixing Temperature (Max) 120 °F, 49 °C
Operating Pressure (Max) 100 psi, 689.5 kPa
Seal Material EPDM Rubber
Valve Body Material Teflon-coated, Nickel-plated Brass
Connection Size 3/4 in
Connection Type Union CPVC
Nominal Diameter DN20
Number of Connections 3
Valve Body Pattern Straight Through
UPC 085267337731
Country of Origin MX
