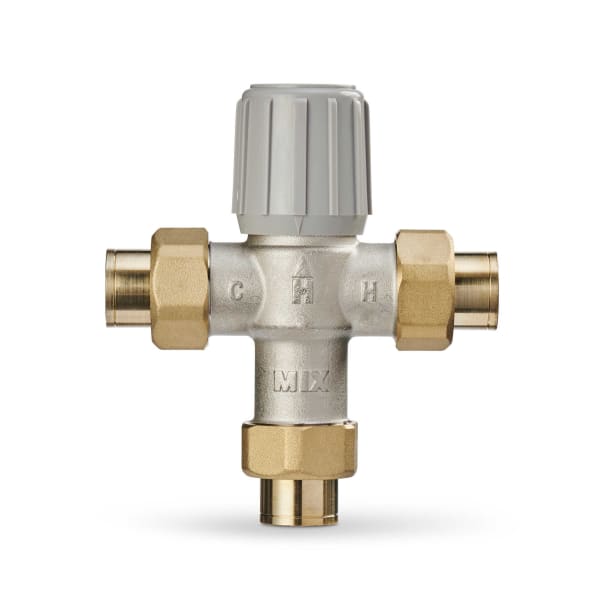

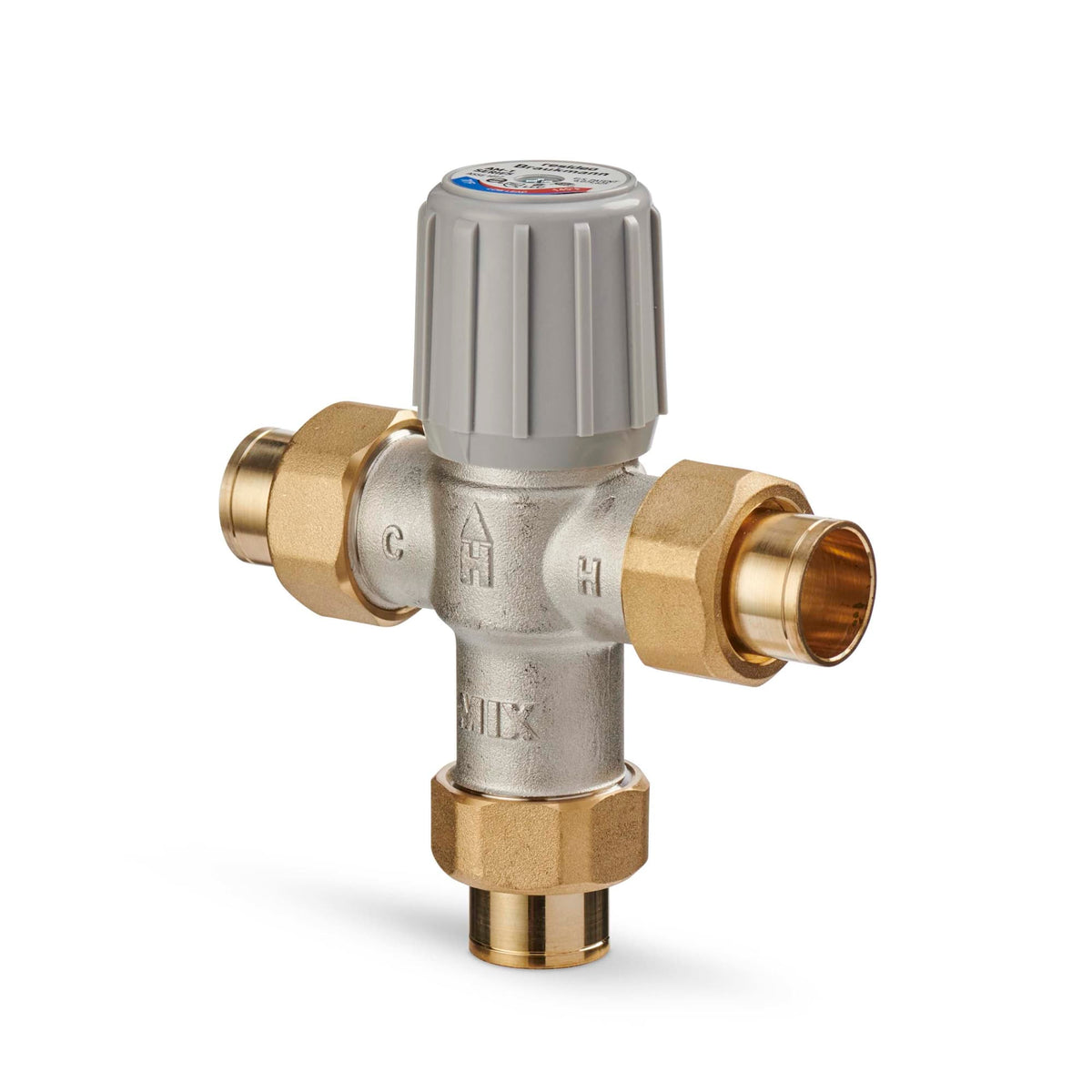

AM100-US-1LF/U 1/2 in Union Sweat Mixing Valve LF - STD
AM100-US-1LF/U 1/2 in Union Sweat Mixing Valve LF - STD

AM100-US-1LF/U 1/2 in Union Sweat Mixing Valve LF - STD

Part #
AM100-US-1LF/U
UPC
085267337694
$145.60

Available · ships in 1–2 business days

Free shipping to the contiguous US. No minimum.

Size
1/2 in
Material
Teflon-coated, Nickel-plated Brass
Connection
sweat
Finish
Metallic

Full specifications 5 manufacturer documents

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Gas, electrical and venting work should be done by a licensed professional.

  • 30-day returnsWithin 30 days, in the original packaging
  • Help from real peopleCall or email us before or after you order
  • Secure checkoutCard details never touch our servers
Need help matching a part?Call +1 (219) 319-0174 · Mon–Fri, 8 am – 5 pm ET

Product details

AM100-US-1LF/U — 1/2 in Union Sweat Mixing Valve LF - STD.

Thermostatic mixing valves blend hot and cold to a set outlet temperature, protecting against scalding while letting you store water hotter. Lead-free models are for potable water; heating-only models are for hydronic loops.

Specifications

Part Number AM100-US-1LF/U
Type Thermostatic mixing valve
Size 1/2 in
Connections sweat
Lead free Yes
UPC 085267337694
Shipping Weight 2.0 lb
Controlled Media Potable Water, Non Potable Water
Re-Circulation No
Approvals and Standards ASSE 1017 Certified, CSA Listed, IAPMO Listed
Color Metallic
Includes Check Valves on Hot and Cold Inlets
Product Height 5.4 in, 137.2 mm
Product Length 4.6 in, 117 mm
Manufacturer Warranty 1 Year
Adjustment Means Handwheel
Cold Inlet Temperature (Min) 39 °F, 27 °C
Cold Inlet Temperature (Max) 80 °F, 27 °C
Flex Connector Included No
Flow Coefficient 3.9 Cv
Flow Rate (Min) 0.50 gpm, 1.9 lpm
Hot Inlet Temperature (Min) 120 °F, 49 °C
Hot Inlet Temperature (Max) 180 °F, 82 °C
Media Temperature (Max) 212 °F, 100 °C
Number of Check Valves 2
Operating Mixing Temperature (Min) 70 °F, 21 °C
Operating Mixing Temperature (Max) 145 °F, 63 °C
Operating Pressure (Max) 150 psi, 1034 kPa
Seal Material EPDM Rubber
Valve Body Material Teflon-coated, Nickel-plated Brass
Connection Size 1/2 in
Connection Type Union Sweat
Nominal Diameter DN15
Number of Connections 3
Valve Body Pattern Straight Through
