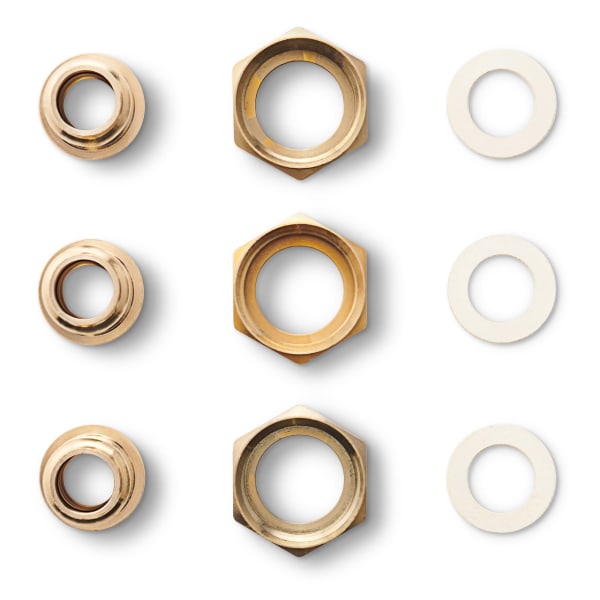

AM1-TAIL101-3UP-LF 3/4 in Low Lead AM1 Valve Tail Piece (3 Unions and Press Fittings)
- Part #
- AM1-TAIL101-3UP-LF
- UPC
- 085267853996
$114.47
Available · ships in 1–2 business days
Free shipping to the contiguous US. No minimum.
Delivery estimate
- Order
- Ships
- Arrives
Estimate for ground shipping within the contiguous US.
- Size
- 3/4 in
- Connection
- Union ProPress
Full specifications 3 manufacturer documents
Gas, electrical and venting work should be done by a licensed professional.
- 30-day returnsWithin 30 days, in the original packaging
- Help from real peopleCall or email us before or after you order
- Secure checkoutCard details never touch our servers
Product details
AM1-TAIL101-3UP-LF — 3/4 in Low Lead AM1 Valve Tail Piece (3 Unions and Press Fittings).
Thermostatic mixing valves blend hot and cold to a set outlet temperature, protecting against scalding while letting you store water hotter. Lead-free models are for potable water; heating-only models are for hydronic loops.
Specifications
| Part Number | AM1-TAIL101-3UP-LF |
|---|---|
| Type | Mixing valve service part |
| Size | 3/4 in |
| UPC | 085267853996 |
| Application | Heat Pump Systems |
| For Use With | 3/4 in. AM1 mixing valves |
| Connection Size | 3/4 in. |
| Connection Type | Union ProPress |
| Includes | 3 Tailpieces, 3 Nuts, 3 Gaskets |
