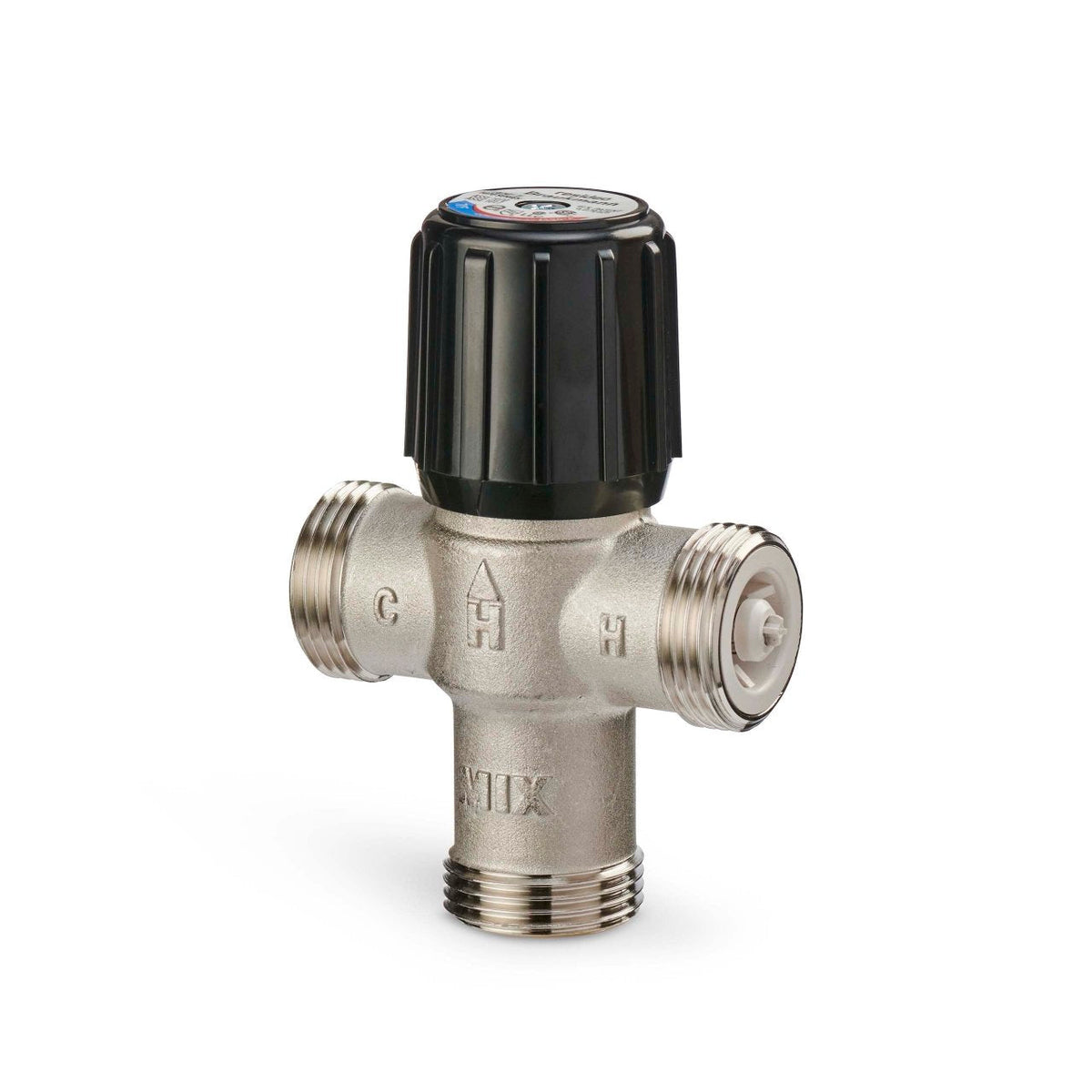

AM1-1070BODY-1LF/U AM-1 Mixing Valve Body Only, C1070, 70–120°F
AM1-1070BODY-1LF/U AM-1 Mixing Valve Body Only, C1070, 70–120°F

AM1-1070BODY-1LF/U AM-1 Mixing Valve Body Only, C1070, 70–120°F

Part #
AM1-1070BODY-1LF/U
UPC
194159013377
$112.04

Available · ships in 1–2 business days

Free shipping to the contiguous US. No minimum.

Size
Will work with 1/2"", 3/4"" and 1"" fittings
Material
Nickel-plated Brass, Teflon-coated
Connection
Male NPT
Finish
Silver Grey

Full specifications 5 manufacturer documents

Gas, electrical and venting work should be done by a licensed professional.

  • 30-day returnsWithin 30 days, in the original packaging
  • Help from real peopleCall or email us before or after you order
  • Secure checkoutCard details never touch our servers
Need help matching a part?Call +1 (219) 319-0174 · Mon–Fri, 8 am – 5 pm ET

Product details

AM1-1070BODY-1LF/U — AM-1 Mixing Valve Body Only, C1070, 70–120°F.

Thermostatic mixing valves blend hot and cold to a set outlet temperature, protecting against scalding while letting you store water hotter. Lead-free models are for potable water; heating-only models are for hydronic loops.

Specifications

Part Number AM1-1070BODY-1LF/U
Controlled Media Potable Water, Non Potable Water
Re-Circulation No
Approvals and Standards NSF/ANSI, IAPMO, CSA Certified
Color Silver Grey
Includes Check Valve
Manufacturer Warranty 1 Year
Ambient Operating Temperature (Min) 70 °F, 21 °C
Ambient Operating Temperature (Max) 120 °F, 49 °C
Cold Inlet Temperature (Min) 39 °F, 4 °C
Cold Inlet Temperature (Max) 80 °F, 27 °C
Flow Coefficient 1.8 Cv
Flow Rate (Min) 0.5 gpm, 1.9 lpm
Hot Inlet Temperature (Min) 120 °F, 40 °C
Hot Inlet Temperature (Max) 180 °F, 82 °C
Lead Free Yes
Operating Mixing Temperature (Min) 70 °F, 21 °C
Operating Mixing Temperature (Max) 120 °F, 49 °C
Operating Pressure (Max) 150 psi, 1034 kPa
Valve Body Material Nickel-plated Brass, Teflon-coated
Valve Packing Material EPDM O-rings
Connection Size Will work with 1/2"", 3/4"" and 1"" fittings
Connection Type Male NPT
Valve Body Pattern Three-way
UPC 194159013377
Country of Origin MX
