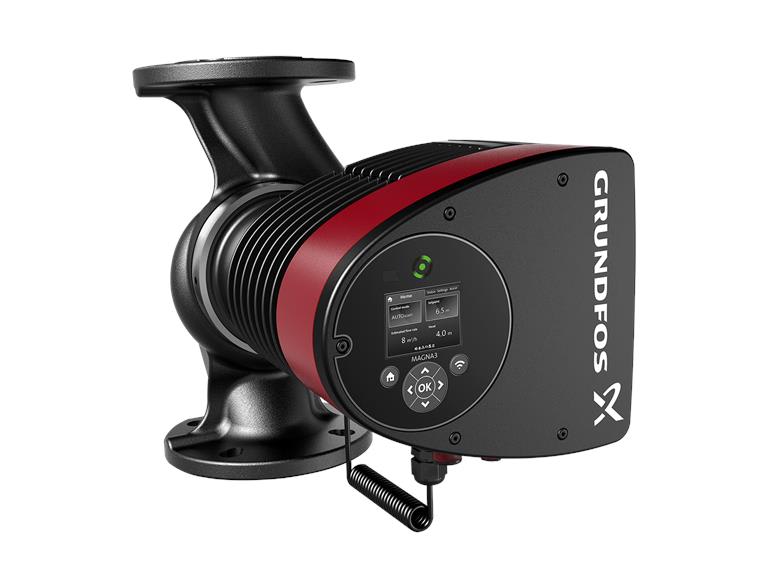

98126828 MAGNA3 40-80 F Variable Speed ECM Circulator, Cast Iron, Flanged, 1/3 HP, 208-230V
- Part #
- 98126828
- UPC
- 5710629499905
$3,298.99
Available · ships in 1–2 business days
Free shipping to the contiguous US. No minimum.
Delivery estimate
- Order
- Ships
- Arrives
Estimate for ground shipping within the contiguous US.
- Material
- Cast Iron
- Connection
- Flanged x flanged
Gas, electrical and venting work should be done by a licensed professional.
- 30-day returnsWithin 30 days, in the original packaging
- Help from real peopleCall or email us before or after you order
- Secure checkoutCard details never touch our servers
Product details
98126828 — MAGNA3 40-80 F Variable Speed ECM Circulator, Cast Iron, Flanged, 1/3 HP, 208-230V.
Wet-rotor circulators, ECM variable-speed pumps, replacement cartridges and flanges for hydronic heating and cooling loops.
Specifications
| Part Number | 98126828 |
|---|---|
| Series | MAGNA3 |
| Model | MAGNA3 40-80 F |
| Type | Variable speed ECM circulator |
| Body Material | Cast Iron |
| Connections | Flanged x flanged |
| Max Head | 27 ft |
| Max Flow | 81 GPM |
| Max Pressure | 175 psi |
| Temperature Range | 14°F to 230°F |
| Voltage | 208/230V, 1 phase, 60 Hz |
| Horsepower | 1/3 HP |
| UPC | 5710629499905 |
