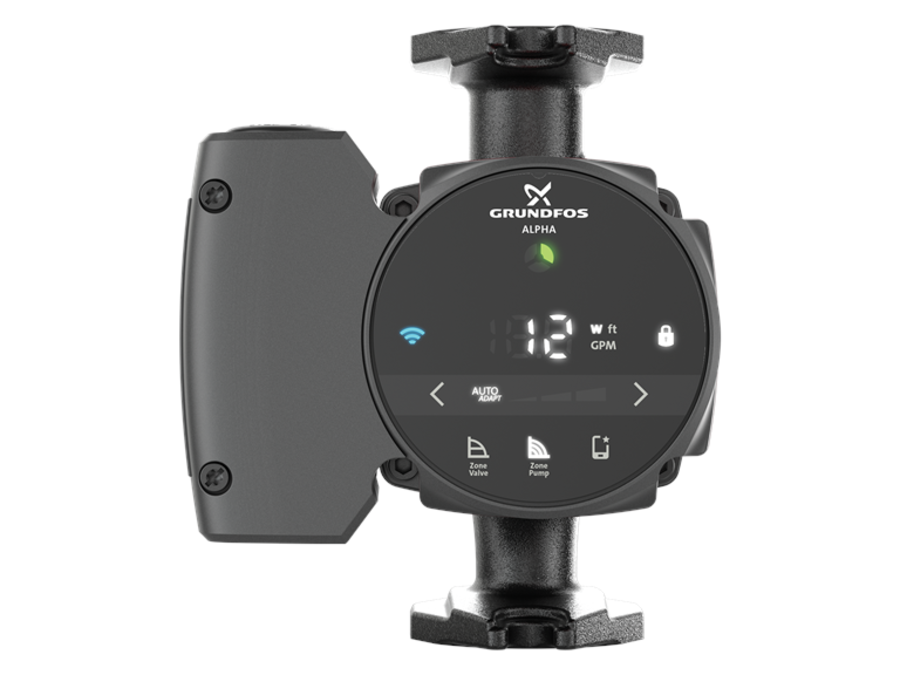

92603108 ALPHA 15-58FR Variable Speed ECM Circulator, Rotated Flange, Cast Iron, 115V, 6-1/2" Port to Port

92603108 ALPHA 15-58FR Variable Speed ECM Circulator, Rotated Flange, Cast Iron, 115V, 6-1/2" Port to Port

Part #
92603108
UPC
5715116925202
$462.99

Available · ships in 1–2 business days

Free shipping to the contiguous US. No minimum.

Material
Cast Iron
Connection
2-bolt flange, rotated (reversed)

Full specifications 3 manufacturer documents

Gas, electrical and venting work should be done by a licensed professional.

  • 30-day returnsWithin 30 days, in the original packaging
  • Help from real peopleCall or email us before or after you order
  • Secure checkoutCard details never touch our servers
Need help matching a part?Call +1 (219) 319-0174 · Mon–Fri, 8 am – 5 pm ET

Product details

92603108 — ALPHA 15-58FR Variable Speed ECM Circulator, Rotated Flange, Cast Iron, 115V, 6-1/2" Port to Port.

Wet-rotor circulators, ECM variable-speed pumps, replacement cartridges and flanges for hydronic heating and cooling loops.

Specifications

Part Number 92603108
Series ALPHA
Model ALPHA 15-58FR
Type Variable speed ECM circulator
Body Material Cast Iron
Connections 2-bolt flange, rotated (reversed)
Port-to-Port Length 6-1/2"
Flow Rate 17 GPM
Max Head 19 ft
Max Pressure 175 psi
Voltage 115V
Amperage 0.71 A
Wattage 38 W
Horsepower 1/20 HP
Control Modes AUTOADAPT, proportional pressure, constant pressure, constant speed (3 settings each)
UPC 5715116925202

Ratings & details

  • Installation & Operation Manual (PDF)
  • Installation Guide (PDF)
  • Instruction Manual (PDF)
  • Specification Sheet (PDF)

Manufacturer documents
