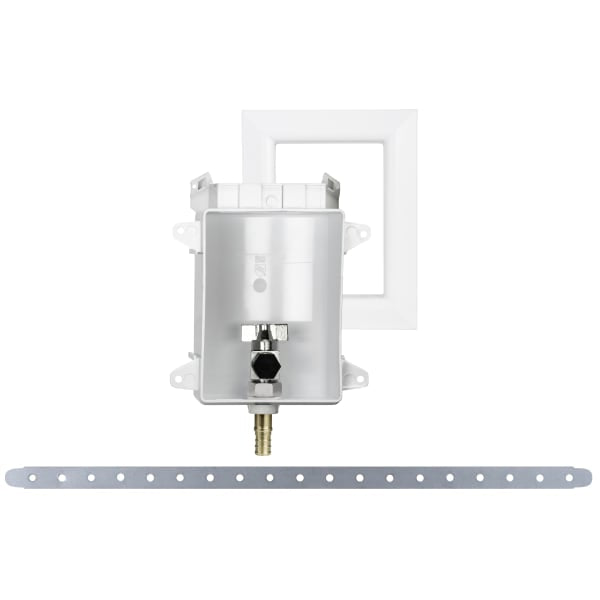

696RG1001XF OxBox Toilet-Dishwasher Box, Fire Rated with Frame, F1807
- Part #
- 696RG1001XF
- UPC
- 739236100450
- Type
- Supply Lines
$72.82
Available · ships in 1–2 business days
Free shipping to the contiguous US. No minimum.
Delivery estimate
- Order
- Ships
- Arrives
Estimate for ground shipping within the contiguous US.
- 30-day returnsWithin 30 days, in the original packaging
- Help from real peopleCall or email us before or after you order
- Secure checkoutCard details never touch our servers
Product details
696RG1001XF — OxBox Toilet-Dishwasher Box, Fire Rated with Frame, F1807.
Angle and straight stops, supply lines and connectors for sinks, toilets, dishwashers and ice makers.
Specifications
| Part Number | 696RG1001XF |
|---|---|
| Outlets | 3/8" OD compression |
| Arrester | No |
| Inlet | 1/2" PEX F1807 |
| Fire-rated | Yes, listed by Warnock Hersey to ASTM E814 and CAN/ULC S115 |
| Frame | Included |
| Standards | ASME A112.18.1, CSA B125.1, NSF/ANSI 14, NSF/ANSI/CAN 372, NSF/ANSI/CAN 61, IAPMO PS 54 |
| UPC | 739236100450 |
| Shipping Weight | 1.394 lb |
