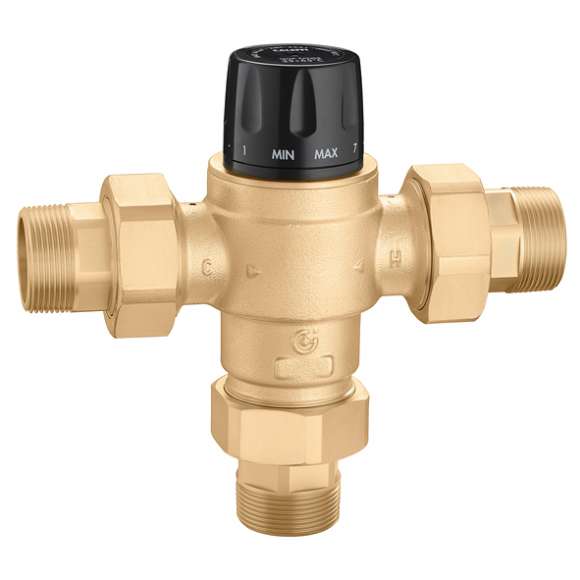

523170A MixCal+ High-Flow 3-Way Thermostatic Mixing Valve, 1-1/4" Male NPT, 7.6 Cv, ASSE 1017, Lead Free
- Part #
- 523170A
- UPC
- 8016615471304
$1,395.99
Available · ships in 1–2 business days
Free shipping to the contiguous US. No minimum.
Delivery estimate
- Order
- Ships
- Arrives
Estimate for ground shipping within the contiguous US.
- Size
- 1-1/4"
- Material
- Brass
- Connection
- MNPT x MNPT
Gas, electrical and venting work should be done by a licensed professional.
- 30-day returnsWithin 30 days, in the original packaging
- Help from real peopleCall or email us before or after you order
- Secure checkoutCard details never touch our servers
Product details
523170A — MixCal+ High-Flow 3-Way Thermostatic Mixing Valve, 1-1/4" Male NPT, 7.6 Cv, ASSE 1017, Lead Free.
Thermostatic mixing valves blend hot and cold to a set outlet temperature, protecting against scalding while letting you store water hotter. Lead-free models are for potable water; heating-only models are for hydronic loops.
Specifications
| Part Number | 523170A |
|---|---|
| Series | MixCal+ High Flow |
| Type | 3-Way Thermostatic Mixing Valve |
| Size | 1-1/4" |
| Connections | MNPT x MNPT |
| Material | Brass |
| Flow Capacity (Cv) | 7.6 |
| Min Flow | 4.4 GPM |
| Max Flow | 70 GPM |
| Max Temperature | 195°F |
| Max Pressure | 200 psi |
| Application | Point of source |
| Standards | ASSE 1017 |
| Lead Free | Yes |
| UPC | 8016615471304 |
Ratings & details
- Technical Data Sheet (PDF)
- Installation & Operation Manual (PDF)
- Submittal Sheet (PDF)
- Technical Bulletin (PDF)
