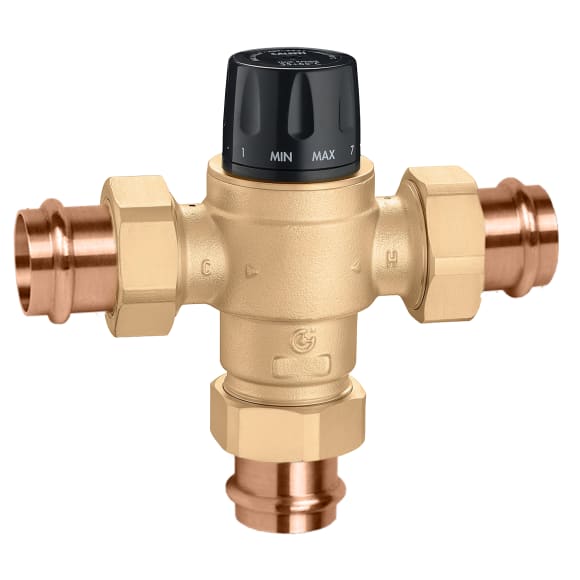

523166A MixCal+ High-Flow 3-Way Thermostatic Mixing Valve, 1" Press, 7 Cv, ASSE 1017
- Part #
- 523166A
- UPC
- 8016615617108
$1,360.99
Available · ships in 1–2 business days
Free shipping to the contiguous US. No minimum.
Delivery estimate
- Order
- Ships
- Arrives
Estimate for ground shipping within the contiguous US.
- Size
- 1"
- Material
- Brass
- Connection
- Press x Press
Gas, electrical and venting work should be done by a licensed professional.
- 30-day returnsWithin 30 days, in the original packaging
- Help from real peopleCall or email us before or after you order
- Secure checkoutCard details never touch our servers
Product details
523166A — MixCal+ High-Flow 3-Way Thermostatic Mixing Valve, 1" Press, 7 Cv, ASSE 1017.
Thermostatic mixing valves blend hot and cold to a set outlet temperature, protecting against scalding while letting you store water hotter. Lead-free models are for potable water; heating-only models are for hydronic loops.
Specifications
| Part Number | 523166A |
|---|---|
| Series | MixCal+ High Flow |
| Type | 3-Way Thermostatic Mixing Valve |
| Size | 1" |
| Connections | Press x Press |
| Material | Brass |
| Flow Capacity (Cv) | 7 |
| Min Flow | 4.4 GPM |
| Application | Point of source |
| Standards | ASSE 1017 |
| UPC | 8016615617108 |
Ratings & details
- Technical Data Sheet (PDF)
- Installation & Operation Manual (PDF)
- Submittal Sheet (PDF)
- Technical Bulletin (PDF)
