521506AC MixCal 3-Way Thermostatic Mixing Valve 3/4" Press with Inlet Check Valves, ASSE 1017, 3 Cv
- Part #
- 521506AC
- UPC
- 8016615551372
$275.99
Available · ships in 1–2 business days
Free shipping to the contiguous US. No minimum.
Delivery estimate
- Order
- Ships
- Arrives
Estimate for ground shipping within the contiguous US.
- Size
- 3/4"
- Material
- Brass
- Connection
- 3/4" press
Gas, electrical and venting work should be done by a licensed professional.
- 30-day returnsWithin 30 days, in the original packaging
- Help from real peopleCall or email us before or after you order
- Secure checkoutCard details never touch our servers
Product details

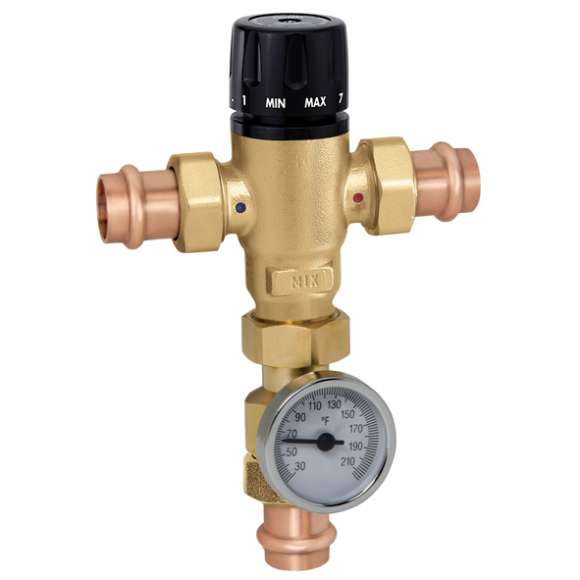

521506AC — MixCal 3-Way Thermostatic Mixing Valve 3/4" Press with Inlet Check Valves, ASSE 1017, 3 Cv.
Thermostatic mixing valves blend hot and cold to a set outlet temperature, protecting against scalding while letting you store water hotter. Lead-free models are for potable water; heating-only models are for hydronic loops.
Specifications
| Part Number | 521506AC |
|---|---|
| Series | MixCal (521 series) |
| Type | 3-way thermostatic mixing valve |
| Size | 3/4" |
| Connections | 3/4" press |
| Material | Brass |
| Flow Capacity (Cv) | 3 |
| Temperature Range | 85°F to 150°F |
| Max Pressure | 200 psi |
| Standards | ASSE 1017 |
| Features | Inlet check valves |
| UPC | 8016615551372 |
Ratings & details
- Technical Data Sheet (PDF)
- Installation & Operation Manual (PDF)
- Submittal Sheet (PDF)
- Product Brochure (PDF)
