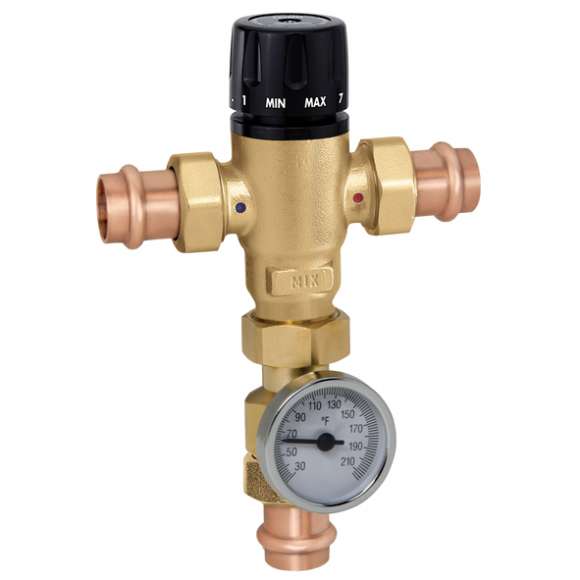

521416A MixCal 3-Way Thermostatic Mixing Valve 1/2" Press with Temperature Gauge, ASSE 1017, 3 Cv
- Part #
- 521416A
- UPC
- 8016615551334
$255.99
Available · ships in 1–2 business days
Free shipping to the contiguous US. No minimum.
Delivery estimate
- Order
- Ships
- Arrives
Estimate for ground shipping within the contiguous US.
- Size
- 1/2"
- Material
- Brass
- Connection
- 1/2" press
Gas, electrical and venting work should be done by a licensed professional.
- 30-day returnsWithin 30 days, in the original packaging
- Help from real peopleCall or email us before or after you order
- Secure checkoutCard details never touch our servers
Product details
521416A — MixCal 3-Way Thermostatic Mixing Valve 1/2" Press with Temperature Gauge, ASSE 1017, 3 Cv.
Thermostatic mixing valves blend hot and cold to a set outlet temperature, protecting against scalding while letting you store water hotter. Lead-free models are for potable water; heating-only models are for hydronic loops.
Specifications
| Part Number | 521416A |
|---|---|
| Series | MixCal (521 series) |
| Type | 3-way thermostatic mixing valve |
| Size | 1/2" |
| Connections | 1/2" press |
| Material | Brass |
| Flow Capacity (Cv) | 3 |
| Temperature Range | 85°F to 150°F |
| Max Pressure | 200 psi |
| Standards | ASSE 1017 |
| Features | Temperature gauge |
| UPC | 8016615551334 |
