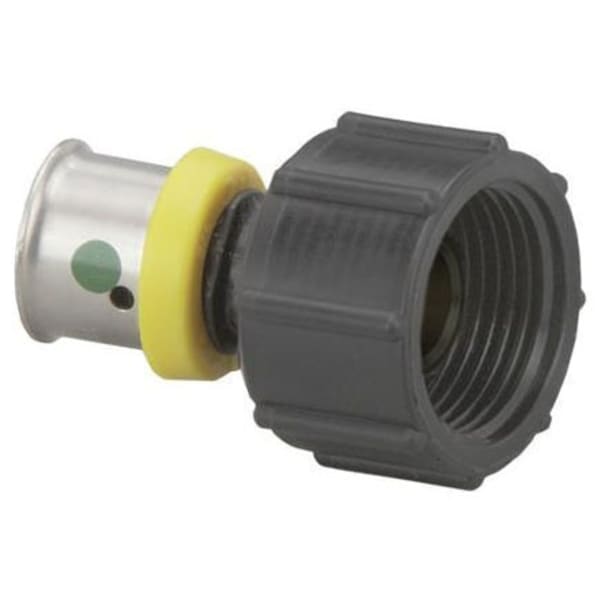

49234 1/2" PEX PureFlow Press Manifold Tee Port Adapter (Press x FIP) - Composite

49234 1/2" PEX PureFlow Press Manifold Tee Port Adapter (Press x FIP) - Composite

Part #
49234
UPC
691514492346
$4.70

Available · ships in 1–2 business days

Free shipping to the contiguous US. No minimum.

Size
1/2"
Material
PPSU polymer
Connection
Press x FIP

Full specifications

  • 30-day returnsWithin 30 days, in the original packaging
  • Help from real peopleCall or email us before or after you order
  • Secure checkoutCard details never touch our servers
Need help matching a part?Call +1 (219) 319-0174 · Mon–Fri, 8 am – 5 pm ET

Product details

49234 — 1/2" PEX PureFlow Press Manifold Tee Port Adapter (Press x FIP) - Composite.

Expansion (ASTM F1960), crimp (F1807) and press (F2159) fittings. Use the fitting system that matches your PEX and tool.

Specifications

Part Number 49234
System PureFlow Press
Size 1/2"
Type Manifold Tee Port Adapter
Connections Press x FIP
Material PPSU polymer
Press sleeve 304 stainless steel, factory attached, with view holes
Rating 160 psi at 73°F, 100 psi at 180°F
Temperature 180°F max potable, 200°F max hydronic
Listings ASTM F3347 / F3348, CSA B137.5, NSF-pw 372
UPC 691514492346
Shipping Weight 0.5 lb
Dimensions 1.89 x 1.417 x 1.417 in (L x W x H)
