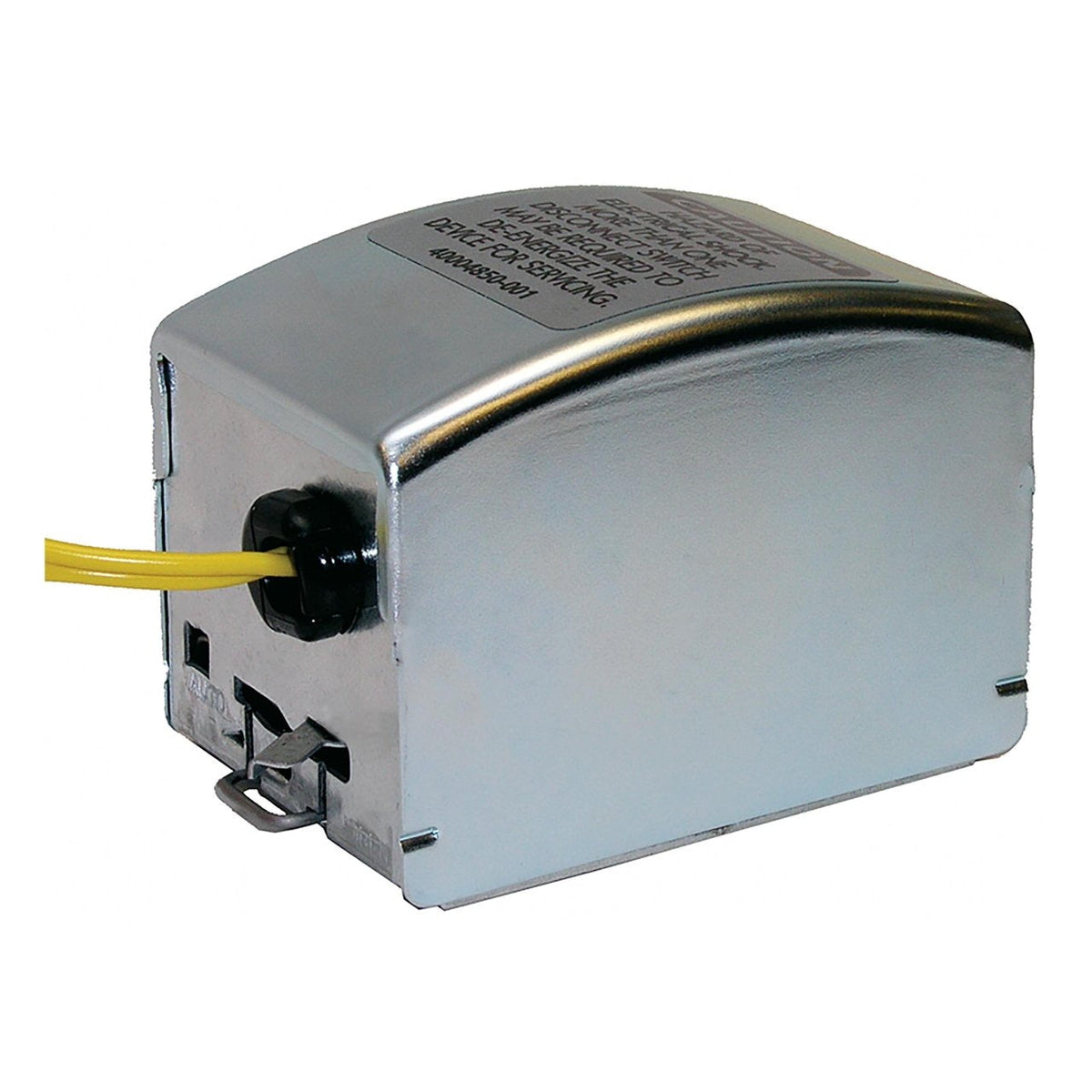

40003916-512/U Replacement Actuator for V8043G 5000/1000 Series Zone Valves, 2-Way, N.C., End Switch

40003916-512/U Replacement Actuator for V8043G 5000/1000 Series Zone Valves, 2-Way, N.C., End Switch

Part #
40003916-512/U
UPC
085267834001
$126.07

Available · ships in 1–2 business days

Free shipping to the contiguous US. No minimum.

Connection
Leadwire
Finish
Metallic

Full specifications 6 manufacturer documents

Gas, electrical and venting work should be done by a licensed professional.

  • 30-day returnsWithin 30 days, in the original packaging
  • Help from real peopleCall or email us before or after you order
  • Secure checkoutCard details never touch our servers
Need help matching a part?Call +1 (219) 319-0174 · Mon–Fri, 8 am – 5 pm ET

Product details

40003916-512/U — Replacement Actuator for V8043G 5000/1000 Series Zone Valves, 2-Way, N.C., End Switch.

Motorized 2-way and 3-way zone valves, replacement heads and actuators that let one boiler heat several zones independently.

Specifications

Part Number 40003916-512/U
Application Replacement Powerhead for V8043G 5000 Series Zone Valve
For Use With V8043G Zone Valves
Compatible With V Series Zone Valves for hydronic heating
Manufacturer Warranty 5 years
Voltage 24V
Power Supply Frequency 50 Hz, 60 Hz
End Switch Function and Capacity Integral low voltage end switch
Fire and Smoke Rated No
Connection Length 18 in
Connection Type Leadwire
Color Metallic
UPC 085267834001
Country of Origin HU
