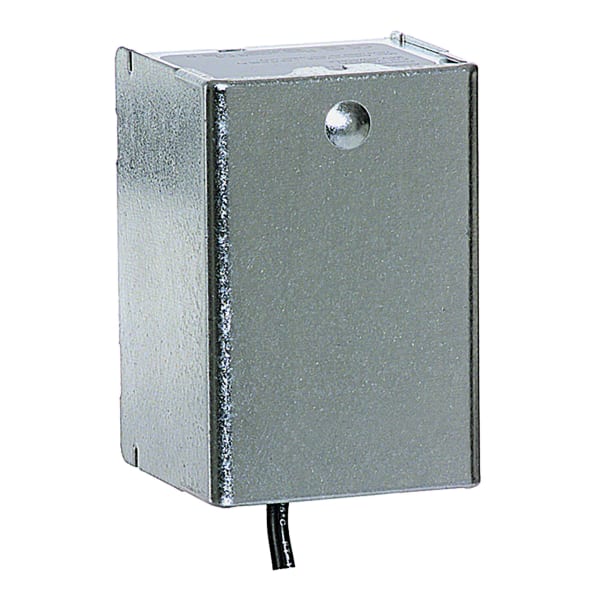

40003916-027/U Replacement Head for V8043B, 24 V AC, 50/60 Hz, Normally Open

40003916-027/U Replacement Head for V8043B, 24 V AC, 50/60 Hz, Normally Open

Part #
40003916-027/U
UPC
085267030793
$108.60

Available · ships in 1–2 business days

Free shipping to the contiguous US. No minimum.

Connection
Leads on same side of manual lever
Finish
Metallic

Full specifications 6 manufacturer documents

Gas, electrical and venting work should be done by a licensed professional.

  • 30-day returnsWithin 30 days, in the original packaging
  • Help from real peopleCall or email us before or after you order
  • Secure checkoutCard details never touch our servers
Need help matching a part?Call +1 (219) 319-0174 · Mon–Fri, 8 am – 5 pm ET

Product details

40003916-027/U — Replacement Head for V8043B, 24 V AC, 50/60 Hz, Normally Open.

Motorized 2-way and 3-way zone valves, replacement heads and actuators that let one boiler heat several zones independently.

Specifications

Part Number 40003916-027/U
Fits V8043B
Voltage 24 Vac
End switch No
Application Replacement Powerhead for V8043B Zone Valve
For Use With V8043B, Two-Way Valves, Valves with Action of Spring return to open
Compatible With V Series Zone Valves for hydronic heating
Manufacturer Warranty 5 years
Ambient Operating Temperature (Max) 125 °F, 52 °C
Supply Voltage 24 V AC
Power Supply Frequency 50 Hz, 60 Hz
Current Draw 0.32A
Fire and Smoke Rated No
Connection Length 18 in, 457 mm
Connection Type Leads on same side of manual lever
Color Metallic
