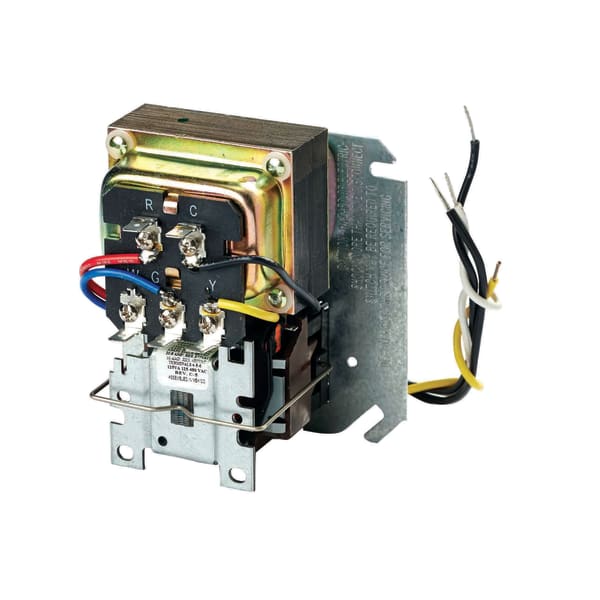

40 VA Fan Center with SPDT Switching Action R8285A1048/U
- Part #
- R8285A1048/U
- UPC
- 085267081153
$58.09
Available · ships in 1–2 business days
Free shipping to the contiguous US. No minimum.
Delivery estimate
- Order
- Ships
- Arrives
Estimate for ground shipping within the contiguous US.
Full specifications 3 manufacturer documents
Gas, electrical and venting work should be done by a licensed professional.
- 30-day returnsWithin 30 days, in the original packaging
- Help from real peopleCall or email us before or after you order
- Secure checkoutCard details never touch our servers
Product details
R8285A1048/U — 40 VA Fan Center with SPDT Switching Action.
Aquastats, switching relays, transformers, contactors, sensors and switches that tie thermostats, boilers and pumps together.
Specifications
| Part Number | R8285A1048/U |
|---|---|
| Type | Fan center (transformer + relay) |
| Transformer rating | 40 VA |
| Switch action | SPDT |
| UPC | 085267081153 |
| Application | SPDT switching for two-speed fan motor applications |
| Approvals and Standards | UL Component Recognized; File No. E4436, Vol.15, Sec.1, Guide No.XAPX2, CSA Certified: File No. LR95329-17 |
| Includes | R8222B |
| Coil Rating Voltage | Inrush 20 VA maximum, Sealed 9 VA |
| Operating Frequency | 60 Hz |
| Operating Voltage | 120 Vac |
| Manufacturer Warranty | 1 Year |
| Product Height | 4.19 in, 106 mm |
| Product Width | 4.5 in, 114 mm |
