Product details

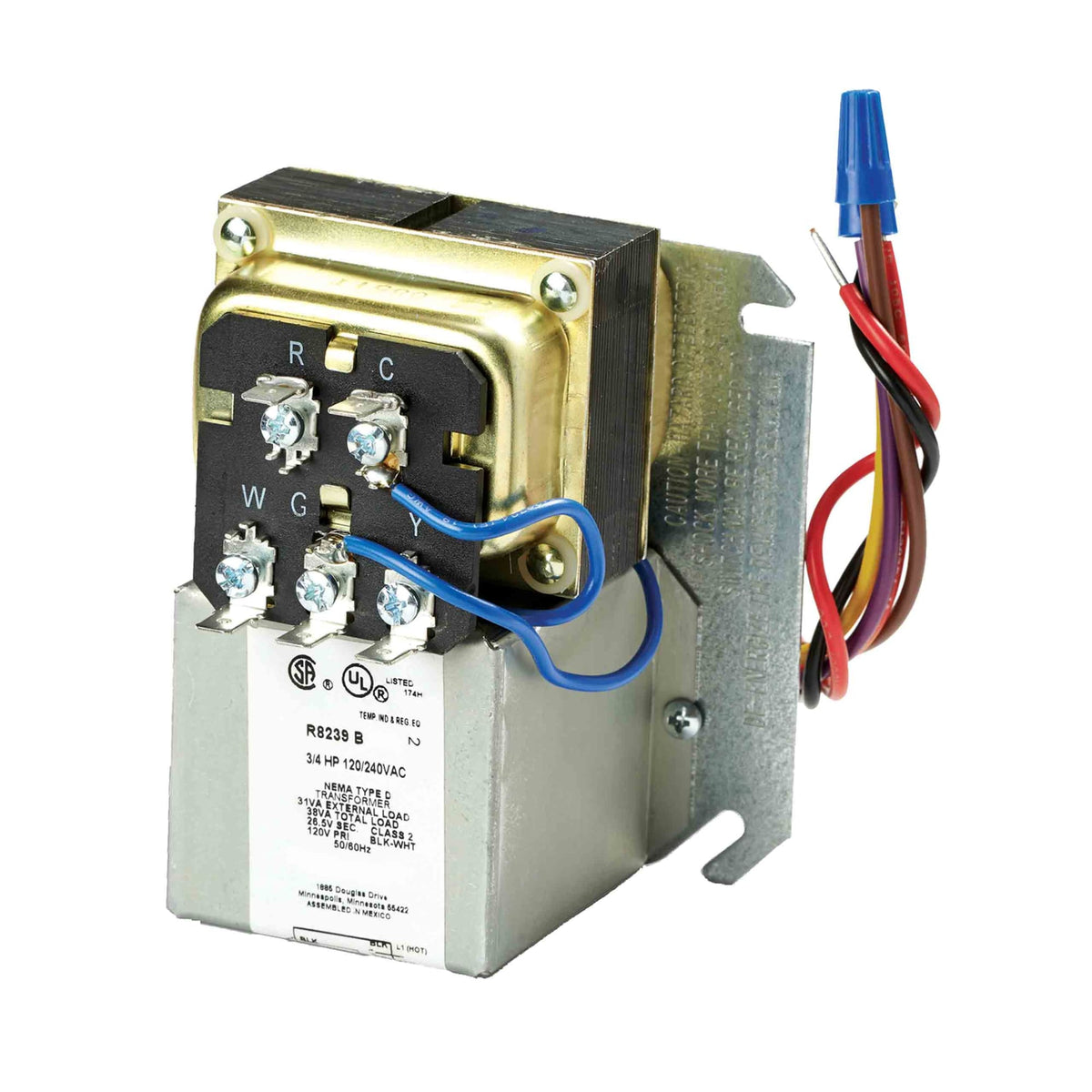

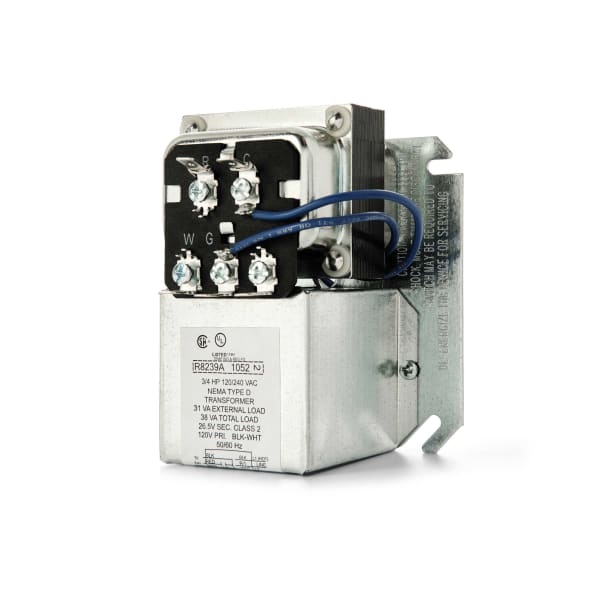

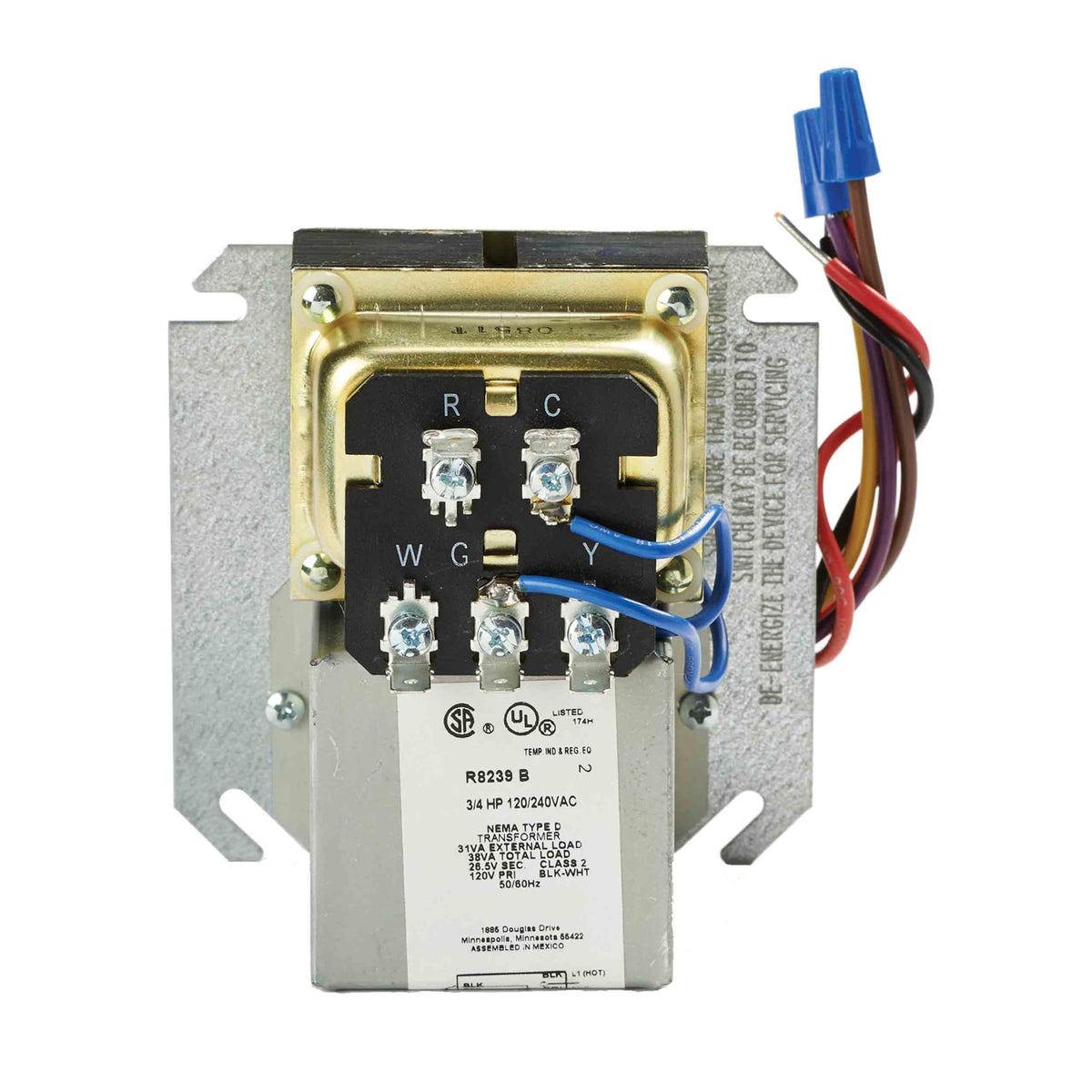

R8239A1052/U — 40 VA Fan Center with SPDT Switching Action.
Aquastats, switching relays, transformers, contactors, sensors and switches that tie thermostats, boilers and pumps together.
Specifications
| Part Number | R8239A1052/U |
|---|---|
| Type | Fan center (transformer + relay) |
| Transformer rating | 40 VA |
| Switch action | SPDT |
| UPC | 085267000420 |
| Application | Low voltage control of line voltage fan motors and auxiliary circuits in heating, cooling or heating-cooling systems |
| Approvals and Standards | NEMA Standard DC20 |
| Compatible With | Heating only, Cooling only, Heating and Cooling |
| Includes | Relay Enclosure, R8222B |
| Coil Rating Voltage | Inrush 20 VA maximum, Sealed 9 VA |
| Number of Poles | 1 Pole |
| In-Rush Voltage (Max) | 20 VA |
| In-Rush Voltage (Nominal) | 9 VA |
| Manufacturer Warranty | 1 Year |
| Product Height | 4.5 in, 114 mm |
| Product Length | 3.09 in, 79 mm |
| Product Width | 4.19 in, 106 mm |
