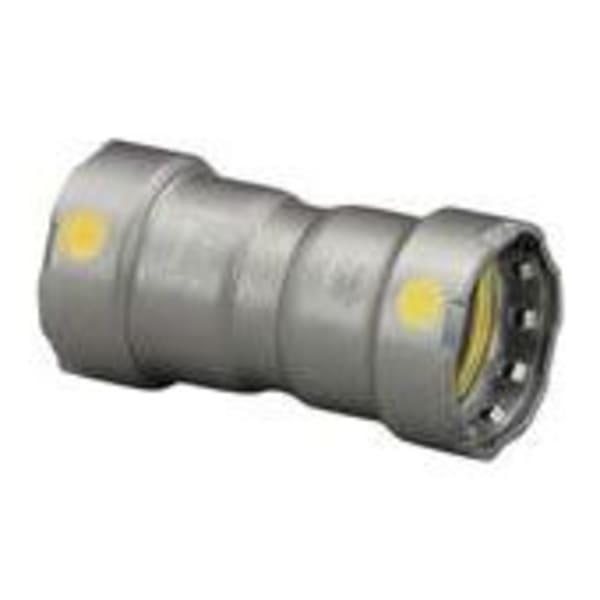

3/4" x 3/4" - (P-P) - Coupling, MegaPress®G 22009
- Part #
- 22009
- UPC
- 691514220093
$28.44
Available · ships in 1–2 business days
Free shipping to the contiguous US. No minimum.
Delivery estimate
- Order
- Ships
- Arrives
Estimate for ground shipping within the contiguous US.
- Size
- 3/4"
- Material
- Carbon steel, zinc-nickel coated
- Connection
- P x P
- 30-day returnsWithin 30 days, in the original packaging
- Help from real peopleCall or email us before or after you order
- Secure checkoutCard details never touch our servers
Product details
22009 — 3/4" x 3/4" - (P-P) - Coupling, MegaPress®G.
Carbon steel press fittings with gas-rated seals for fuel gas piping, pressed onto Schedule 10 to 40 steel pipe without threading.
Specifications
| Part Number | 22009 |
|---|---|
| System | MegaPressG |
| Size | 3/4" |
| Type | Coupling |
| Connections | P x P |
| Material | Carbon steel, zinc-nickel coated |
| Sealing element | HNBR (yellow) |
| Operating pressure | 125 psi max on fuel gas |
| Temperature | 40°F to 180°F |
| Pipe | ASTM A53 carbon steel, Schedule 10 to 40 (fuel gas) |
| Listings | ANSI LC 4a / CSA 6.32a, UL 180, ASTM F3226 |
| UPC | 691514220093 |
| Shipping Weight | 0.353 lb |
| Dimensions | 2.945 x 1.492 x 1.492 in (L x W x H) |
