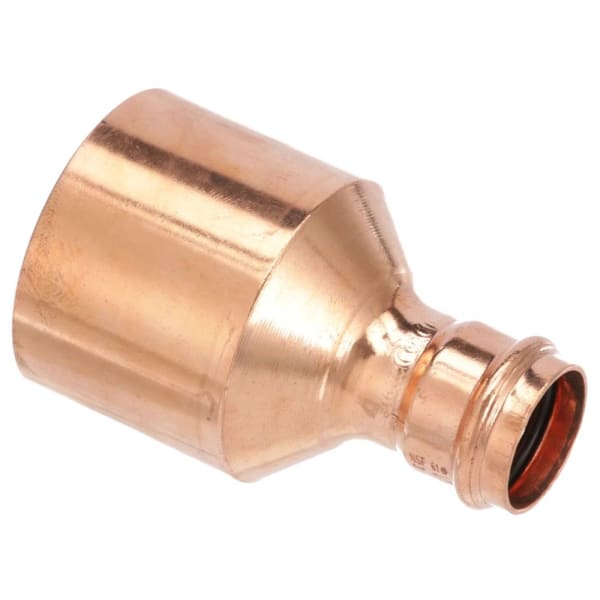

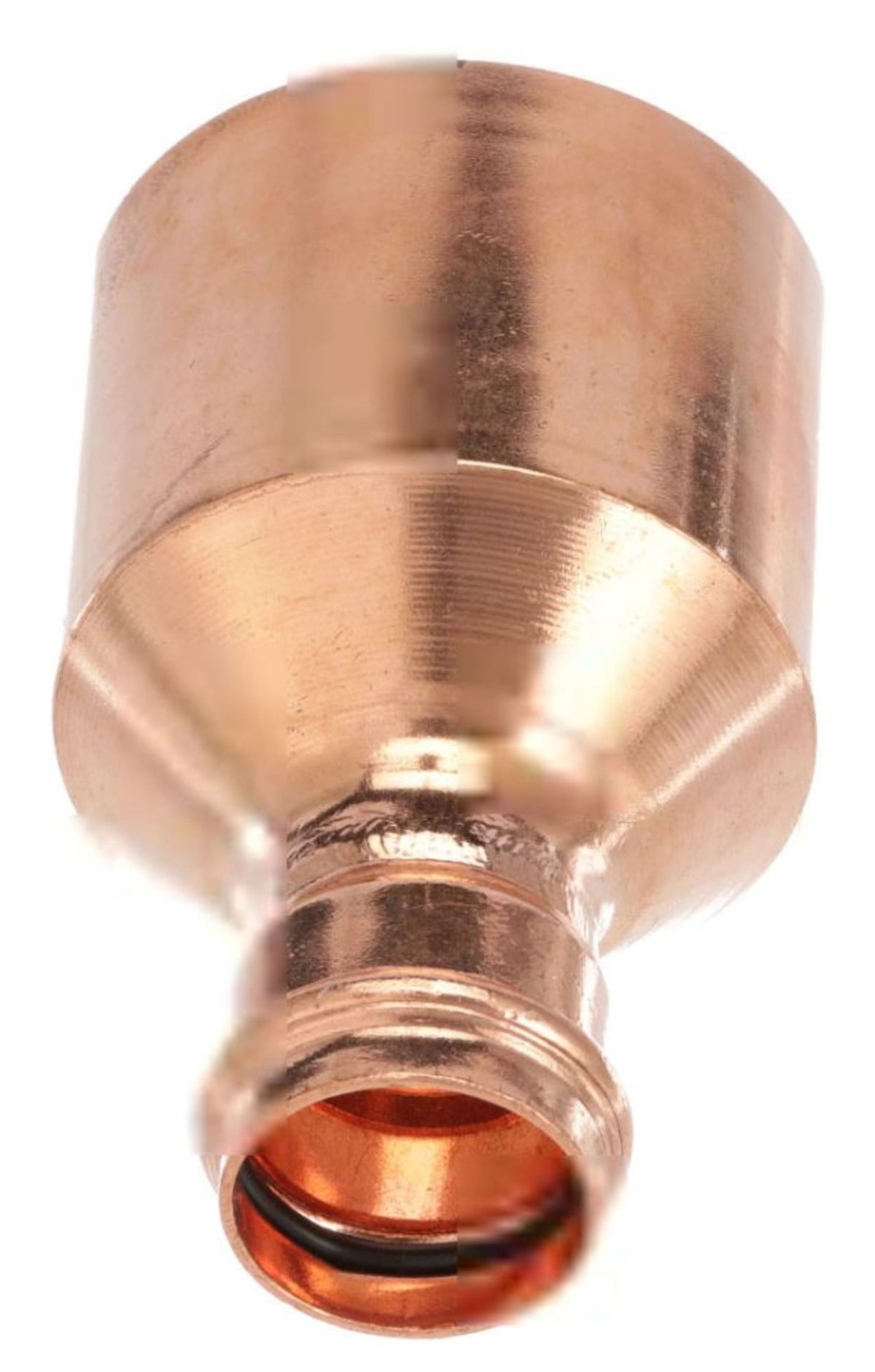

20817 3" x 1-1/4" - (FTG -P) - Fitting Reducer, ProPress®
20817 3" x 1-1/4" - (FTG -P) - Fitting Reducer, ProPress®

20817 3" x 1-1/4" - (FTG -P) - Fitting Reducer, ProPress®

Part #
20817
UPC
691514208176
$248.16

Available · ships in 1–2 business days

Free shipping to the contiguous US. No minimum.

Size
3" x 1-1/4"
Connection
FTG x P

Full specifications

  • 30-day returnsWithin 30 days, in the original packaging
  • Help from real peopleCall or email us before or after you order
  • Secure checkoutCard details never touch our servers
Need help matching a part?Call +1 (219) 319-0174 · Mon–Fri, 8 am – 5 pm ET

Product details

20817 — 3" x 1-1/4" - (FTG -P) - Fitting Reducer, ProPress®.

Copper press fittings make a permanent joint on copper tube in seconds with a press tool: no flame, no solder, and they work on wet lines. Use the jaw profile the fitting maker specifies.

Specifications

Part Number 20817
System ProPress
Size 3" x 1-1/4"
Type Fitting Reducer
Connections FTG x P
Material Copper (UNS C12200) or Zero Lead silicon bronze, depending on the fitting
Sealing element EPDM
Operating pressure 300 psi max
Temperature 0°F to 250°F
Listings ASME B16.51, NSF/ANSI 61 and 372, IAPMO Z1117, ASTM F3226
Tube ASTM B88 Type K, L or M copper
UPC 691514208176
Shipping Weight 1.008 lb
Dimensions 3.126 x 5 x 3.126 in (L x W x H)
