20685 2-1/2" x 1" - (P-P) - Reducer, ProPress®
20685 2-1/2" x 1" - (P-P) - Reducer, ProPress®

20685 2-1/2" x 1" - (P-P) - Reducer, ProPress®

Part #
20685
UPC
691514206851
$293.70

Available · ships in 1–2 business days

Free shipping to the contiguous US. No minimum.

Size
2-1/2" x 1"
Connection
P x P

Full specifications

  • 30-day returnsWithin 30 days, in the original packaging
  • Help from real peopleCall or email us before or after you order
  • Secure checkoutCard details never touch our servers
Need help matching a part?Call +1 (219) 319-0174 · Mon–Fri, 8 am – 5 pm ET

Product details

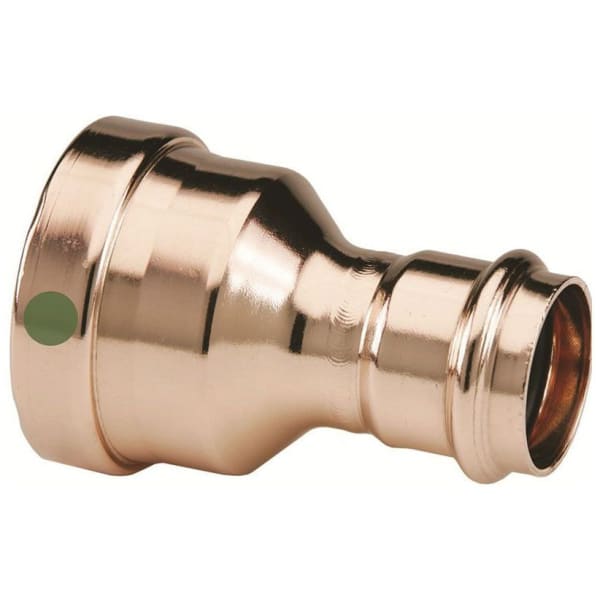

20685 — 2-1/2" x 1" - (P-P) - Reducer, ProPress®.

Copper press fittings make a permanent joint on copper tube in seconds with a press tool: no flame, no solder, and they work on wet lines. Use the jaw profile the fitting maker specifies.

Specifications

Part Number 20685
System ProPress
Size 2-1/2" x 1"
Type Reducer
Connections P x P
Material Copper (UNS C12200) or Zero Lead silicon bronze, depending on the fitting
Sealing element EPDM
Operating pressure 300 psi max
Temperature 0°F to 250°F
Listings ASME B16.51, NSF/ANSI 61 and 372, IAPMO Z1117, ASTM F3226
Tube ASTM B88 Type K, L or M copper
UPC 691514206851
Shipping Weight 0.827 lb
Dimensions 3.177 x 4.358 x 3.177 in (L x W x H)
