20628 3"x3" - (P-P) - 90 Deg Elbow, ProPress®
- Part #
- 20628
- UPC
- 691514206288
$368.01
Available · ships in 1–2 business days
Free shipping to the contiguous US. No minimum.
Delivery estimate
- Order
- Ships
- Arrives
Estimate for ground shipping within the contiguous US.
- Size
- 3"
- Connection
- P x P
- 30-day returnsWithin 30 days, in the original packaging
- Help from real peopleCall or email us before or after you order
- Secure checkoutCard details never touch our servers
Product details

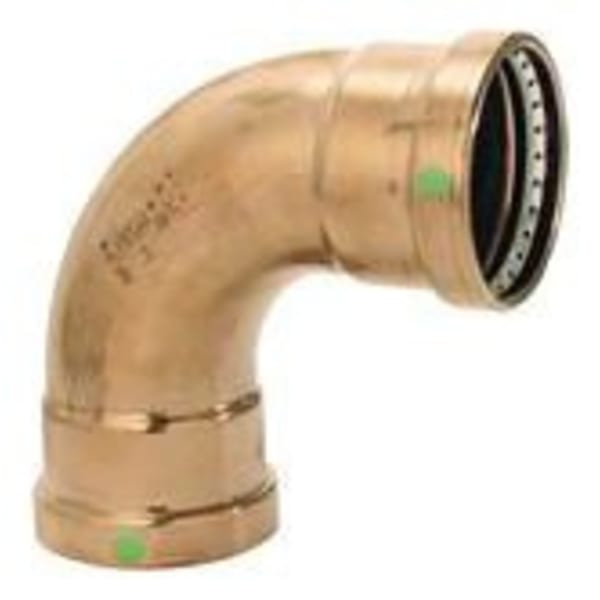

20628 — 3"x3" - (P-P) - 90 Deg Elbow, ProPress®.
Copper press fittings make a permanent joint on copper tube in seconds with a press tool: no flame, no solder, and they work on wet lines. Use the jaw profile the fitting maker specifies.
Specifications
| Part Number | 20628 |
|---|---|
| System | ProPress |
| Size | 3" |
| Type | 90 Deg Elbow |
| Connections | P x P |
| Material | Copper (UNS C12200) or Zero Lead silicon bronze, depending on the fitting |
| Sealing element | EPDM |
| Operating pressure | 300 psi max |
| Temperature | 0°F to 250°F |
| Listings | ASME B16.51, NSF/ANSI 61 and 372, IAPMO Z1117, ASTM F3226 |
| Tube | ASTM B88 Type K, L or M copper |
| UPC | 691514206288 |
| Shipping Weight | 5.2 lb |
| Dimensions | 3.681 x 7.571 x 7.571 in (L x W x H) |
