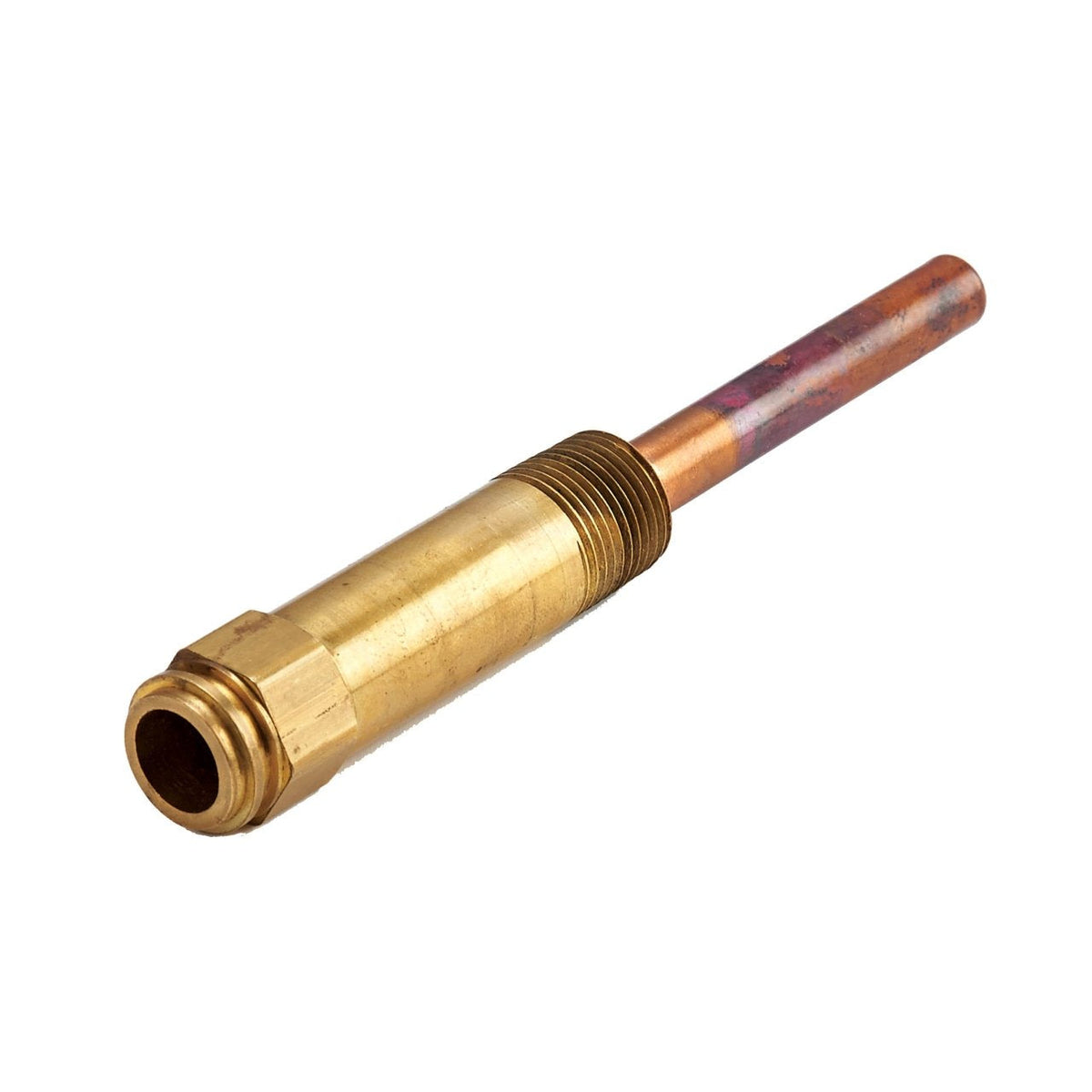

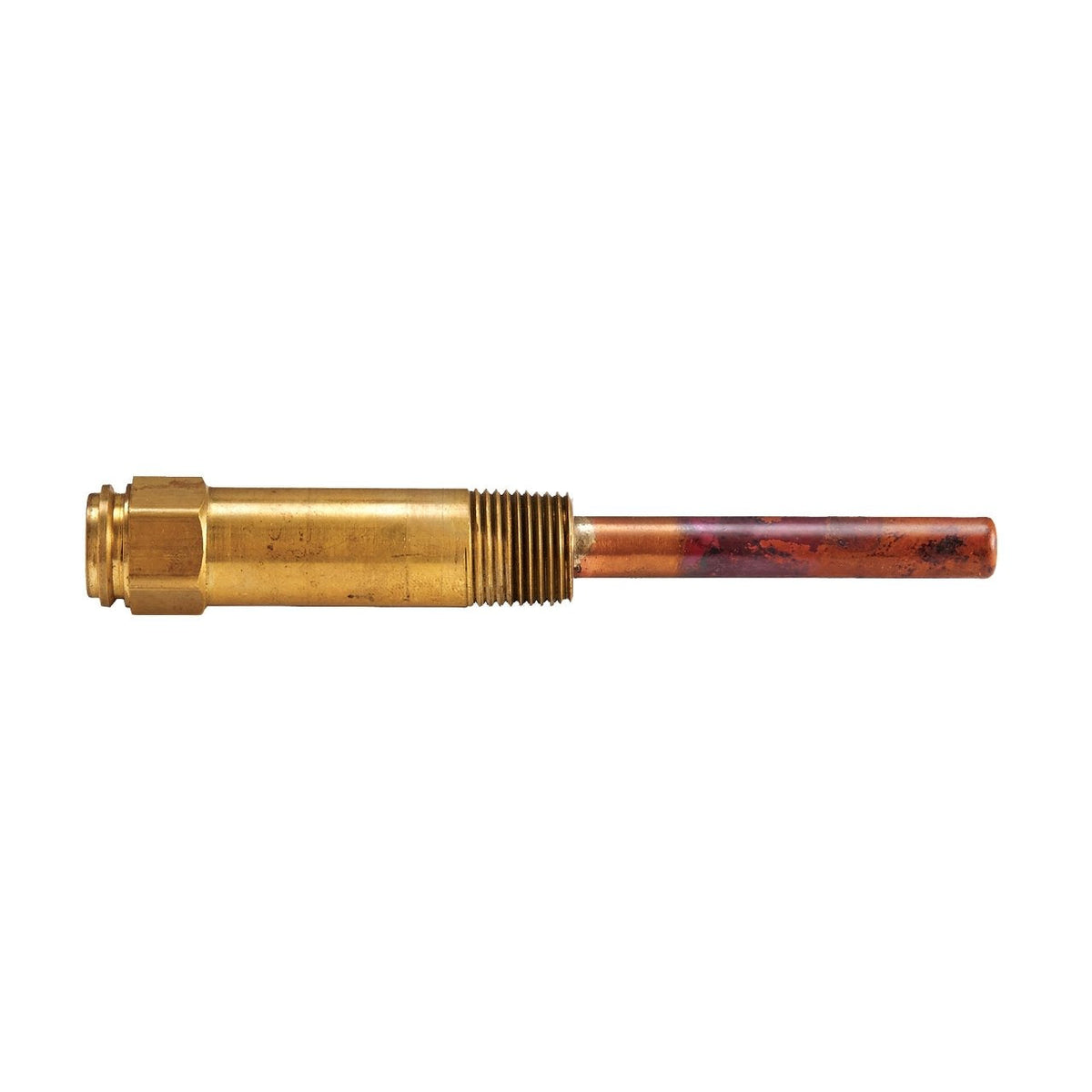

123869A/U Copper Well Assembly, 1/2 in NPT, 3 in Insertion, 1-1/2 in Insulation
123869A/U Copper Well Assembly, 1/2 in NPT, 3 in Insertion, 1-1/2 in Insulation

123869A/U Copper Well Assembly, 1/2 in NPT, 3 in Insertion, 1-1/2 in Insulation

Part #
123869A/U
UPC
085267005883
$53.70

Available · ships in 1–2 business days

Free shipping to the contiguous US. No minimum.

Size
1/2 in - 14
Material
Copper (Cu)
Connection
NPT

Full specifications

Gas, electrical and venting work should be done by a licensed professional.

  • 30-day returnsWithin 30 days, in the original packaging
  • Help from real peopleCall or email us before or after you order
  • Secure checkoutCard details never touch our servers
Need help matching a part?Call +1 (219) 319-0174 · Mon–Fri, 8 am – 5 pm ET

Product details

123869A/U — Copper Well Assembly, 1/2 in NPT, 3 in Insertion, 1-1/2 in Insulation.

Aquastats, switching relays, transformers, contactors, sensors and switches that tie thermostats, boilers and pumps together.

Specifications

Part Number 123869A/U
Application Immersion wells used with Aquastat® to hold the temperature sensing bulb in the controlled medium and prevents leakage
For Use With Aquastat Controllers
Material Copper (Cu)
Operating Pressure (Max) 255 psi @ 300 °F, 1758 kPa @ 149 °C
Bulb Diameter 3/8 in
Connection Size 1/2 in - 14
Connection Type NPT
Well Spud Size 1/2 in, 13 mm
Element Insertion Length 3 in
Insulation Depth 1-1/2 in
UPC 085267005883
Country of Origin MX
Product Features Functional replacement for 121371A without clamp

Ratings & details

  • Functional replacement for 121371A without clamp
