121371M/U Copper Well Assembly, 3/4 in NPT, 3 in Insertion, 3 in Insulation
- Part #
- 121371M/U
- UPC
- 085267005494
$71.90
Available · ships in 1–2 business days
Free shipping to the contiguous US. No minimum.
Delivery estimate
- Order
- Ships
- Arrives
Estimate for ground shipping within the contiguous US.
- Size
- 3/4 in - 14
- Material
- Copper (Cu)
- Connection
- NPT
Full specifications 1 manufacturer document
Gas, electrical and venting work should be done by a licensed professional.
- 30-day returnsWithin 30 days, in the original packaging
- Help from real peopleCall or email us before or after you order
- Secure checkoutCard details never touch our servers
Product details

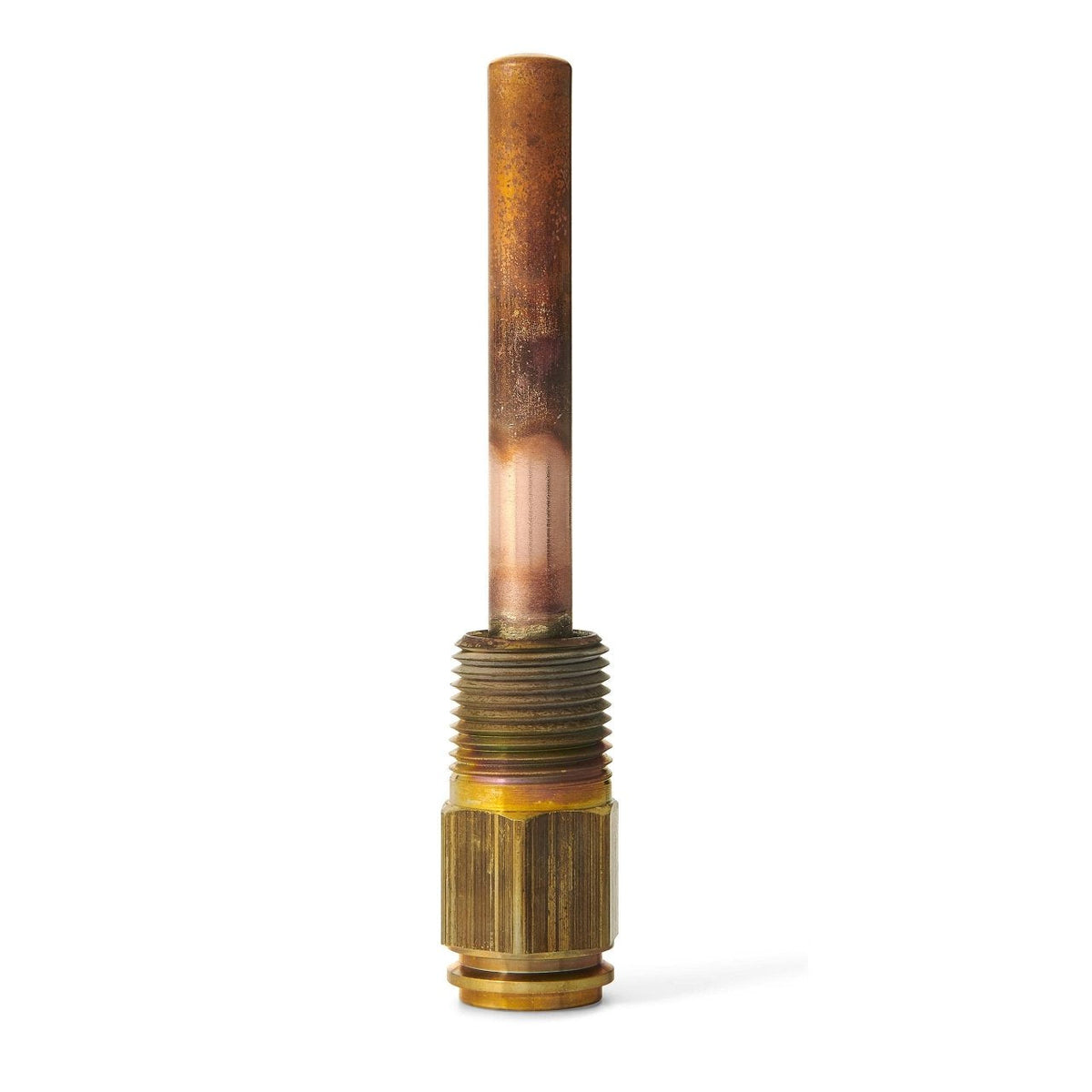

121371M/U — Copper Well Assembly, 3/4 in NPT, 3 in Insertion, 3 in Insulation.
Aquastats, switching relays, transformers, contactors, sensors and switches that tie thermostats, boilers and pumps together.
Specifications
| Part Number | 121371M/U |
|---|---|
| Application | Immersion wells used with Aquastat® to hold the temperature sensing bulb in the controlled medium and prevents leakage |
| For Use With | Aquastat Controllers |
| Includes | 121371 Mounting Clamp |
| Material | Copper (Cu) |
| Operating Pressure (Max) | 255 psi @ 300 °F, 1758 kPa @ 149 °C |
| Bulb Diameter | 3/8 in |
| Capillary Diameter | 5/64 in |
| Connection Size | 3/4 in - 14 |
| Connection Type | NPT |
| Well Spud Size | 3/4 in, 19 mm |
| Element Insertion Length | 3 in |
| Insulation Depth | 3 in |
| Product Length | 6 in |
| UPC | 085267005494 |
| Country of Origin | MX |
