119 Gallon Steel Storage Tank
- Part #
- SAN-119GLBK
- Type
- Storage Tanks
$4,646.43
Available · ships in 1–2 business days
Ships by truck · free freight delivery. The carrier calls you to schedule delivery.
Delivery estimate
- Order
- Ships
- Arrives
Estimate for ground shipping within the contiguous US; freight delivery is scheduled by the carrier.
Gas, electrical and venting work should be done by a licensed professional.
- 30-day returnsWithin 30 days, in the original packaging
- Help from real peopleCall or email us before or after you order
- Secure checkoutCard details never touch our servers
Product details

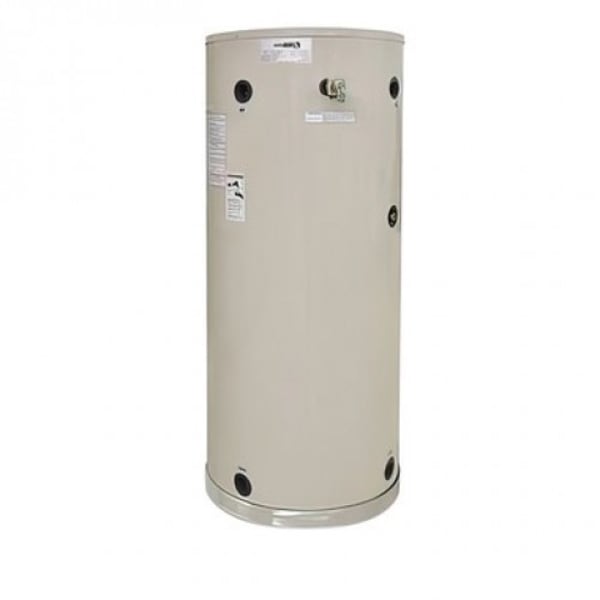

SAN-119GLBK — 119 Gallon Steel Storage Tank.

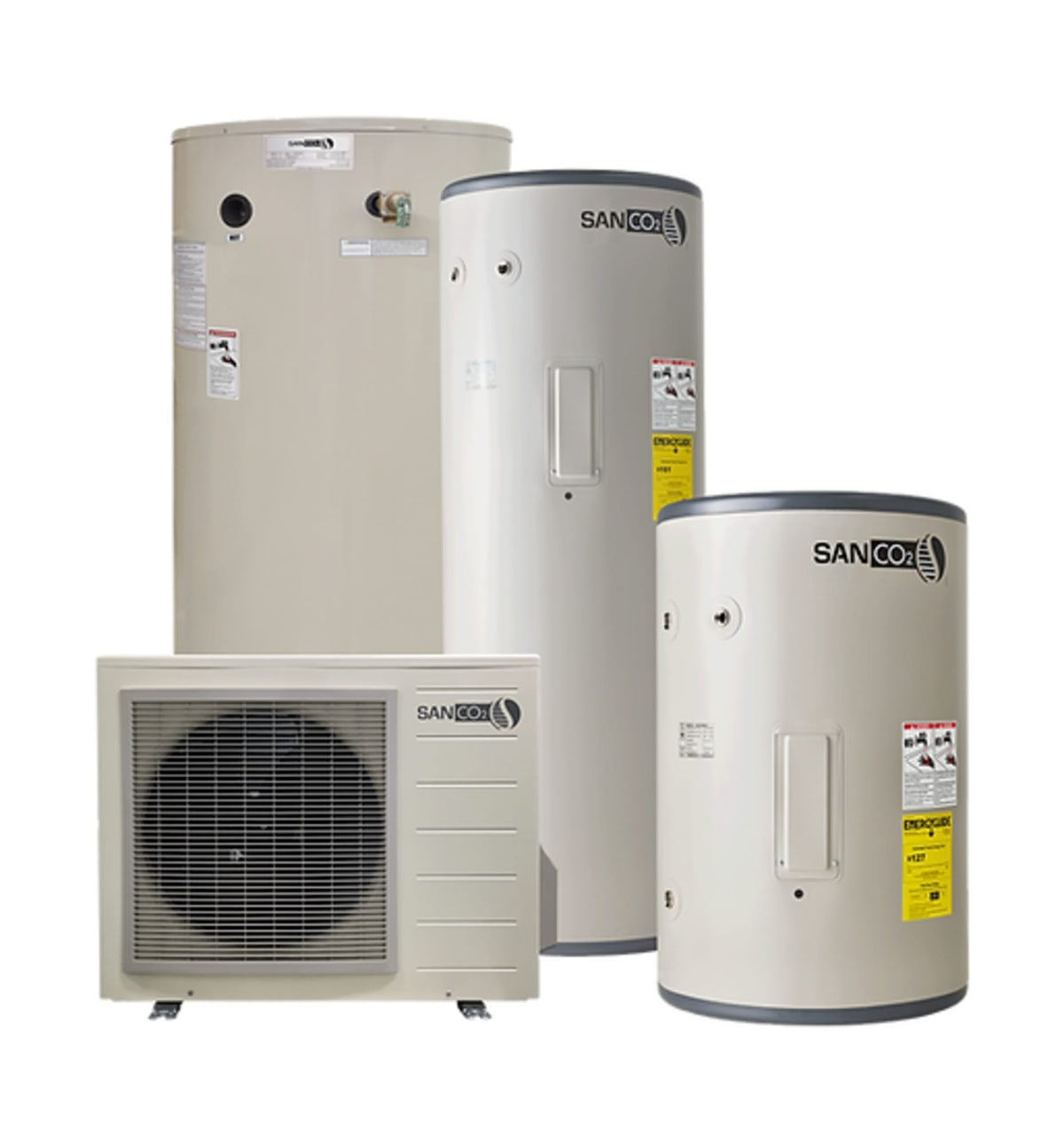

Indirect-fired water heaters and storage tanks heated by a boiler loop, plus plate heat exchangers for separating systems.
Specifications
| Part Number | SAN-119GLBK |
|---|---|
| Nominal volume | 119 gal |
| Diameter | 28 in. |
| Height | 63-3/8 in. |
| Cold water inlet / hot water outlet | 1-1/2 in. female NPT |
| Heat pump supply / return | 3/4 in. female NPT |
| Uniform Energy Factor (system) | 3.40 |
| First hour rating (system) | 135 gal |
| Standby loss | 107 Btu/h at 67°F ambient |
| Tank weight | 345 lb |
| Manufacturer's tank warranty | 10 years |
