119 Gal Hot Water Maker Sgl Wall
- Part #
- SSU-119N
- Type
- Boilers
$3,717.56
Available · ships in 1–2 business days
Ships by truck · free freight delivery. The carrier calls you to schedule delivery.
Delivery estimate
- Order
- Ships
- Arrives
Estimate for ground shipping within the contiguous US; freight delivery is scheduled by the carrier.
Gas, electrical and venting work should be done by a licensed professional.
- 30-day returnsWithin 30 days, in the original packaging
- Help from real peopleCall or email us before or after you order
- Secure checkoutCard details never touch our servers
Product details

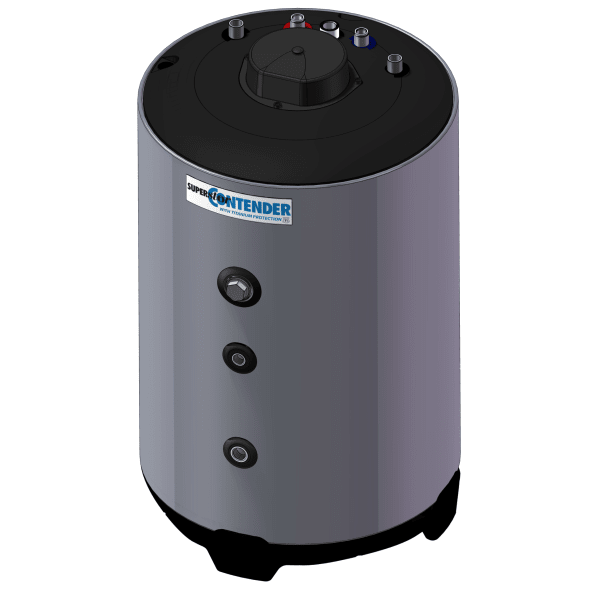

SSU-119N — 119 Gal Hot Water Maker Sgl Wall.
Condensing, combi and cast iron boilers for hydronic heating, many with domestic hot water built in. Size from a heat-loss calculation, not the old boiler's rating.
Specifications
| Part Number | SSU-119N |
|---|---|
| Capacity | 119 gallons |
| First hour rating, 180°F boiler water | 423 gal at 140°F; 564 gal at 115°F |
| First hour rating, 200°F boiler water | 474 gal at 140°F; 645 gal at 115°F |
| Recommended boiler size | 269,000 BTU/h (180°F boiler water); 301,000 BTU/h (200°F) |
| Recommended boiler flow rate | 14 GPM |
| Heat exchanger pressure drop | 11.3 ft |
| Heat exchanger connections | 1" NPT |
| Domestic connections | 1-1/2" NPT |
| Working / test pressure | 150 PSI / 300 PSI |
| Dimensions | 27" diameter x 74" height |
| Shipping Weight | 212 lb |
| Certifications | ETL design certified to UL 174; NSF 5 listed; lead free per the Safe Drinking Water Act, Section 1417 |
Ratings & details
- Stainless steel control well
- Brass piping adapters
- Control well
